Product > Projectors > High Brightness Projector > Ricoh PJ WXL6280
Video Projector For Presentation and Meeting

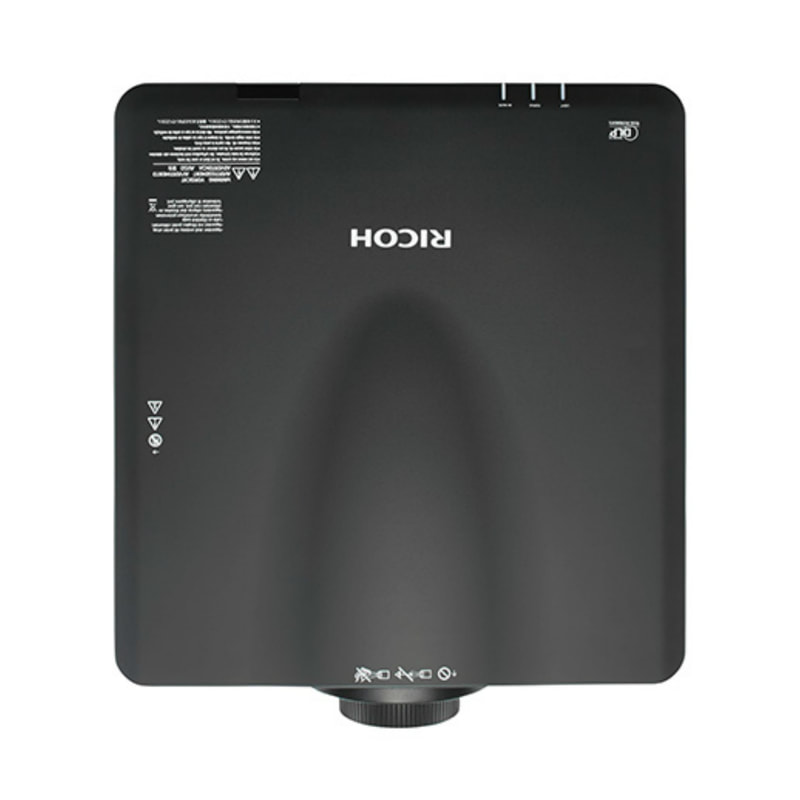

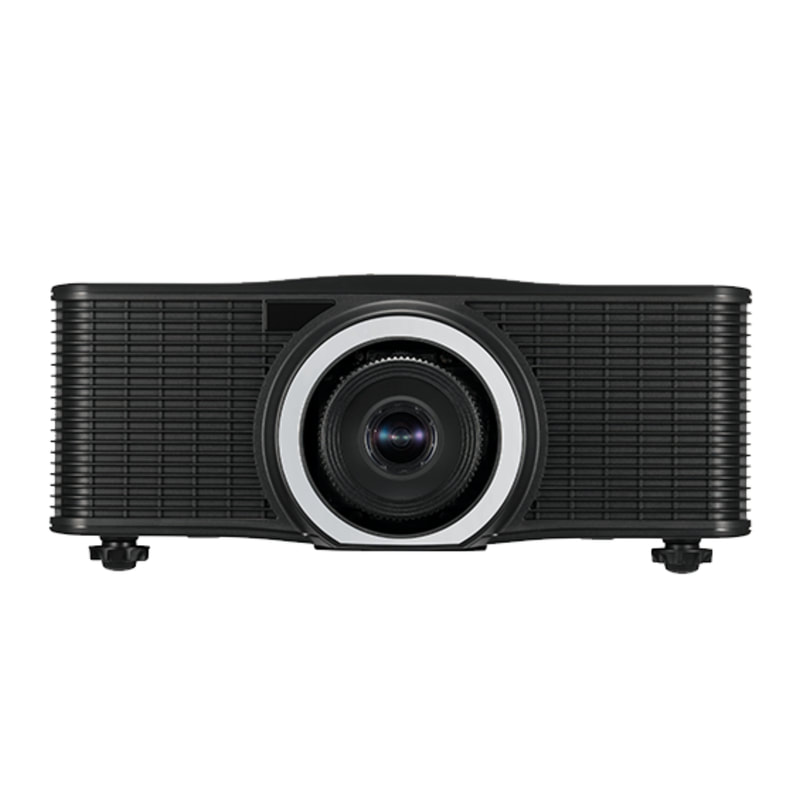

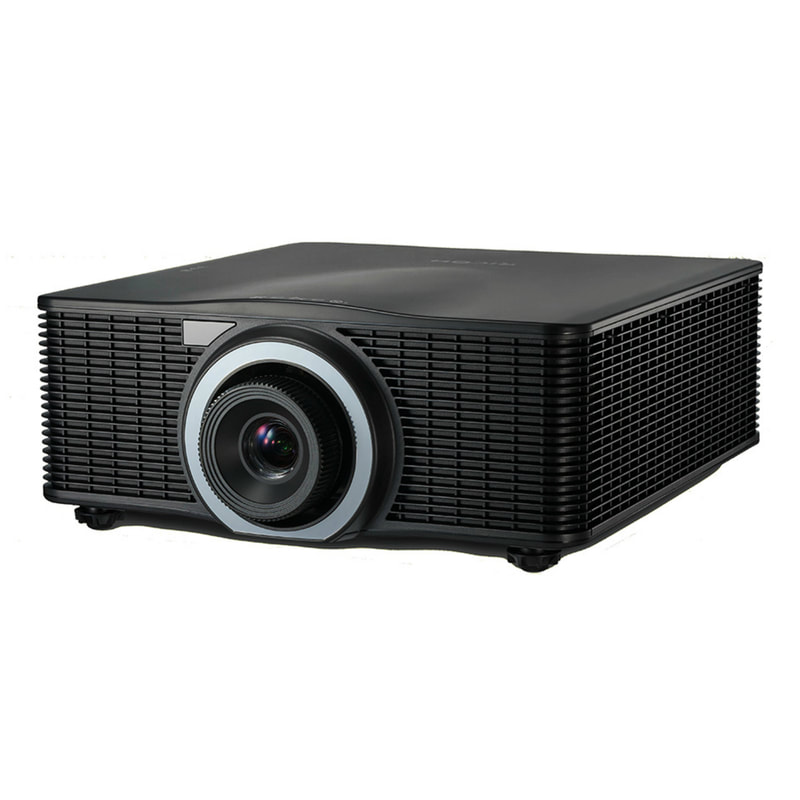

Ricoh PJ WXL6280 Projector
Features and Benefits
Video Projector For Presentation and Meeting Ricoh PJ WXL6280 is a typical 20,000 hours operation without maintenance allows installation in difficult access areas. Vertical and horizontal keystone adjustment allows installation at any projection angle, even from diagonal position. You can project onto screens from 50 to 300 inches, at distances up to 37.35 metres, for maximum flexibility in presentation venues.
- WXGA (1280 x 800 pixels) resolution powered by laser projects vivid images for audiences
- 360° installation ability allows projection of images onto walls, ceiling or floor with a choice of 5 lenses
- Connectivity options include HDBase T for single cable connection of power, video, audio and control functions
- Option of portrait mode projection is ideal for both digital signage and digital mapping applications
- Feature rich spec includes PIP/PBP display to toggle between two image sources at once
Specifications
- General
- Ecology
|
Projection system |
Single chip DLP |
|
Resolution |
PJ WUL6280: 1,920 x 1,200 , PJ WXL6280: 1,280 x 800 |
|
Panel |
Aspect ratio: 16:10, PJ WUL6280: 0.67 inch , PJ WXL6280: 0.65 inch |
|
Brightness |
6,000 lumen |
|
Contrast ratio |
PJ WUL6280: 1,200:1 (10,000:1), PJ WXL6280: 1,100:1 (10,000:1) |
|
Projection screen size |
Depends on lens |
|
Zoom ratio |
Depends on lens |
|
Zoom |
Motorized |
|
Focus |
Motorized |
|
Connection terminal |
D-SUB 9pin x 1 (PC Control), HDMI x 1, RJ-45 x 1 (LAN), DVI-D x 1, HDBaseT x 1, Computer In x 1, Monitor Out x 1, USB Type A x 1, YPBPR x 1, Wired in/out (3.5 mm phone jack) x 1, Service x 1 |
|
Wired LAN |
RJ-45 x 1 (10BASE-T/100BASE-TX/1000BASE-T) |
|
Wireless LAN |
LAN IEEE 802.11b/g/n compliant |
|
Primary features |
Closed captioning, Security bar, Kensington lock, 360 degrees tilt-free , Portrait mode , Picture in picture , Geometric correction |
|
Network features |
PJ Link, Crestron, AMX |
|
Built-in speaker |
N/A |
|
Dimensions (W x D x H) |
484 x 509 x 185 mm |
|
Weight |
18 kg |
|
Power source |
100 - 240 V, 50/60 Hz |
|
Sound power level (full system) |
37 dB |
|
Power consumption - Operating power |
560 W |
|
Power consumption - Eco Mode |
340 W |
|
Power consumption - Stand-by mode |
0.5 W |
|
Operating temperature |
5°C - 40°C |
|
Operating humidity |
10% - 85% |
|
Storage conditions - Temperature |
-10°C - 60°C |
|
Storage conditions - Humidity |
5% - 90% |
Download Brochure Here!
