Thick Document Plastic Card Scanner A4 Size

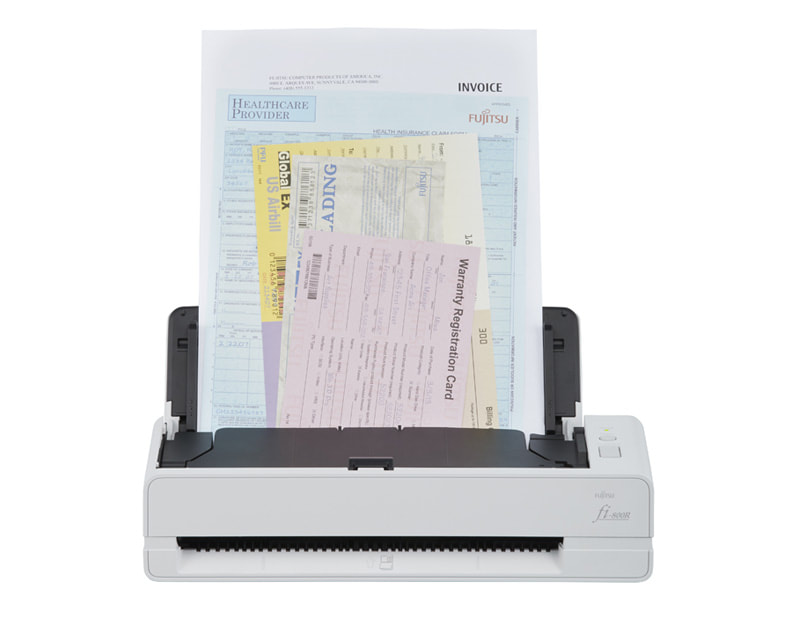

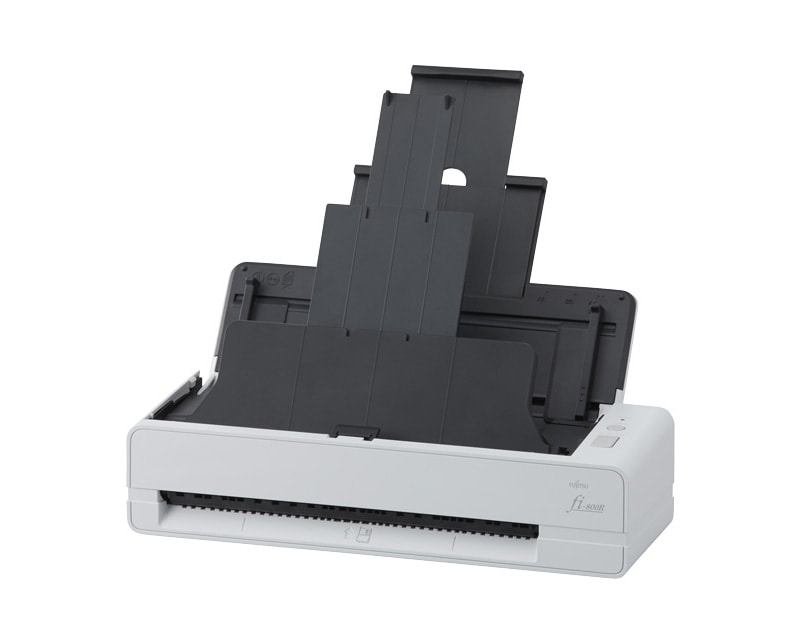

Fujitsu Ricoh Image Scanner fi-800R
Features and Benefits
The fi-800R achieves scanning speeds of 40 ppm/80 ipm with ADF and 3.5 seconds per sheet with Manual Feed (A4 portrait, color, 200/300 dpi), and is capable of scanning up to as many as 4,500 sheets a day.
With its compact design, the scanner is ideal to use when space is limited, enabling better customer onboarding in spaces like reception desks and service counters. Its unique technologies assist both booklet scanning and continuous ADF document scanning with stable feeding, and reduce operator workload allowing users to provide better customer service.
With its compact design, the scanner is ideal to use when space is limited, enabling better customer onboarding in spaces like reception desks and service counters. Its unique technologies assist both booklet scanning and continuous ADF document scanning with stable feeding, and reduce operator workload allowing users to provide better customer service.
- Return Scan for passports and ID cards scanning
- U-turn Scan with Automatic Stacking Technology for comfortable continuous scanning
- Automatic Skew Correction and Active Separation structure to ensure reliable feeding
- Comes with Paper Stream IP and Paper Stream Capture providing advanced image processing functions
- Paper Stream Click Scan also available for ad-hoc use to scan in 3 simple steps
- PaperStream Capture Pro software available as a premium option
Specification
- General
- Brochure
- Video
|
Product Name |
fi-800R |
|
Scanner Type |
ADF (Automatic Document Feeder) / Manual Feed, Duplex |
|
Scanning Speed*1 (A4 Landscape) (Color*2/Grayscale*2/Monochrome*3) |
ADF Simplex: 40 ppm (200/300 dpi) Duplex: 80 ipm (200/300 dpi) Manual Feed 3.5 seconds (200/300 dpi) |
|
Image Sensor Type |
CIS x 2 (front x 1, back x 1) |
|
Light Source |
RGB LED (front x 1, back x 1) |
|
Optical Resolution |
600 dpi |
|
Output Resolution*4 (Color / Grayscale / Monochrome) |
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5 |
|
Output Format |
Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit |
|
Background Colors |
White |
|
Document Size |
Maximum 215.9 x 355.6 mm (8.5 x 14 in.) Minimum 50.8 x 50.8 mm (2 x 2 in.) Long Page Scanning 5,588 mm (220 in.) |
|
Paper Weight (Thickness) |
ADF Paper: 40 to 127 g/m² (11 to 34 lb) For A6 or smaller: 40 to 209 g/m² (11 to 56 lb) For A8 or smaller: 127 to 209 g/m² (34 to 56 lb) Manual Feed Paper: 20 to 413 g/m² (5.4 to 110 lb) Plastic card: 1.4mm or less Booklet: 5mm or less |
|
ADF Capacity |
20 sheets (A4 80 g/m² or Letter 20 lb) 30 sheets (A4 52 g/m² or Letter 14 lb) |
|
Expected Daily Volume |
4,500 sheets |
|
Multifeed Detection |
Overlap detection (Ultrasonic sensor) |
|
Interface |
USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 |
|
Power Requirements |
AC 100 to 240 V ±10 % |
|
Interface |
USB 3.0 / USB 2.0 / USB 1.1 |
|
Power Requirements |
AC 100 to 240 V ±10 % |
|
Power Consumption |
Operating Mode 19 W or less Sleep Mode 1.7 W or less Auto Standby (Off) Mode 0.15 W or less |
|
Operating Environment |
Temperature 5 to 35 °C (41 to 95 °F) Relative Humidity 20 to 80% (Non-condensing) |
|
Environmental Compliance |
ENERGY STAR®, RoHS |
|
Dimensions*9 (W x D x H) |
296 x 105 x 83 mm (11.7 x 4.1 x 3.3 in.) |
|
Weight |
2.0 kg (4.4 lb) |
|
Supported Operating System |
Windows® 11*10, Windows® 10*10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008*11, macOS, Linux (Ubuntu) |
|
Included Software / Drivers |
Paper Stream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*12, Image Scanner Driver for macOS (ICA)*12*13 , Image Scanner Driver for Linux (SANE)*12*13, Paper Stream Capture, Paper Stream Click Scan*13, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for Scan Snap™*13, Scanner Central Admin |
|
Image Processing Functions |
Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal |
|
Included Items |
AC cable, AC adapter, USB cable, Setup DVD-ROM |
