Pantum CM230ADN A3 Color Laser Multifunction Printer

Elevate office productivity with vibrant A3 full-color printing, an intuitive 4.3-inch touch display, 100-page RADF duplex scanning, and ultra-reliable throughput brought to you by Fotostat Seri Murni Sdn Bhd.

1. Core Features & Production Capabilities

25 PPM COLOR / MONO

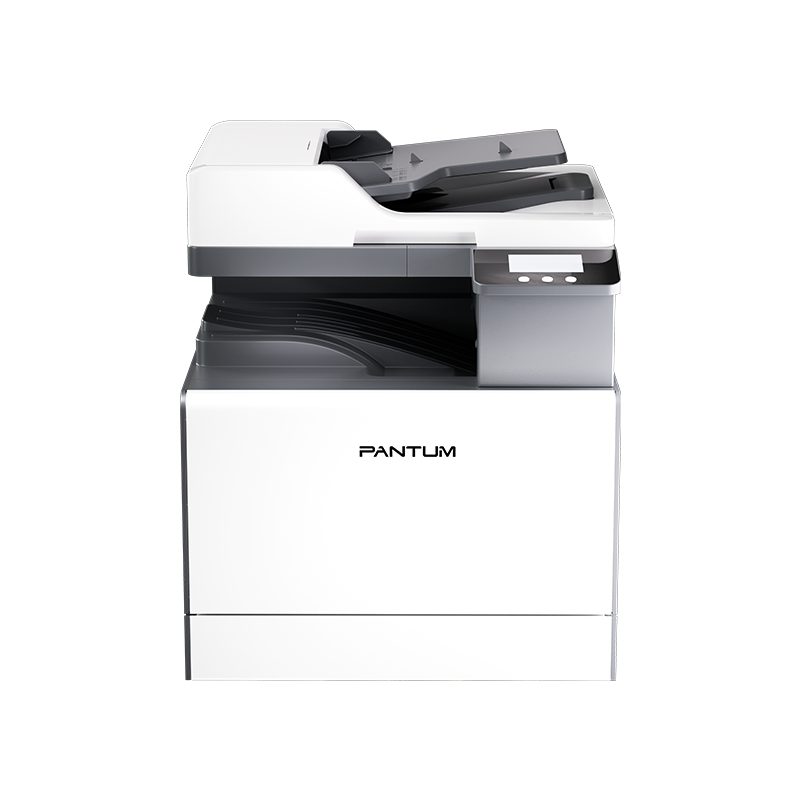

Pantum CM230ADN View 1

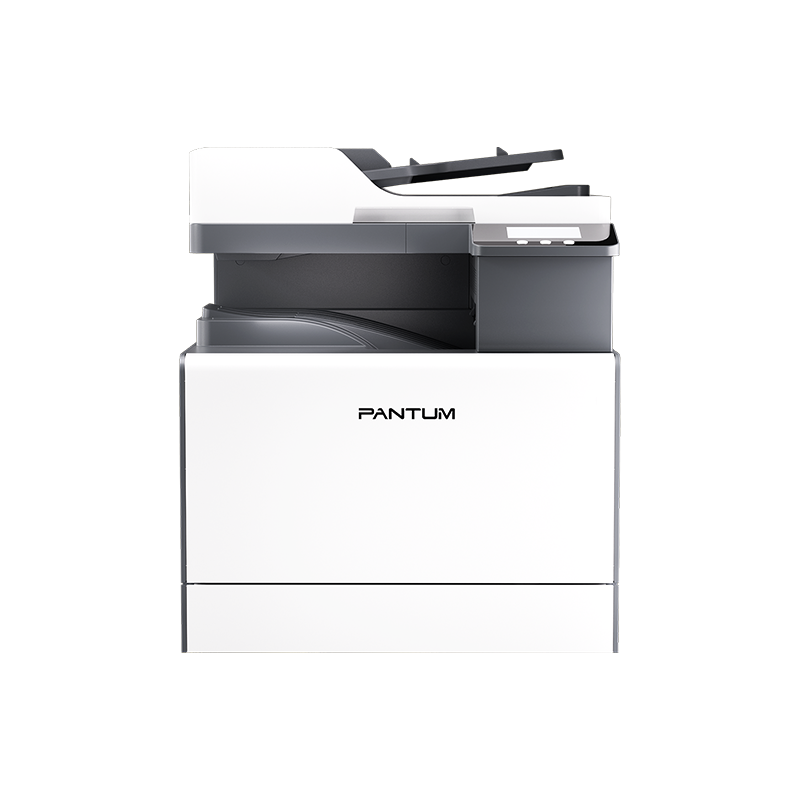

Pantum CM230ADN View 2

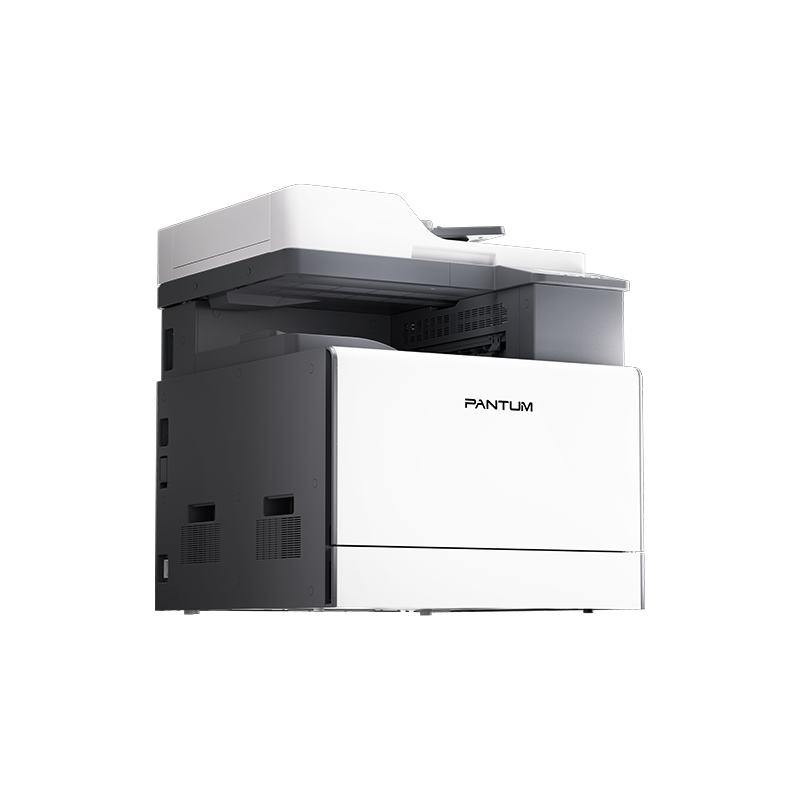

Pantum CM230ADN View 3

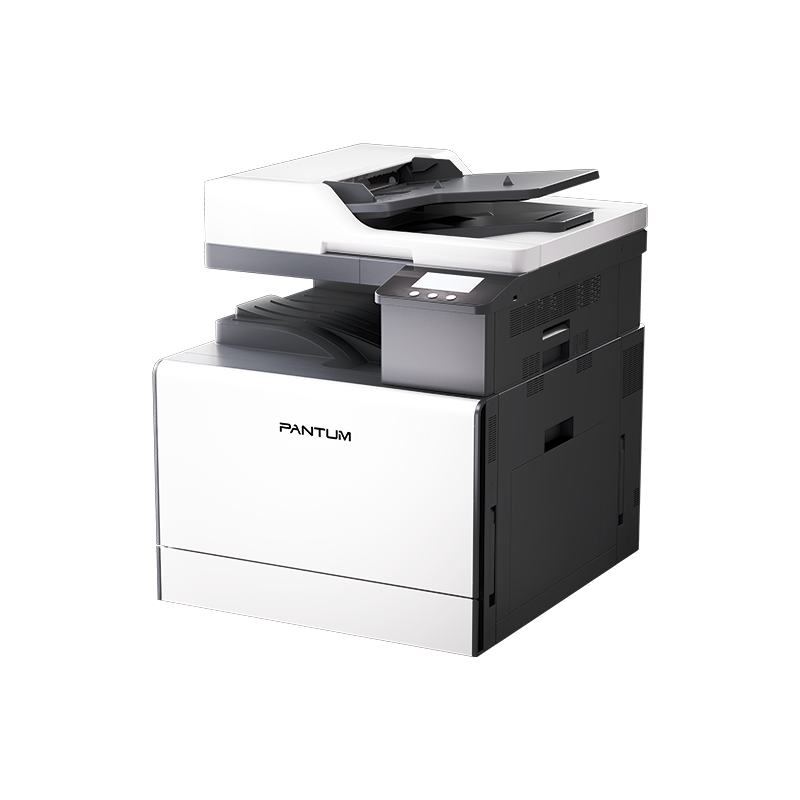

Pantum CM230ADN View 4

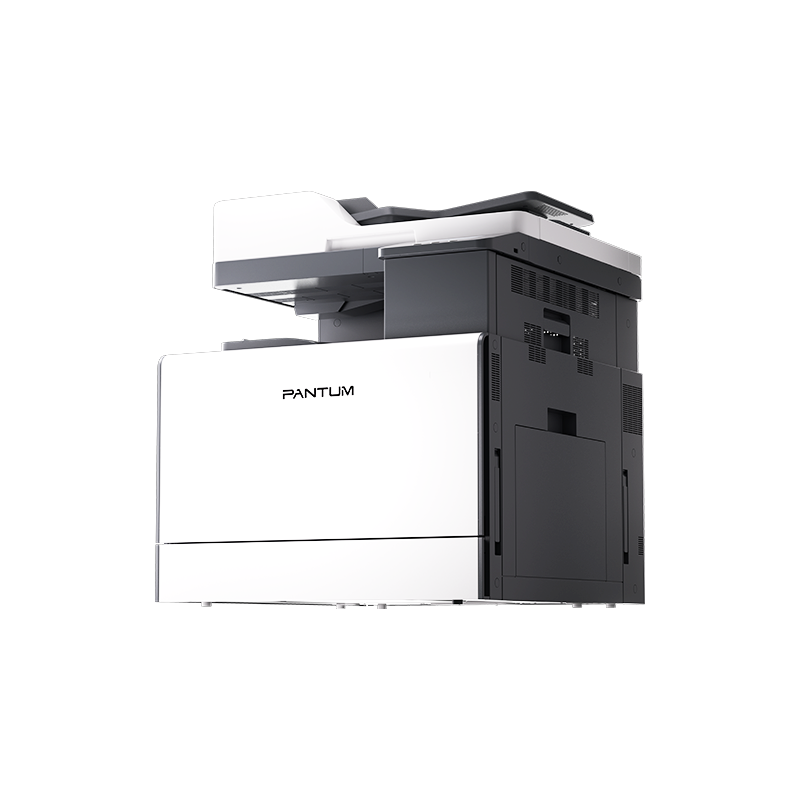

Pantum CM230ADN View 5
  • 25PPM Full-Color Engine: Produce vivid marketing materials and crisp A3 reports at equal mono and color speeds up to 25 pages per minute.
  • 4.3-Inch Smart Color Touchscreen: Intuitive navigation with customizable shortcut panels to streamline everyday corporate workflows.
  • Standard 100-Page RADF Feeder: Automated double-sided scanning speeds up multi-page digitization projects with zero user intervention.
  • Scalable 1,450-Sheet Input: Expand paper tray configurations with optional 550-sheet cassettes to sustain heavy daily print routines.

2. Pantum CM230ADN Product Specifications Matrix

Specification Category Technical Details & Capabilities
Print & Copy Speeds A4: 25 ppm (Mono/Color) | Duplex Print Speed: 18 ipm | First Print Out Time: Mono < 7.0s, Color < 9.4s
Processor & Memory High-performance 1.0 GHz Processor | 2GB System Memory + 32GB EMMC Flash Storage
Scanning Mechanism Flatbed + 100-page RADF (Reversing Automatic Document Feeder) | Scan to PC, Email, SMB, FTP, USB
Paper Capacity & Media 250-Sheet Standard Tray + 100-Sheet Multipurpose Tray (Expandable up to 1,450 sheets) | Weights: 60–216 g/m²
Duty Cycle & Volume Maximum Monthly Duty Cycle: 60,000 pages | Recommended Monthly Volume: 4,000 pages
Connectivity & Security USB 3.0 | Gigabit Ethernet (10/100/1000Base-Tx) | Optional 2.4G/5G Wi-Fi | Smart Confidential Print
Consumables System High Yield Toner: CTL-2300HK (15k pages Black) / CTL-2300HY/M/C (12k pages Color) | Drum: CDL-2300 (60k pages)

3. Architectural Advantages of Pantum A3 Color Engineering

1.0 GHz & 2GB RAM Core Architecture

Powered by a quad-core class processor and generous 2GB RAM buffer, processing dense color graphics and high-resolution CAD files without memory bottlenecking.

Heavy Metal Internal Chassis

Built on an industrial-grade structural frame that suppresses operational noise under 54dB while ensuring a long lifespan up to 60,000 monthly pages.

Versatile 216g/m² Heavy Media Support

The 100-sheet multipurpose bypass tray handles various stock types from standard 60gsm office paper up to 216gsm heavy cardstock, envelopes, and labels.

High-Speed USB 3.0 & Gigabit Network

Instant connectivity options allow rapid direct-from-USB flash drive printing as well as secure scan-to-network SMB, FTP, and corporate email routing.

4. Overcoming Office & Administrative Bottlenecks

Excessive Color Printing Expenses

Outsourced marketing printing creates huge recurring operational costs. High-yield 15k black and 12k color toners dramatically drive down cost per page.

Sluggish Multi-Page Scanning

Manual scanning of double-sided contracts wastes valuable staff hours. The 100-page RADF feeder automates double-sided scanning at up to 30 ppm.

Frequent Paper Replenishment Delays

Low-capacity printers require continuous refilling during print runs. Expandable paper capacity up to 1,450 sheets keeps high-volume workflows moving.

Unsecured Corporate Confidentiality

Unattended sensitive documents left in output trays pose privacy risks. Password-protected secure printing holds files until PIN release at the panel.

5. Commercial Applications & Industry Solutions

Architectural & Engineering Drawings

Print high-precision A3 color blueprints, site plans, and schematic diagrams with sharp line resolution and clear color coding for field presentation.

Corporate & Marketing Departments

Produce professional in-house marketing collateral, sales presentations, promotional posters, and folded A4 booklet brochures on demand.

Financial & Accounting Services

Handle wide A3 financial ledger sheets, multi-column spreadsheets, audit trail documentation, and client tax filings with complete readability.

Educational Institutions & Medical Hubs

Rapidly digitize multi-page student records, administrative forms, and patient medical charts using the high-speed 100-sheet RADF scanner.

6. Why Choose Fotostat Seri Murni Sdn Bhd as Your Authorised Partner

  • 30+ Years of Industry Leadership: Trusted office equipment solution partner in Petaling Jaya and Klang Valley since established.
  • Official Factory Warranty & Local Technicians: Direct-from-manufacturer coverage backed by trained field engineers for rapid maintenance.
  • Guaranteed Genuine Supplies Stock: Ready inventory of original Pantum CTL-2300 high-yield toners, drums, and spare parts.
  • Dedicated Physical Showroom in Ara Damansara: Visit our setup in Petaling Jaya to test machine performance, color output, and touchscreen operation before purchase.

7. Total Lifecycle Management & Maintenance Standards

Separate Toner & Drum Design

Replenish toner cartridges independently from long-life 60,000-page imaging drums, reducing waste and minimizing lifetime replacement costs.

ENERGY STAR 3.2 Compliance

Features low energy sleep modes (under 1W) and eco-friendly auto-power off, aligning with corporate sustainability initiatives while lowering power bills.

8. Frequently Asked Questions (FAQs)

Q: What is the print and copy speed of the Pantum CM230ADN?

A: The Pantum CM230ADN delivers print and copy speeds up to 25 pages per minute (ppm) for both mono and full-color A4 documents, with an automatic duplex speed of 18 ipm.

Q: Does the Pantum CM230ADN support automatic double-sided scanning?

A: Yes, it is equipped with a standard 100-page RADF (Reversing Automatic Document Feeder) that automatically handles double-sided scanning and copying.

Q: What paper sizes and media weights can the Pantum CM230ADN support?

A: It supports media sizes up to A3 (11"x17") and paper weights ranging from standard 60gsm up to heavy 216gsm stock via the multipurpose bypass tray.

Q: Where can I test and purchase the Pantum CM230ADN printer in Selangor?

A: You can visit the Fotostat Seri Murni Sdn Bhd showroom at N-G-42, Ground Floor, Jalan PJU 1a/1, Ara Damansara, 47301 Petaling Jaya, Selangor, or WhatsApp us directly at 016-9225928.

Ready to Upgrade Your Office Printing Infrastructure?

Contact Fotostat Seri Murni Sdn Bhd for expert consultation, quotation, and live showroom demonstrations.
