Epson EB-L520U WUXGA 3LCD Laser Projector
EB-L520U is an accessible high-brightness laser display for all users, offering cutting-edge connectivity and superior display features.
Features and Benefit
The small, reasonably priced EB-L520U laser projector offers potent performance for corporate and educational applications. Get 5,200 lumens of white and colour brightness*2 for clear, vibrant visuals. Additionally, this powerful projector delivers WUXGA resolution. With its ground-breaking laser technology, it provides a laser light source that can last up to 20,000 hours*1 and operates without bulbs for essentially maintenance-free operation. Additionally, it has a 1.6x optical zoom. It also features flexible options for image enhancement to further sharpen image resolution to your tastes. It also enables split screen functionality of up to 4 screens, providing greater information sharing. Additionally, it works with the Epson Wireless Presentation System**, which makes connecting hassle-free for increased productivity.
- 5200 lumens of color and white brightness*2
- 20,000-hour*1 laser light source with no lamps
- WUXGA resolution
- 1.6x Optical Zoom
- Screen size of up to 500"
- Specifications
- Brochure
- Video
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Brightness: |
White Light Output (Normal / Extended): 5,200lm / 3,640lm Colour Light Output: 5,200lm Light Output (Center): 5,600lm* |
|
Connectivity: |

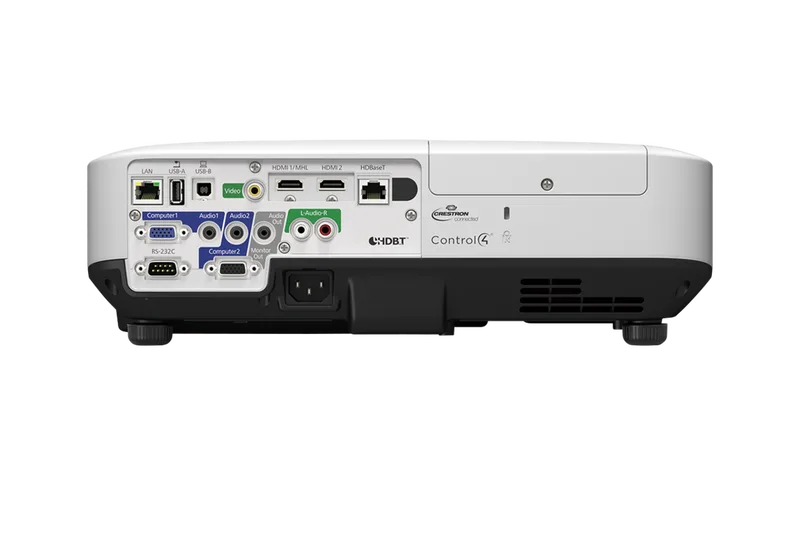

Network: Wired LAN RJ45 x 1 (100Mbps) Built-in Wireless: N/A Optional Wireless: ELPAP11 Analog RGB Input: D-Sub 15Pin: 2 Digital Input: HDMI: 2 (HDCP 2.3) HDBaseT: 1 (HDCP 2.3) Audio Input: Stereo Mini Jack: 2 Audio Output: Stereo Mini Jack: 1 Control I/O: RS-232C: D-Sub 9pin x 1 USB Input: USB Type A: 1 (For PC Free, Firmware Update and Copy OSD Settings) USB Type B: 1 (For mouse, K/B, control, firmware) Analog Video Output: D-Sub 15Pin: 1 Digital Video Output: N/A |
|
Screen Size (Projected Distance): |
Zoom : Wide: 50" - 500" [1.44 - 14.76 m] Zoom : Tele: 50” - 500” [2.35 - 23.84 m] |
|
Operating Temperature: |
Single Use: Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F> High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 40 °C <32 - 104 °F> 20% - 80% Humidity, No Condensation Multi-projection Use: Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F> High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 35 °C <32 - 95 °F> 20% - 80% Humidity, No Condensation |
|
Operating Altitude: |
Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft) |
|
Start-Up Period: |
Start-Up Period: 8 sec (Epson Logo); Warm-up Period: 30 sec Quick Start-Up: Less than 5 seconds (Display) |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Direct Power On/Off: |
Direct Power On/Off: Yes |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (D x W x H): 304 x 440 x 122 mm |
|
Power Supply Voltage: |
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz |
|
Wireless Specifications (Using Optional ELPAP11): |
Supported Speed for Each mode : Infrastructure: IEEE 802.11b (2.4GHz): 11 Mbps*3 IEEE 802.11g (2.4GHz): 54 Mbps*3 IEEE 802.11n (2.4GHz): 72.2 Mbps*3 IEEE 802.11a (5GHz): 54 Mbps*3 IEEE 802.11n (5GHz): 150.0 Mbps*3 IEEE 802.11ac (5GHz): 325Mbps*3 Access Point(Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps*3 IEEE 802.11n (2.4GHz): 72.2 Mbps*3 IEEE 802.11a (5GHz): 54 Mbps*3 IEEE 802.11n (5GHz): 150.0 Mbps*3 IEEE 802.11ac (5GHz): 325Mbps*3Supported Mode :Infrastructure, Access Point(Wi-Fi Direct) Supported Security Type: Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast Access Point(Wi-Fi Direct): WPA2-PSK(AES) |
|
Air Filter |
Type: Electrostatic Filter Maintenance Cycle*4: 20,000 hours (Normal) / 30,000 hours (Extended) |
|
Internal Speaker(s): |
Sound Output: 10W Monoaural |
|
Weight: |
Weight: Approx. 7.7kg |
|
Contrast Ratio: |
Contrast Ratio: 15,000:1 |
|
Fan Noise: |
Fan Noise (Normal / Eco): 31dB / 23dB |
|
Geometric Correction |
Vertical/Horizontal Keystone: ±30° / ±30° (Zoom: Centre) Auto Keystone: Yes Quick Corner: Yes |
|
Specifications of Main Parts: |
LCD: Size: 0.67" (C2 Fine) Resolution: WUXGA Aspect Ratio: 16:10 Lightsource: Type: Laser Diode Life*1: 20,000 hours (Normal) / 30,000 hours (Extended) Projection Lens: Type: Optical Zoom (Manual) / Focus (Manual) F-Number: 1.50 – 1.70 Focal Length: 20 – 31.8 mm Zoom Ratio: 1.0 - 1.60 Throw Ratio:1.35 – 2.20 (Wide - Tele) |
|
Power Supply Voltage: |
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz |
|
Power Consumption (220 - 240V): |
Laser Diode ON (Normal / Extended): 293 W / 223W Stand By: (Normal/Eco): 2.0W / 0.3W |
