Email Document From Scanner

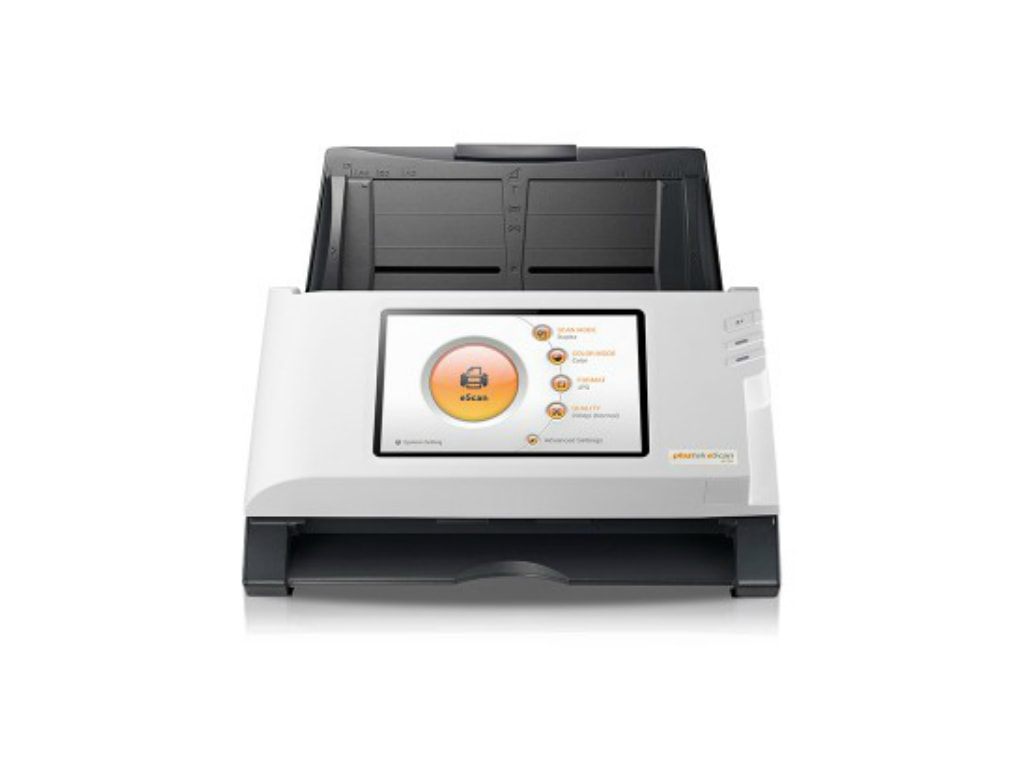

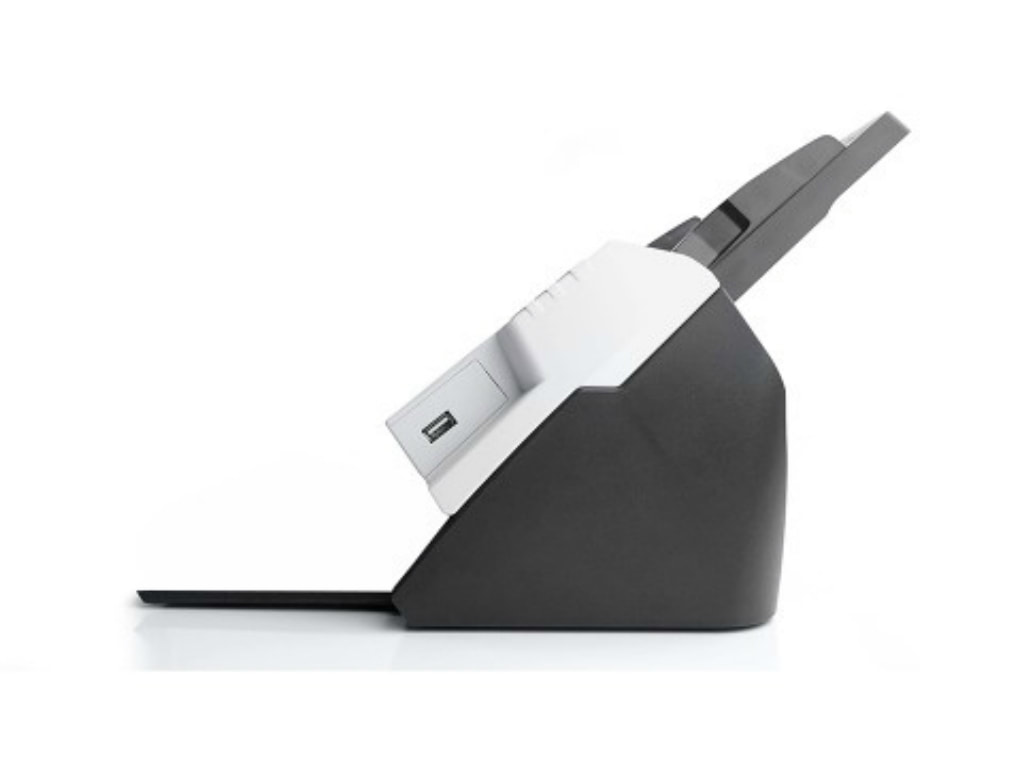

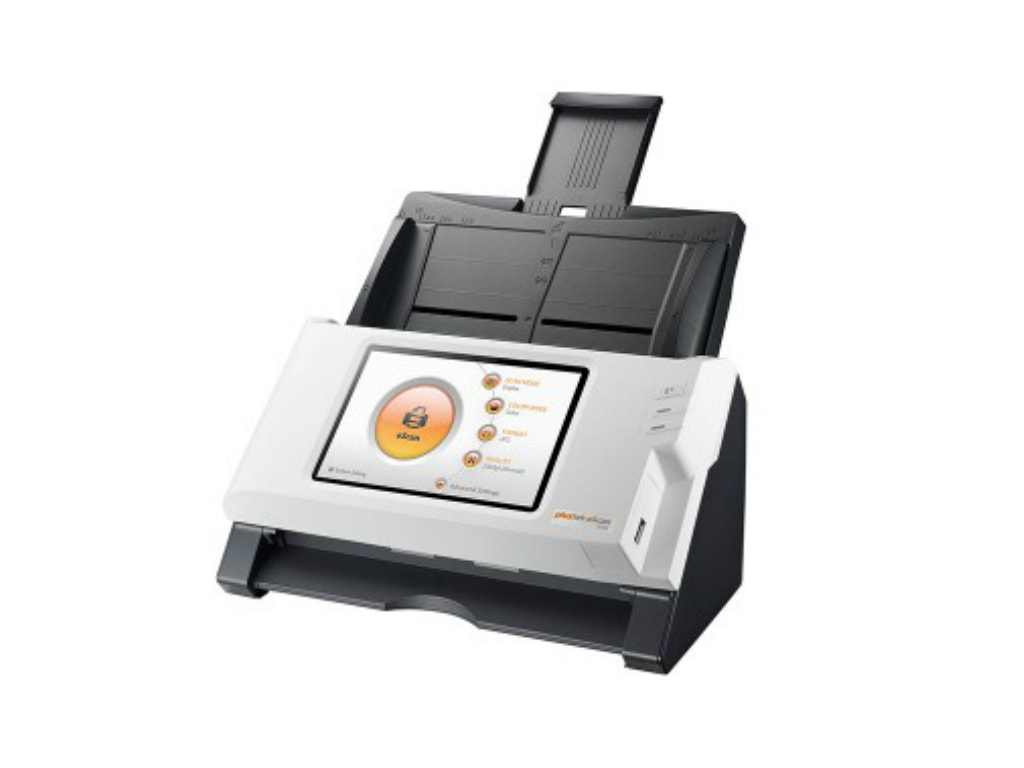

Plustek eScan A150 Scanner Email Without Computer
Features and Benefits
Plustek's eScan A150 allows end users to instantly power up the device for fast scanning. Its built-in 7" LCD touch screen is intuitive and offers a quick way to review or even crop targeted images, before delivering the final digitally captured data. People can send or save the final image in different file formats to multiple destinations such as: USB drive, network folder, mobile, e-mail or a variety of cloud service providers.
Specification
- General
|
Image Sensor |
CIS x 2 |
|
Light Source |
LED |
|
Optical Resolution |
600 dpi |
|
Hardware Resolution |
600 x 600 dpi |
|
ADF Capacity |
50 sheets (70 g/m², 18 Lbs) Note: Maximum ADF capacity varies, depending upon paper weight. |
|
Scanning Speed |
15 ppm/ 30 ipm (Grayscale mode, 200 dpi, A4 Portrait) 15 ppm/ 30 ipm (B&W mode, 200 dpi, A4 Portrait) 4 ppm/ 8 ipm (Color mode, 200 dpi, A4 Portrait) -------------------------------------------------- 17 ppm/ 34 ipm (Grayscale mode, 200 dpi, Letter, Portrait) 17 ppm/ 34 ipm (B&W mode, 200 dpi, Letter, Portrait) 4 ppm/ 8 ipm (Color mode, 200 dpi, Letter, Portrait) |
|
Scanning Area (W x L) |
Max. 216 x 356 mm (8.5" x 14") Min. 13.2 x 13.2 mm (0.52" x 0.52") |
|
Acceptable Paper Sizes (W x L) |
Max. 244 x 356 mm (9.6" x 14") Min. 50.8 x 50.8 mm (2" x 2") |
|
Acceptable Paper Weight (Thickness) |
40 to 157 g/m² (12 to 40 Lbs) |
|
Daily Duty Scan ( Sheets ) |
1,500 |
|
Roller Lifetime (Scans) |
300000 |
|
Pad Lifetime (Scans) |
50000 |
|
Power Supply |
24Vdc/1.67 A |
|
Network Functions |
Scan to Mobile Device Scan to FTP (Supports FTP/SFTP) Scan to USB Scan to PC Scan to Email Scan to Cloud |
|
Interface |
USB 2.0 (Host) x 1, RJ45 (network connection) x 1 |
|
Net Weight |
2.8 Kgs (6.17 Lbs) |
|
Dimensions (W x D x H) |
318 x 170 x 189 mm (12.53" x 6.69" x 7.45") |
|
Operation Panel |
CPU: RK3188 Cortex A9 Quad-core GPU @ 1.6GHz Memory Size: DDR3 1GB Display: 7" 1280x800 pixels with IPS wide view multi-touch screen |
Download Brochure Here!
