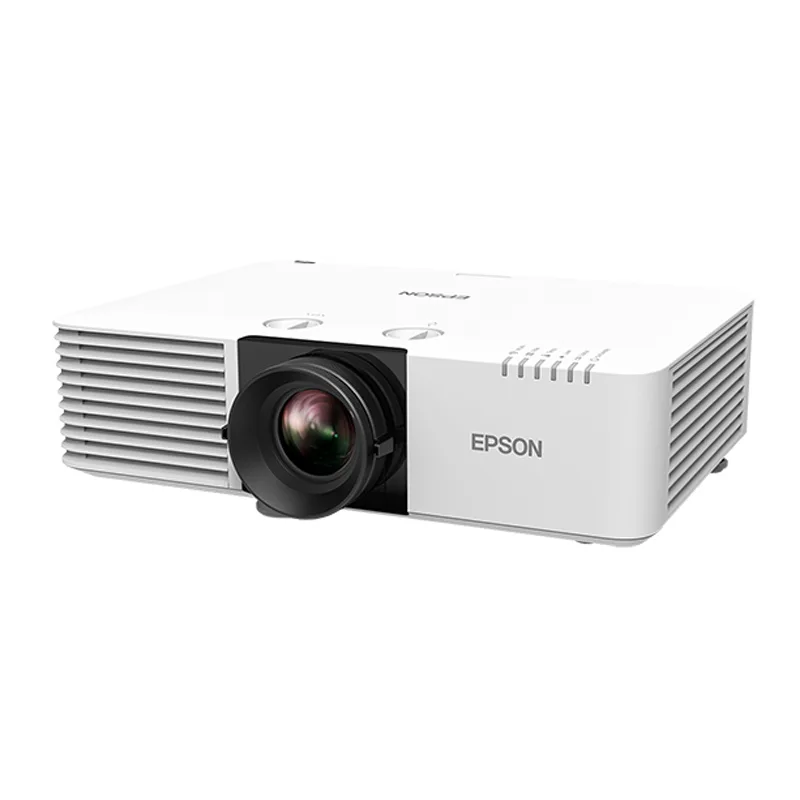

Epson EB-L630SU WUXGA 3LCD Laser Projector
A Small WUXGA Short Throw Laser Projector for Projecting Sharp and Vivid Images at a Closer Distance, with 6,000 Lumens
Features and Benefit
The EB-L630SU laser projector offers strong performance for applications in business, education, and signage. With 6000 lumens of white and colour brightness*2, project stunningly brilliant, vivid visuals. Additionally, this powerful projector delivers WUXGA resolution. With its ground-breaking laser technology, it provides a laser light source that can last up to 20,000 hours*1 and operates without bulbs for essentially maintenance-free operation. Customers are no longer concerned about space limitations because to the short throw capability of the design. Additionally, wide lens shift is supported for added flexibility. The Epson Wireless Presentation System**, which provides hassle-free connectivity for increased productivity, is compatible with it.
- 6000 lumens of color and white brightness*2
- 20,000-hour*1 laser light source with no lamps
- WUXGA resolution
- Short Throw Ratio of 0.80 – 1.07
- Built-in Wireless
- Specifications
- Brochure
- Video
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Brightness: |
White Light Output (Normal / Extended): 6,000lm / 4,200lm Colour Light Output: 6,000lm Light Output (Center): 6,300lm* |
|
Connectivity: |

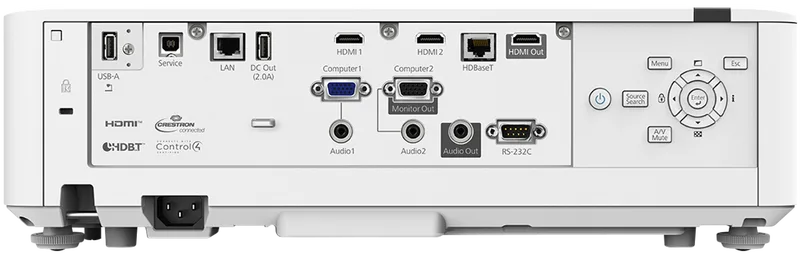

Network: Wired LAN RJ45 x 1 (100Mbps) Built-in Wireless: Yes Optional Wireless: ELPAP11 Analog RGB Input: D-Sub 15Pin: 2 Digital Input: HDMI: 2 (HDCP 2.3) HDBaseT: 1 (HDCP 2.3) Audio Input: Stereo Mini Jack: 2 Audio Output: Stereo Mini Jack: 1 Control I/O: RS-232C: D-Sub 9pin x 1 USB Input: USB Type A: 2 (Port1 for PC Free, Firmware Update, Copy OSD Settings; Port2 for 5V/2A power supply only, no USB function) USB Type B: 1 (For Mouse, Keyboard, Control, Firmware Update) Analog Video Output: D-Sub 15Pin: 1 Digital Video Output: HDMI: 1 (HDCP 2.3) |
|
Screen Size (Projected Distance): |
Zoom : Wide: 50” - 200” [0.85 - 3.49 m] Zoom : Tele: N/A |
|
Operating Temperature: |
Single Use: Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F> High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 40 °C <32 - 104 °F> 20% - 80% Humidity, No Condensation Multi-projection Use: Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F> High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 35 °C <32 - 95 °F> 20% - 80% Humidity, No Condensation |
|
Operating Altitude: |
Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft) |
|
Start-Up Period: |
Start-Up Period: 8 sec (Epson Logo); Warm-up Period: 30 sec Quick Start-Up: Less than 5 seconds (Display) |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Direct Power On/Off: |
Direct Power On/Off: Yes |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (D x W x H): 304 x 440 x 122 mm |
|
Power Supply Voltage: |
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz |
|
Wireless Specifications (Using Optional ELPAP11): |
Supported Speed for Each mode : Access Point(Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps*3 IEEE 802.11n (2.4GHz): 72.2 Mbps*3 IEEE 802.11a (5GHz): 54 Mbps*3 IEEE 802.11n (5GHz): 150.0 Mbps*3 IEEE 802.11ac (5GHz): 325Mbps*3 Supported Mode : Access Point (Wi-Fi Direct) Supported Security Type: Access Point (Wi-Fi Direct): WPA2-PSK (AES) |
|
Air Filter |
Type: Electrostatic Filter Maintenance Cycle*4: 20,000 hours (Normal) / 30,000 hours (Extended) |
|
Internal Speaker(s): |
Sound Output: 10W Monoaural |
|
Weight: |
Weight: Approx. 8.4kg |
|
Contrast Ratio: |
Contrast Ratio: Over 2,500,000:1 |
|
Fan Noise: |
Fan Noise (Normal / Eco): 38dB / 27dB |
|
Geometric Correction |
Vertical/Horizontal Keystone: ±30º / ±30º Projection Orientation: 360º Free |
|
Specifications of Main Parts: |
LCD: Size: 0.67" (C2 Fine) Resolution: WUXGA Aspect Ratio: 16:10 Lightsource: Type: Laser Diode Life*1: 20,000 hours (Normal) / 30,000 hours (Extended) Projection Lens: Type: No optical zoom / Focus (Manual) F-Number: 1.70 Focal Length: 11.76 mm Zoom Ratio: 1.0 - 1.35 (Digital Zoom) Throw Ratio: 0.80 – 1.07 (Wide - Tele) |
|
Power Supply Voltage: |
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz |
|
Power Consumption (220 - 240V): |
Laser Diode ON (Normal / Extended): 345 W / 258W Stand By: (Normal/Eco): 2.0W / 0.3W |
