Scan Doc To PDF Scanner

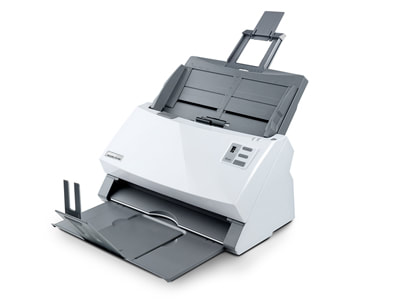

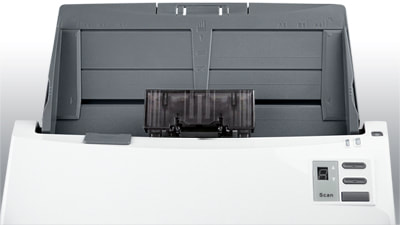

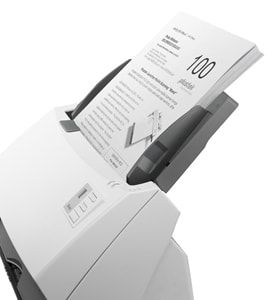

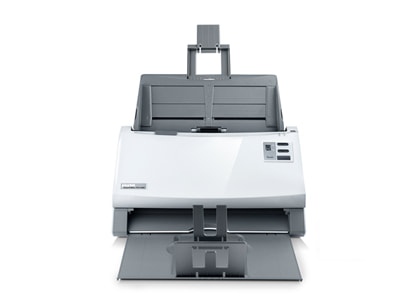

Plustek SmartOffice PS3180U
Features and Benefits
Scan Doc To PDF Scanner Plustek SmartOffice PS 3180U is a 80 page per minute, duplex document scanner that is not only fast, it’s reliable and cost effective. Ultrasonic misfeed detection ensures all of your critical documents are imaged correctly. Robust paper handling, advanced image processing and a high daily duty cycle all add up to the perfect departmental scanning solution for document management, content management and forms processing applications.
- Supports Windows and Mac OS
- Scan speed 80ppm/160ipm in grayscale mode
- 100 page ADF capacity and a generous daily duty cycle
- Improved high quality imaging and robust paper handling
- Ultrasonic multifeed detection
- No warm up time. Instant on LED illumination
- Scans plastic cards, insurance cards, license cards, business cards up to 1.2mm
- Scans long documents up to 5080mm (200”)
- Single touch scanning to popular formats including Searchable PDF, Word, Excel, JPEG and TIFF
- Automatic wake up when documents are placed in the feeder
- Advanced image enhancement to automatically straighten and rotate pages, adjust brightness, detect color and increase OCR accuracy
Specification
- General
|
Image Sensor |
CIS x 2 |
|
Optical Resolution |
600 dpi |
|
Hardware Resolution |
600 x 600 dpi |
|
ADF Capacity |
1. 100 sheets (A4/ Letter, 70 g/m² or 18 Lbs) 2. 30 sheets (Business Cards) 3. Plastic Card, Max. thickness under 1.2 mm. Note: Maximum ADF capacity varies, depending upon paper weight. |
|
Scanning Speed (ADF) |
80 ppm/ 160 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait) 80 ppm/ 160 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait) 45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Portrait) 30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait) Note: Results may vary depending upon your scanning application, computer processor and system memory. |
|
Scanning Area (W x L) |
Max: 216 x 5080 mm (8.5” x 200”) Min: 13.2 x 13.2 mm (0.52” x 0.52”) |
|
Acceptable Paper Sizes (W x L) |
Max: 244 x 5080 mm (9.6” x 200”) Min: 50.8 x 50.8 mm (2” x 2”) |
|
Acceptable Paper Weight (Thickness) |
40 to 220 g/m² (10 to 58 Lbs) |
|
Daily Duty Scan ( Sheets ) |
8,000 |
|
Roller Lifetime (Scans) |
300,000 |
|
Pad Lifetime (Scans) |
50,000 |
|
Action Button |
4 Buttons: Up, Down, Scan, Standby 9 Function Keys: Scan, PDF, OCR, File, E-Mail, Copy, BCR, FTP, DI Capture. All Customizable. |
|
Power Supply |
24 Vdc/ 1.25 A |
|
Interface |
USB 2.0 |
|
Net Weight |
2.7 Kgs (5.95 Lbs) |
|
Dimensions (W x D x H) |
318.7 x 230.7 x 228.3 mm (12.55" x 9.08" x 8.99") |
|
Protocol |
ISIS & TWAIN Compliant |
|
OS |
Windows XP/Vista/7/8/10 |
|
Protocol |
ISIS and TWAIN Compatible |
|
Os |
Windows XP / Vista / 7 / 8 / 10 |
Download Brochure Here!
