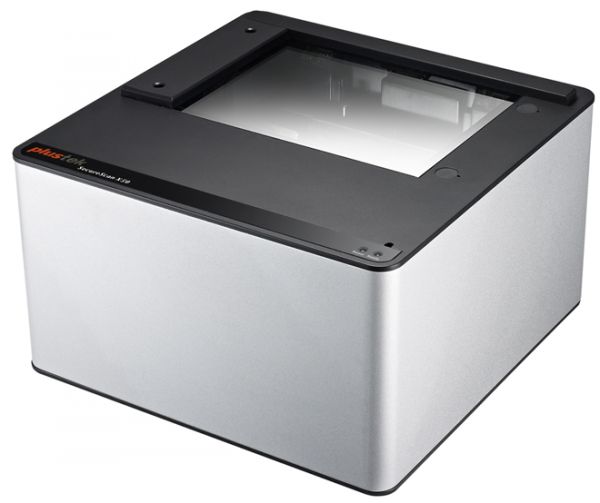

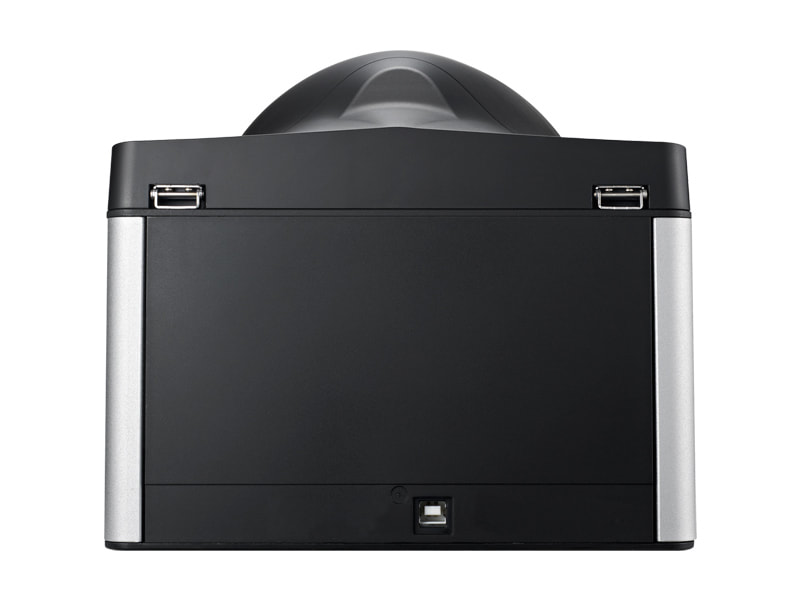

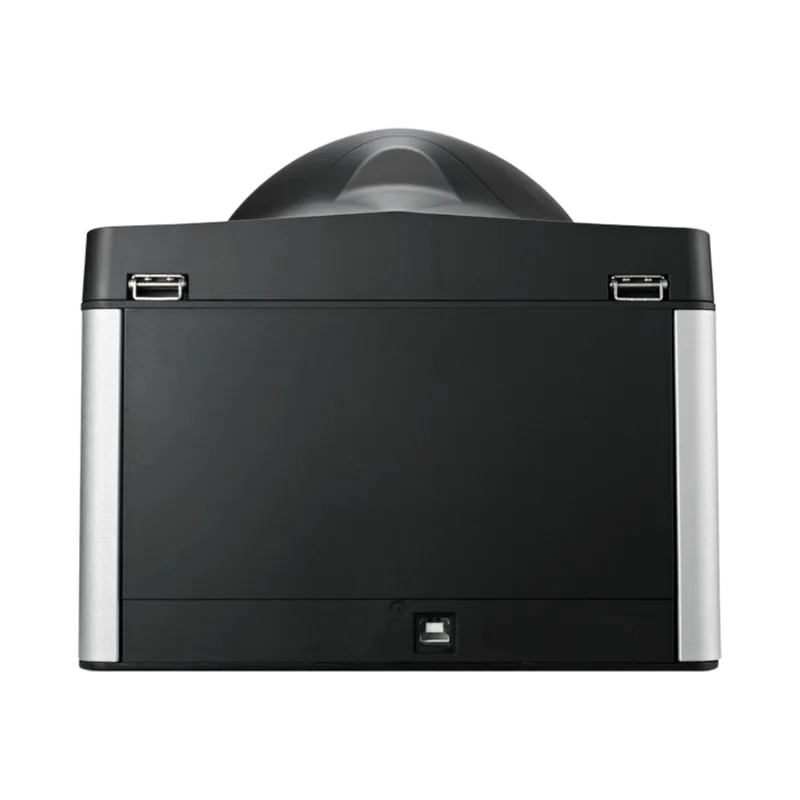

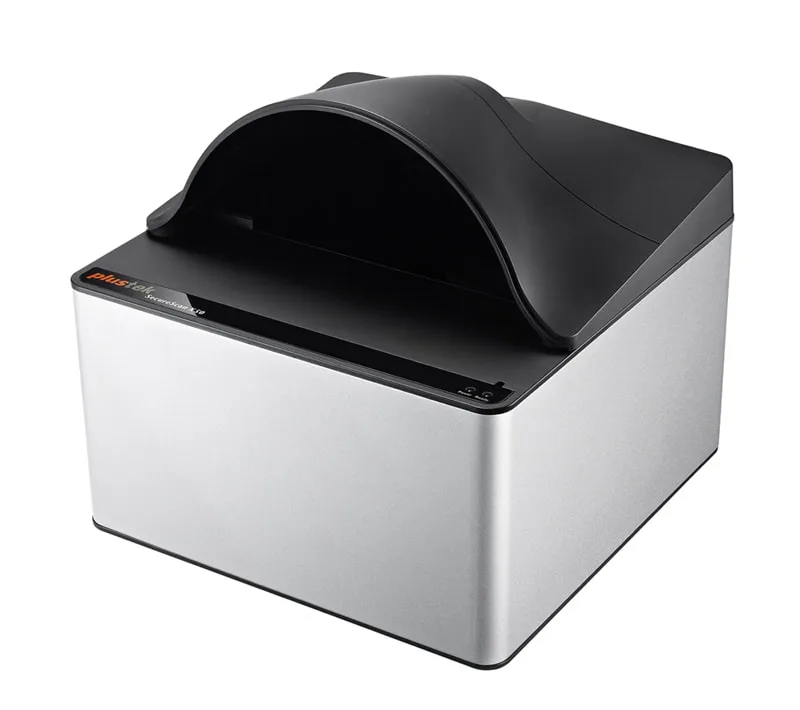

International Passport Scanner
Plustek SecureScan X50
Features and Benefits
International Passport Scanner Plustek SecureScan X50 utilizes an image sensor with Visible illumination, for quick image capturing, OCR text reading, and visual security features authentication, of ID cards, such as drivers licenses, health insurance cards, and other identification documents.
- Completely compliant with ICAO Doc 9303 standard
- Capable of reading Machine Readable Zone, and Visual Zone data
- Auto-Detect of document type, document size, and 2 seconds Quick-Scan with OCR
- Easy to integrate Identity Management Systems
- Low power design with USB power-in
Specification
- General
|
Image Sensor |
CMOS |
|
Light Source |
White LED |
|
Optical Resolution |
5 Megapixels |
|
Focus |
Fixed |
|
Scan Modes |
Color: 24-bit Input; 24-bit Output |
|
Scanning Speed |
Approx. 1 sec (Color Mode, Full Page passport image capture) |
|
Scanning Area (W x L) |
Maximum: 127 x 95 mm (5" x 3.74") |
|
Acceptable Paper Sizes (W x L) |
Maximum: 125 x 88 mm (4.92" x 3.46") |
|
Action Button |
Dual Auto Detect Sensors |
|
Power Supply |
USB Power: 5V / 0.5A |
|
Interface |
USB 2.0 |
|
Net Weight |
1.7 Kgs (3.78 Lbs) |
|
Dimensions (W x D x H) |
Without Cover: 200 x 200 x 119 mm (7.87" x 7.87" x 4.69") With Cover: 200 x 200 x 190 mm (7.87" x 7.87" x 7.48") |
|
OS |
Windows 7 / 8 / 8.1 / 10 |
|
Hardware Requirements |
Pentium® IV 2.4 GHz processor DVD-ROM Drive One available USB 2.0 Port 1GB RAM (2GB or higher recommended) 1GB free HDD space (2GB or larger recommended) |
Download Brochure Here!
