Digital Printer Press Machine

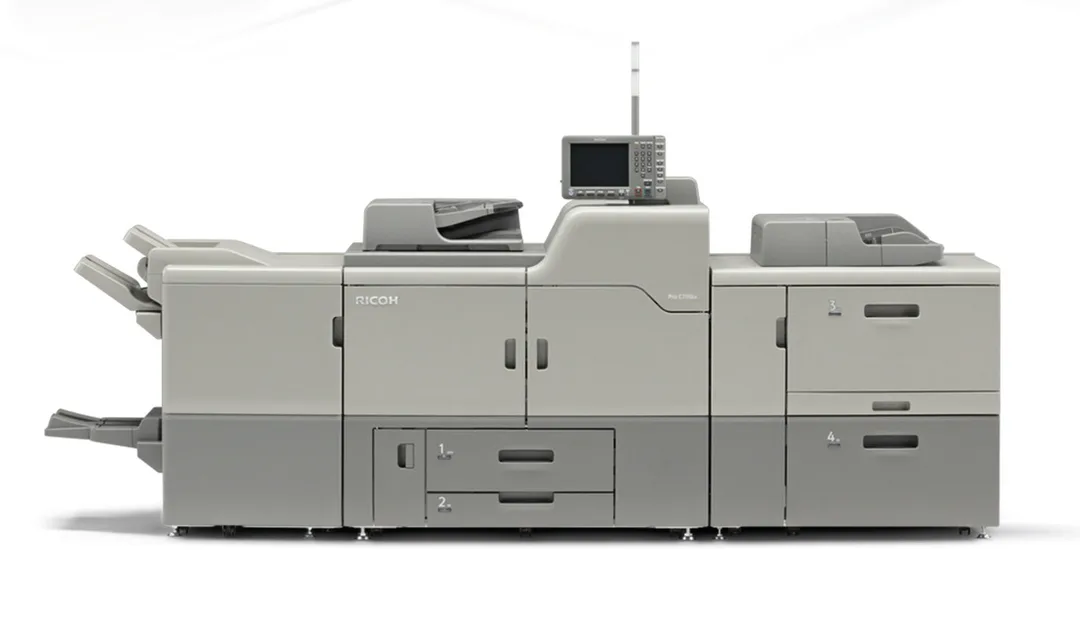

Ricoh ProC7110 Digital Colour Production Printer
Today’s customers demand tight delivery times on short length runs. You need an affordable colour digital press that can more than meet their deadlines and can handle a wide variety of applications.
Digital Printer Press Machine Ricoh ProC7110 Series are the ideal solutions. They complement offset in terms of image quality and offer high productivity.
Digital Printer Press Machine Ricoh ProC7100 Series is a series of 4 colour production presses; models include Ricoh ProC7100 / ProC7100S / ProC7110 / ProC7110S.
Please also have a look at the Ricoh ProC7100x Series, our new 5 colour production presses.
Digital Printer Press Machine Ricoh ProC7110 Series are the ideal solutions. They complement offset in terms of image quality and offer high productivity.
Digital Printer Press Machine Ricoh ProC7100 Series is a series of 4 colour production presses; models include Ricoh ProC7100 / ProC7100S / ProC7110 / ProC7110S.
Please also have a look at the Ricoh ProC7100x Series, our new 5 colour production presses.
- Main Features
- Specifications
- Offset-like image quality.
- Maximises productivity.
- Broad paper support.
- Hassle-free operation.
- Small footprint
GENERAL
Technology:
Fusing:
Toner Type:
Print Speed:
4-drum dry electrostatic transfer system with internal transfer belt
Oil less belt-fusing method
New chemical toner
ProTM C7100 models:
FC/BK 80PPM
Thick1(52g/m2) – Thick7(300g/m2) 80PPM
Thick8(300g/m2) – (360g/m2) 65PPM
ProTM C7110 models:
FC/BK 90PPM
Thick1(52g/m2) – Thick7(300g/m2) 90PPM
Thick8(300g/m2) – (360g/m2) 75PPM
FC/BK 80PPM
Thick1(52g/m2) – Thick7(300g/m2) 80PPM
Thick8(300g/m2) – (360g/m2) 65PPM
ProTM C7110 models:
FC/BK 90PPM
Thick1(52g/m2) – Thick7(300g/m2) 90PPM
Thick8(300g/m2) – (360g/m2) 75PPM
Print:
Max 1200 x 4800dpi VCSEL
Warm-up time:
Less than 300 sec.
Dimensions (WxDxH):
Printer version
1,320 x 910 x 1,218mm
Copier version
1,320 x 910 x 1,230mm
1,320 x 910 x 1,218mm
Copier version
1,320 x 910 x 1,230mm
Weight:
Less than 560/580kg
Power Source:
220-240V, 16A, x2 50/60Hz
Power Consumption:
Duty Cycle:
Less than 5000W
14,400,000 or 5 years
MEDIA HANDLING
Paper Input Capacity:
Max Printable Area:
1st tray (std) 1,000 sheets x2 (Tandem)
2nd tray (std) 500 sheets
(Optional) A3/DLT LCT
3rd tray (Optional) 1,000 sheets
4th tray (Optional) 2,000 sheets
5th tray (Optional) 1,000 sheets
(Optional) Vacuum Feed LCT
3rd-8th Tray 2,200 sheets each
(Optional) Multi-Bypass Tray 500 sheets
2nd tray (std) 500 sheets
(Optional) A3/DLT LCT
3rd tray (Optional) 1,000 sheets
4th tray (Optional) 2,000 sheets
5th tray (Optional) 1,000 sheets
(Optional) Vacuum Feed LCT
3rd-8th Tray 2,200 sheets each
(Optional) Multi-Bypass Tray 500 sheets
323 mm x 480 mm / 12.7” x 18.9”
330 mm x 692mm / 12.7” x 27.2”
(when using Banner Sheet Tray Option)
330 mm x 692mm / 12.7” x 27.2”
(when using Banner Sheet Tray Option)
Paper Weight:
1st tray 52-300g/m2
2nd tray 52-256g/m2
(Optional) A3/DLT LCT
3rd tray 52-256g/m2
4th tray 52-360g/m2
5th tray 52-256g/m2
(Optional) Vacuum Feed LCT
3rd-8th tray 52-360gsm
Banner 52-300g/m2
(Optional) Multi-Bypass tray unit: 6th tray 52-216g/m2
2nd tray 52-256g/m2
(Optional) A3/DLT LCT
3rd tray 52-256g/m2
4th tray 52-360g/m2
5th tray 52-256g/m2
(Optional) Vacuum Feed LCT
3rd-8th tray 52-360gsm
Banner 52-300g/m2
(Optional) Multi-Bypass tray unit: 6th tray 52-216g/m2
COLOUR CONTROLLER
E-43A
Configuration:
System Version:
CPU:
HDD:
CD-ROM Drive:
Operating System:
E-83A
Configuration:
System Version:
CPU:
Memory:
HDD:
CD-ROM Drive:
Operating System:
Optional (external)
Fiery System FS150Pro
Intel i5-4570 (2.9GHz up to 3.6GHz with Turbo)
1TB x1 SATA
Supported DVD-RW
Windows 7 Professional for Embedded Systems x64
Optional (external)
Optional (external)Optional (external)
Fiery System FS150Pro
Intel Xeon (Quad-Core) Xeon E5-2637 (3.5GHz)
2GB x 8
1TB x2 SATA / RAID 0 (for data) 500GB SATA (for OS)
Supported DVD-RW
Windows 7 Professional for Embedded Systems x64
OTHER OPTIONS
- Optional: SRA3 13”X19.2” Large Capacity Tray (LCIT RT5090)
- Vacuum Paper Feed RT5100
- Bridge Unit BU5010
- Vacuum Feed Banner Sheet Tray Type S3
- Multi-Bypass Tray Unit (BY5010)
- Multi-Bypass Banner Sheet Tray Type S3
- 3,000 Sheets Finisher with 100 Sheets Stapler (SR5050)
- Booklet Finisher (SR5060)
- Cover Interposer Tray (CI5030)
- Ring Binder (RB5020)
- Perfect Binder (GB5010)
- Decurl Unit DU5040
- Multi-Folding Unit (FD5020)
- Booklet Trimmer (TR5040)
- High Capacity Stacker SK5030
- Buffer Pass Unit Type S3
- RPIP Interface Box Type S3
- PostScript3 Unit Type S3
- GBC StreamPunch Ultra
- Plockmatic Booklet Maker.
WORKFLOW SOLUTIONS
- EFI™ Digital StoreFront®
- EFI™ Color Profiler Suite
- EFI™ Fiery® Graphic Arts Package Premium Edition
- EFI™ SeeQuence Compose
- SeeQuence Impose
- SeeQuence Suite
- DirectSmile®
- EFI™ Fiery® Central
- Objectif Lune PlanetPress
- Ricoh TotalFlow: PTI FusionPro®, MarcomCentral®, TotalFlow BatchBuilder, Prep, Print Manager, Production Manager & Path.
- CGS ORIS Lynx & PressMatcher
- Ricoh Process Director Express®
ENVIRONMENTAL INFORMATION
Pro™ C7100/C7110 models comply with Energy Star 2.0 standards.
Please Note: Unless stated otherwise the data used is based on A4 80gsm Standard Media.
Please Note: Unless stated otherwise the data used is based on A4 80gsm Standard Media.
