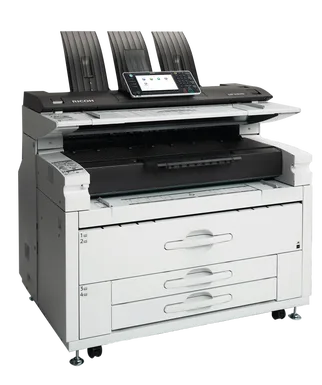

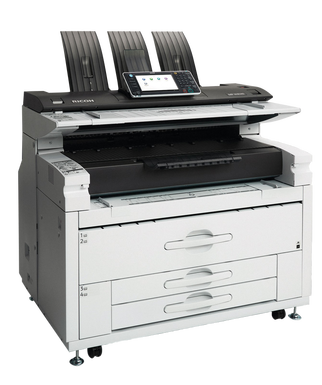

Large Format Laser Printer A0 A1
Ricoh MPW8140SP
Overview
Large Format Laser Printer Ricoh MP W8140SP has been specially created for the needs of CAD and PFP to increase the speed of high quality output and lower the cost. Its compact design combines the reliability, durability and ease of use that are so essential in today’s workplace. All of which helps drives business and profits.
Large Format Laser Printer Ricoh MP W8140SP has been specially created for the needs of CAD and PFP to increase the speed of high quality output and lower the cost. Its compact design combines the reliability, durability and ease of use that are so essential in today’s workplace. All of which helps drives business and profits.

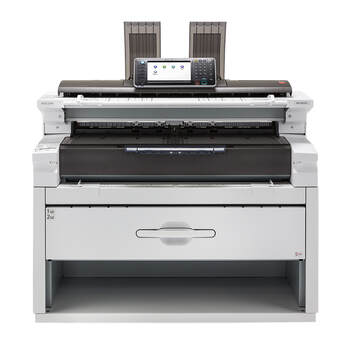

Ricoh MPW8410SP Standard Configuration
Ricoh MPW8410SP standard comes with
- 2 Roll Feeder,
- Bypass Tray,
- Laser Printer,
- Photostat Machine
- Colour Scanner unit,
- PostScript3/ MLB/ Java VM,
- HDD 320GB,
- USB Host/ USB 2.0,
- Network 10/100Base/ Giga Ethernet.
Ricoh MPW8410SP Standard Configuration
- Main Features
- Specifications
- New and even better wide format printing.
- High-speed monochrome printing at 14 pages/minute (A1 Horizontal).
- Colour Scanner.
- New USB/SD slot.
- Space saving in design and operation
GENERAL
Technology:
Fusing:
Toner Type:
Print Speed:
Copy Speed:
Print Resolution:
Copy Resolution:
Warm-up time:
Dimensions (WxDxH):
Weight:
Power Source:
Power Consumption:
Fusing:
Toner Type:
Print Speed:
Copy Speed:
Print Resolution:
Copy Resolution:
Warm-up time:
Dimensions (WxDxH):
Weight:
Power Source:
Power Consumption:
Electro-photographic printing
Heat and pressure
Magnetic brush dual component dry toner system
MP W8140SP: 7ppm @A0/E SEF, 14ppm @A1/D LEF
MP W8140SP: 170mm/sec 14cpm/ppm @ A1/D LEF
RPCS 600dpi PS3/PDF 600/300dpi
RP-GL/GL2 600dpi/400dpi
RTIFF 600/400/300/200dpi
600dpi
Less than 120 sec.
1,250 x 755 x 1,215mm
Less than 295kg
220V-240V/8A 50/60Hz
Printing: less than 3kW
Heat and pressure
Magnetic brush dual component dry toner system
MP W8140SP: 7ppm @A0/E SEF, 14ppm @A1/D LEF
MP W8140SP: 170mm/sec 14cpm/ppm @ A1/D LEF
RPCS 600dpi PS3/PDF 600/300dpi
RP-GL/GL2 600dpi/400dpi
RTIFF 600/400/300/200dpi
600dpi
Less than 120 sec.
1,250 x 755 x 1,215mm
Less than 295kg
220V-240V/8A 50/60Hz
Printing: less than 3kW
SCANNER FEATURE
Colour Scanner Resolution:
Scan Speed:
Scan Area:
Scan Speed:
Scan Area:
150/200*/300/400/600 *Default Twain 150-1200dpi
BW 42.5-340mm/s
MP W8140SP: (Metric) 914.4mm x 30,000mm
Min: 210mm x 210mm
BW 42.5-340mm/s
MP W8140SP: (Metric) 914.4mm x 30,000mm
Min: 210mm x 210mm
MEDIA HANDLING
Paper Input Capacity:
Original width:
Maximum width:
Paper Size:
Paper Weight:
Original width:
Maximum width:
Paper Size:
Paper Weight:
SEF: A0/A1/A2/A3/A4
LEF: A1/A2/A3/A4
210-914.4mm
914mm
Maximum: 914 x 150,00mm
2 roll papers Width : 210mm - 914mm
Max length: 15,000mm
Roll Paper: 51-134g/m2
LEF: A1/A2/A3/A4
210-914.4mm
914mm
Maximum: 914 x 150,00mm
2 roll papers Width : 210mm - 914mm
Max length: 15,000mm
Roll Paper: 51-134g/m2
PRINT CONTROLLER SPECIFICATION
Configuration:
CPU:
Memory:
HDD:
Operating System:
Network Protocol:
Supported Print Language:
Font:
Network Interface:
Service Interface:
CPU:
Memory:
HDD:
Operating System:
Network Protocol:
Supported Print Language:
Font:
Network Interface:
Service Interface:
Embedded (Copier-Printer-Scanner)
Calpella (1.06 GHz)
2.5GB
320GB(Shared with Copy/Printer/Scanner applications)
Windows: XP/Vista/7/8/8.1/2003server/2008server/2008R2server/2012server/2012serverR2
Mac: OS (later than Mac OS8.6) Mac: OS X (later than Mac OS X10.7)
Citrix Presentation: Server 4.5
TCP/IP(IPv4, IPv6), IPX/SPX, Auto switching available
PostScript Level3(PDF), RPCS, Emulation: HP-GL, HP-GL/2(HP-RTL), TIFF(CALS)
European 136 fonts
Standard: 100/10base-TX, USB2.0 Option: IEEE802.11a/g/n (wireless)
2 slots USB 2.0 host
Calpella (1.06 GHz)
2.5GB
320GB(Shared with Copy/Printer/Scanner applications)
Windows: XP/Vista/7/8/8.1/2003server/2008server/2008R2server/2012server/2012serverR2
Mac: OS (later than Mac OS8.6) Mac: OS X (later than Mac OS X10.7)
Citrix Presentation: Server 4.5
TCP/IP(IPv4, IPv6), IPX/SPX, Auto switching available
PostScript Level3(PDF), RPCS, Emulation: HP-GL, HP-GL/2(HP-RTL), TIFF(CALS)
European 136 fonts
Standard: 100/10base-TX, USB2.0 Option: IEEE802.11a/g/n (wireless)
2 slots USB 2.0 host
OTHER OPTIONS
- 2 Roll Unit
- 2 cassette Unit
- Scanner separation kit
- Multi stacker
- Double stacker
- On-Line Cross Folder & Fan Folder
- RPIP interface Box.
ENVIRONMENTAL INFORMATION
MPW8140SP complies with Energy Star 1.1 standards.
EPEAT ‘GOLD’.
