Epson EB-725W WXGA 3LCD Laser Projector
Utilize this WXGA monitor to attract students in with readable pictures up to 120".
Features and Benefit
The EB-725W WXGA 3LCD super short-throw laser display can be used to increase engagement in today's socially disengaged classrooms with attractive, simple-to-read pictures. This powerful 4,000-lumen*3 laser display projects engaging 16:10 quality images up to 120" diagonal with almost no shadowing from almost anywhere in the classroom. It is designed to optimise collaboration and productivity. With built-in wifi, Instant On activation, and almost maintenance-free operation with no lamps to replace for light source up to 20,000 hours*4, the EB-725W makes classroom projection more practical than ever.
- 4,000 lumens of color and white brightness*3
- WXGA 16:10; project up to up to 120"
- 20,000-hour laser light source*4
- Fast setup time with laser light source
- Built-in wireless
- Screen Mirroring
- Specifications
- Brochure
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Brightness2: |
White Light Output (Normal / Eco): 4,000lm / 2,800lm*3 Colour Light Output: 4,000lm / 2,800lm*3 |
|
Connectivity: |

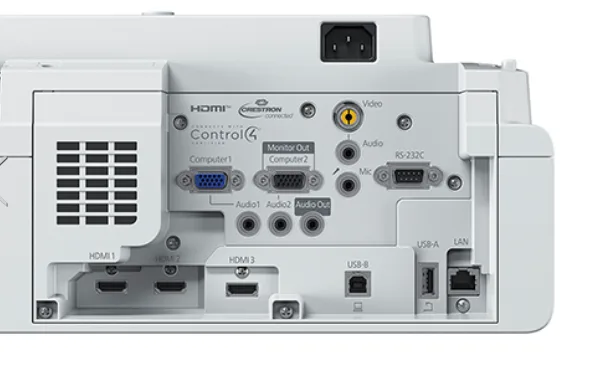

Network: Wired LAN: RJ45 x 1 (100Mbps) Screen Mirroring (Built-in) Wireless: Optional (Using ELPAP11) Analog Input: Composite: RCA x 1 (Yellow) D-Sub 15Pin: 2 (Blue, Black) Digital Input: HDMI: 3 (HDCP2.3) Output Terminal: D-Sub 15Pin: 1 (Black) (in common with Computer 2) Audio Input: Stereo Mini Jack: 3 Audio Output: Stereo Mini Jack: 1 Mic I/O: Stereo Mini x 1 Control I/O: RS-232C: D-Sub 9pin x 1 Others: USB Type A: 2 (for Saving and Reading Data via USB, Firmware Update, Copy OSD Settings) USB Type B: 1 (for Firmware Update, Copy OSD Settings) |
|
Contrast Ratio: |
Contrast Ratio: Over 2,500,000 : 1 |
|
Screen Size (Projected Distance): |
Screen Size (Projected Distance): 65” – 120” [38.5 – 72.5 cm] @ 16:10 64” – 116” [36.9 – 69.2 cm] @ 16:9 |
|
Geometric Correction: |
Vertical/Horizontal Keystone: ±3° / ±3° Quick Corner: Yes (Manual) |
|
Operating Temperature: |
Single Use: 0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [41 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation Over 2,286 - 3,048 m (7,500 - 10.000 ft): 0 - 35 °C [41 - 95 °F] ; 20%-80% Humidity, No Condensation Multi-projection Use :0 - 2,286 m (0 - 7,500 ft): 0 °C - 35 °C [41 °F - 95 °F ; 20% to 80% Humidity, No Condensation Over 2,286 - 3,048 m (7,500 - 10,000 ft): 0 - 30 °C [41 - 86 °F] ; 20%-80% Humidity, No Condensation |
|
Operating Altitude: |
Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft) |
|
Start-Up Period: |
Start-Up Period: Less than 8 seconds, Warm-up Period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Internal Speaker(s): |
Sound Output: 16W Monoaural |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 356 x 133 mm x 395 mm |
|
Weight: |
Weight: 5.7kg |
|
Air Filter: |
Type: Electrostatic Filter Maintenance Cycle: 12,000 hours *1 |
|
Fan Noise: |
Fan Noise (Normal / Eco): 36dB / 26dB |
|
Wireless LAN – Built-In: |
Supported Speed For Each Mode Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2 IEEE 802.11n (2.4GHz): 72.2Mbps*2, IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2, IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 Supported Mode: Infrastructure, Access Point (Wi-Fi Direct) Wireless LAN Security: Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast Access Point (Wi-Fi Direct): WPA2-PSK (AES) |
|
Screen Mirroring – Built-In: |
Supported Speed For Each Mode Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2, IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 Access Point: (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2, IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 Supported Mode: Infrastructure, Access Point (Wi-Fi Direct) |
|
Power: |
Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz |
|
Direct Power On / Off: |
Direct Power On / Off: Yes |
|
Specifications of Main Parts: |
LCD:Size: 0.59” (C2Fine) Resolution: WXGA (1280 x 800) Lightsource:Type: Laser Diode Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs Projection Lens: Type: No Optical Zoom / Focus (Manual) F-Number: 1.60 Focal Length: 3.7mm Zoom Ratio: 1.0 – 1.35 (Digital Zoom) Throw Ratio: 0.28 – 0.37 (Wide to Tele) |
