Machine Fold Paper A0 A1 into A4 Size
Engineering Drawing Folding Machine Rental

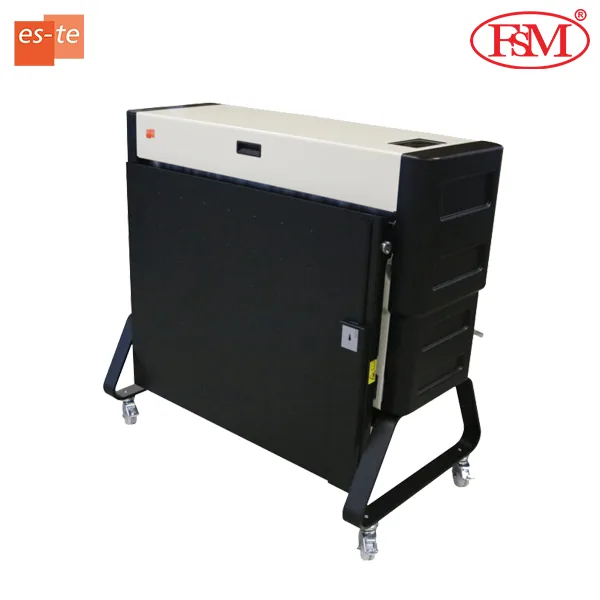

estefold 3000 AO Folding Machine
Folding System
estefold 3000
Welcome to automatic folding! estefold 3000 is a perfect complement to all large format printers.
Technical plans, drawings and alike can be folded accurately and efficiently using this top-notch folding system.
Processing several sheets per minute is effortless - even for inexperienced users.
estefold: The brand of choice for true professionals.
estefold 3000
Welcome to automatic folding! estefold 3000 is a perfect complement to all large format printers.
Technical plans, drawings and alike can be folded accurately and efficiently using this top-notch folding system.
Processing several sheets per minute is effortless - even for inexperienced users.
estefold: The brand of choice for true professionals.
Features

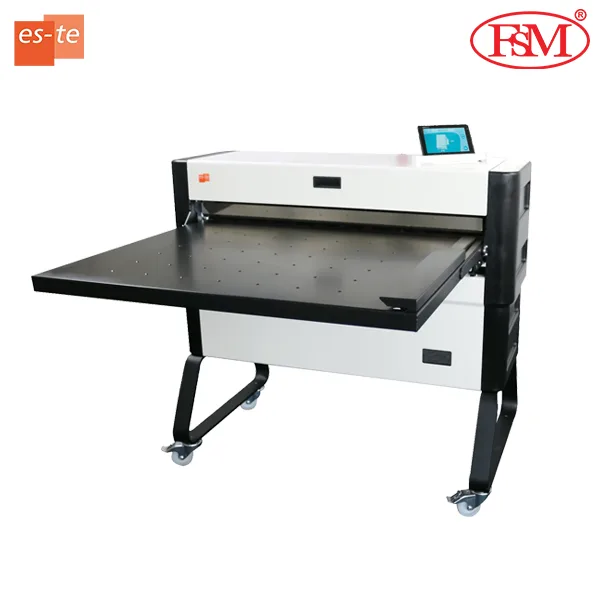

estefold 3000 impresses with its unique touch display.
Selected folding style or specific instructions are shown in unmatched detail.
Individual folding styles can be created, saved and restored conveniently and in unprecedented flexibility.
Even adjusting the folding speed between 3 - 30 m/min is quick and easy, as it has never been.
All while, proven & highly appreciated advantages like:
were retained.
estefold 3000: So quiet, it´s certified for use in living rooms.
Selected folding style or specific instructions are shown in unmatched detail.
Individual folding styles can be created, saved and restored conveniently and in unprecedented flexibility.
Even adjusting the folding speed between 3 - 30 m/min is quick and easy, as it has never been.
All while, proven & highly appreciated advantages like:
- Complete assembly ex-works - plug & fold
- Large feed-in table - for precise & comfortable input
- High quality componets - for reliability & longevity
were retained.
estefold 3000: So quiet, it´s certified for use in living rooms.
estefold 3000
estefold 3000 - Setup
Options

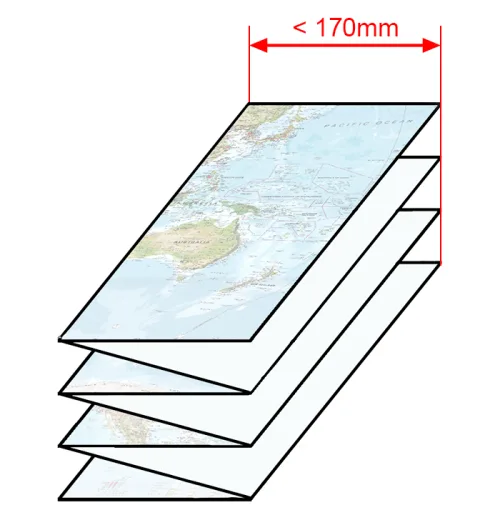

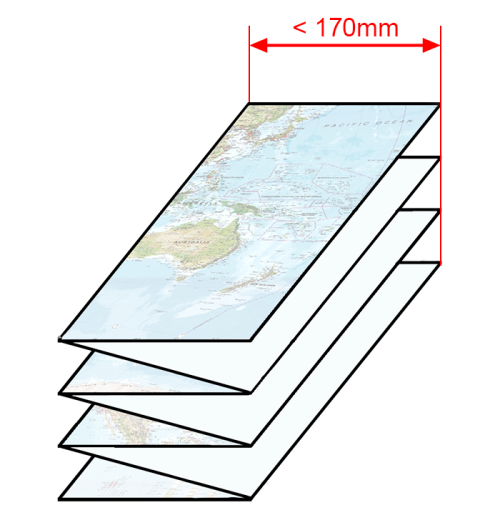

Narrow Fold 10 cm
This optional feature enhances the fan fold panel width to 100 - 420 mm (default 170 - 420 mm).
It allows topographic maps and alike to be folded to their standard format - fast, dependable and in individual volumes.

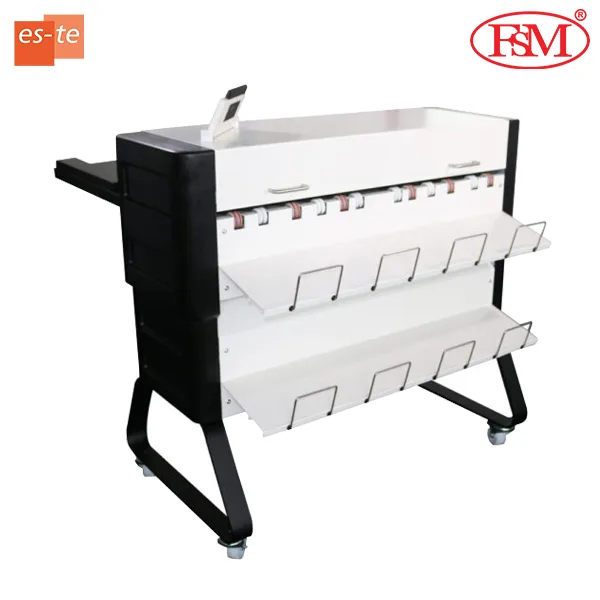

Second catch tray
This second, upper catch tray allows for cross folded plans in DIN A1 and DIN A2 format to be collected in a more comfortabel height.
This optional feature enhances the fan fold panel width to 100 - 420 mm (default 170 - 420 mm).
It allows topographic maps and alike to be folded to their standard format - fast, dependable and in individual volumes.
Second catch tray
This second, upper catch tray allows for cross folded plans in DIN A1 and DIN A2 format to be collected in a more comfortabel height.
Technical Data
|
User Interface |
7" Touchscreen |
|
Feed |
Manual (2 Step) |
|
Speed |
up to 30 m/min |
|
Programs |
45 (editable on display) |
|
Folding styles |
DIN A,B,C & Freestyle |
|
Panel width Fan Fold |
160 - 420 mm (opt. 100 - 420 mm) |
|
Panel width Cross Fold |
200 - 420 mm |
|
Margin |
0 - 50 mm |
|
Fan Fold only |
29 panels (80 g/m²) |
|
Fan- and Cross-Fold |
12 panels (80 g/m²) |
|
Document length |
420 mm - unlimited |
|
Document width |
297 - 930 mm |
|
Document weight |
60 - 120 g/m² |
|
Weight |
122 kg |
|
Dimensions |
135 x 116 x 108 mm (LxWxH) |
