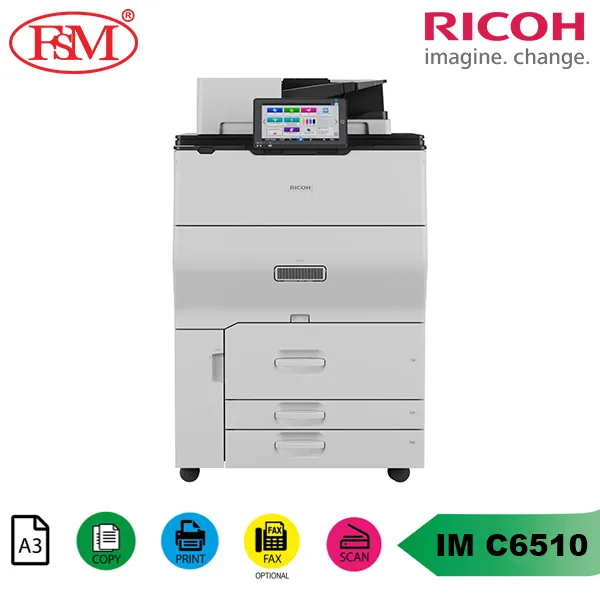

Heavy Duty Colour A3 Photocopy Machine

Ricoh IM C6510

Copy, print, scan, optional fax

Prints up to 65 ppm

8,100-sheet max input

Optional stapleless binding

Workplace Productivity

Multifunction

Always Current Technology

Ricoh Smart Integration

Sustainability

Fast, flexible, future-ready

The RICOH IM C6510 combines 65 pages per minute (ppm) colour output with AI-enhanced scanning, eco-friendly features, and advanced finishing options to elevate your office production capabilities.

Smarter digital workflows

Connect with RICOH Smart Integration cloud-based solutions to streamline scanning, document workflows, and device management.

Innovation meets sustainability

From water-based stapleless binding, increased use of recycled materials, and advanced power management, the IM C6510 brings sustainability and cost-efficiency to every print job.

Less waiting, faster results

Fast first copy, warm-up, and scanning speed times minimise waiting to keep productivity high.

Intuitive user experience

The Smart Operation Panel puts advanced functionality at your fingertips with a familiar, user-friendly interface.

Secure by design

Continuous updates and robust security features help safeguard your data and documents.

AI-powered precision

Automatic document orientation and skew correction reduce scanning errors and save time.

Specification
Brochure

Specification

Function	Copy, print, scan, optional fax
Colour	Yes
Storage	960 GB (480 GB x 2)
Memory - standard	8 GB—4 GB mainframe + 4 GB Smart Operation Panel
Operation panel	10.1" Smart Operation Panel (G3)

Physical dimensions (WxDxH)—mainframe	750 x 880 x 1,225 mm
Weight—mainframe	260 kg

Standard input capacity (sheets)	3,700
Maximum input capacity (sheets)	8,100
Maximum output capacity (sheets)	3,000
Paper input configuration - standard	1,250-sheet x 2 tandem tray, 2 x 550-sheet paper input trays, 100-sheet bypass tray, 220-sheet SPDF, Duplex unit
Supported media	Plain Paper¹, Recycled Paper, Special Paper 1-3, Colour Paper, Letterhead, Cardstock, Preprinted Paper, Bond Paper, High-gloss Coated Paper, Envelope², Coated Envelope² ^1_Not displayed as paper type ^2_Tray 2 only
Maximum paper size	A3
Media weight (g/m2)	52.3–300

Interfaces - standard	Mainframe 10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet) IEEE 802.11 a/b/g/n/ac—2.4 GHz or 5 GHz can be selected; default: auto USB Host Type A—2 ports USB Device Type B—1 port Smart Operation Panel Bluetooth 5.2¹ USB Host Type A—USB Flash memory USB Host Type A—1 port for USB keyboard, NFC, etc. (optional) ¹—Cannot be used for printing
Interfaces - optional	Device Server Option Type M52 (additional Ethernet port) Copy Connector Type M25
Network protocols - standard	TCP/IP (IPv4, IPv6)

Copy speed	65 cpm
First copy time	4.9 seconds—black and white 6.8 seconds—colour
Copy resolution	100, 200, 300, 400, 600 dpi—scanning 2,400 x 4,800 dpi—printing (maximum)
Zoom range	25%–400% in 1% steps
Enlargement ratios	400%, 200%, 141%, 122%, 115%
Reduction ratios	93%, 82%, 75%, 71%, 65%, 50%, 25%
Duplex copy	Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
Book copy	Booklet, magazine, layout, and booklet
ID card copy	Supported

Print speed colour	65 ppm
Print speed black and white	65 ppm
First print time	5.5 seconds or less—black and white; 7.5 seconds or less—colour
Print resolution	2,400 x 4,800 dpi—maximum
Page description languages (PDLs)	Standard PCL 5c, PCL 6, PostScript3 emulation, PDF Direct emulation Optional Adobe PostScript 3, Adobe PDF Direct, IPDS
Printer drivers	Standard PCL 5c, PCL 6, PostScript3 emulation Optional Adobe PostScript 3
Duplex printing	Standard
Mobile printing	AirPrint, Mopria®, RICOH Smart Device Connector

Scan speed	A4 LEF via SPDF 150 ipm—simplex 300 ipm—duplex
Scan methods	Scan to USB, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded)
Colour scanning	Standard
Scan resolution	100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
Scan to file types	Single- and multi-page TIFF Single-page JPEG Single- and multi-page PDF, PDF/A Single- and multi-page High-Compression PDF
Scan to email	Protocols IMAP4, POP, SMTP Authentication SMTP authentication, POP before SMTP authentication Scan resolution 100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Scan to email file types Single-page TIFF, JPEG, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF Multi-page TIFF/PDF (default), PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF Note: Optional OCR unit is required to support scanning to a searchable PDF.
Scan to folder	Protocols SMB, FTP Security Client folder logon, transmission encryption of logon name and password Resolution 100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Search for client folders SMB—browsing directly to the designated folder FTP—by folder name Scan to folders file types Single-page TIFF, JPEG, PDF, PDF-A, High Compression PDF, Encrypted PDF, Searchable PDF Multi-page TIFF/PDF (default), PDF-A, High Compression PDF, Encrypted PDF, Searchable PDF Note: Optional OCR unit is required to support scanning to a searchable PDF.
TWAIN scanning	Scan mode Standard, Photo, OCR, Filing Scan resolution 100–1,200 dpi

Fax types	G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
Fax circuit	PSTN, PBX
Fax compatibilty	ITU-T (CCITT), G3—maximum 3 lines
Fax modem speed	2,400 bps–33.6 Kbps—G3, standard with automatic shift down
Fax compression methods	MH, MR, MMR, JBIG
Fax resolution	Standard mode 200 x 100 dpi—8 x 3.85 lines/mm Detail mode 200 x 200 dpi—8 x 7.7 lines/mm Super fine mode 400 x 400 dpi—8 x 15.4 lines/mm 400 x 400 dpi—16 x 15.4 lines/mm Note: Super fine mode is supported with the optional SAF memory.
G3 fax transmission speed	2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission 3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
Fax SAF memory capacity	Standard—4 MB, approximately 320 pages With optional SAF memory—60 MB, approximately 4,800 pages
Fax memory backup	1 hour
Quick dials	2,000 numbers

Data Overwrite Security System (DOSS) - Standard	SSD—bulk deletion only; Optional HDD—bulk and sequential deletion
Encryption	SSD/HDD encryption Authentication password encryption Encryption of data sent via Scan to email and Fax forwarding (S/MIME) Encrypted secure print Encrypted PDF Mode
Authentication	802.1x wired authentication IEEE 802.11i security (WEP, WPA, WPA2, WPA3) Network user authentication Quota setting/Account limit User authentication—Windows and LDAP via Kerberos, OAuth 2.0 User code authentication Wi-Fi Protected Setup (WPS) support

Windows	Windows 10 Windows Server 2019 Windows 11 Windows Server 2022 Windows Server 2025
Macintosh	MacOS 12 or later—PostScript 3 only, requires Rosetta to be installed
Unix	Sun Solaris—10 HP-UX—11.x, 11iv2, 11iv3 Red Hat Linux—Enterprise v5, v6 SCO OpenServer—5.0.7, 6.0 IBM AIX—7.1, 7.2
SAP	Environment—R/3, S/4 Platform—SAP R/3 (Release versions 3.0 and higher), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA Page Description Language (PDL)—PCL Character set—Latin-1, Latin-2, Unicode Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5, interleaved/Industrial/Matrix, MSI, USPS Postnet, UPC/EAN OCR fonts—OCR A, OCR B Other supported features—Available for the printing of all SAP document types—SAPScript, Smartforms, ABAP

Standard	@Remote Embedded Web Image Monitor
Optional	Global Ricoh Smart Integration (CloudStream) RICOH Streamline NX V3 Device Manager NX Accounting APAC Ricoh Smart Integration (Connectors. Control, Control+) ESA TransFormer Host Printing Translator Set Numbering EZ Plus 2.0 EZ Charger Suite Scan to Cloud Server (AP)
Mobile apps	RICOH Smart Device Connector

Power source	220–240 V, 50/60 Hz
Power consumption	2,400 W—maximum power 1,170 W—operating power, black and white 1,260 W or less—operating power, colour 165 W—Ready Mode 0.46 W—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC)	1.21 kWh
Warm-up time	29.7 seconds
Recovery time	27 seconds—Energy Save Mode (Sleep Mode) 7.9 seconds—Low Power Mode
Other environmental features	Eco-friendly indicator screen, System reset timer
