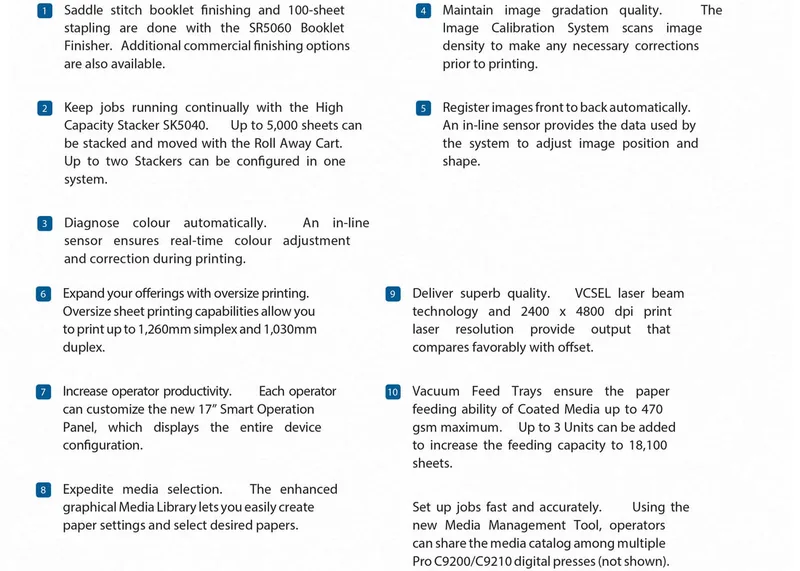

Ricoh High Speed Color Production Printer

Functions: Print
Colour: Yes
Printer controller - standard: GWNX—embedded
Printer controller - optional:

• EFI Fiery colour controller E-46
• EFI Fiery colour controller E-86
• Ricoh TotalFlow Print Server R-62

HDD: 320 GB
CPU: 1.06 GHz
Memory - standard: 1 GB
Operation panel: 17-inch LCD touch screen operation panel

Physical dimensions (WxDxH)—mainframe: 2,520 x 990 x 1,500 mm
Physical dimensions (WxDxH)—other:

• 2,520 x 990 x 1,870 mm—mainframe with status pole
• 1,054 x 730 x 1,000 mm—4,400-sheet vacuum-feed LCT RT5120
• 1,290 x 730 x 1,000 mm—4,400-sheet vacuum-feed LCT RT5120 with banner sheet option attached
• 330 x 730 x 1,000 mm—Bridge unit BU5010
• 690 x 561 x 210 mm—500-sheet multi-bypass tray BY5020
• 1,290 x 730 x 1,000 mm—730-sheet vacuum-feed banner sheet tray Type S9
• 1,290 x 730 x 1,302 mm—730-sheet vacuum-feed banner sheet tray Type S9, when cover is open
• 1,090 x 561 x 210 mm—500-sheet multi-bypass banner sheet tray Type S9, when attached to multi-bypass tray BY5020
• 1,688 x 1,286 x 950 mm—BDT VX 370-1280 banner sheet feeder
• 730 x 1,220 x 1,090 mm—Plockmatic LCT3500
• 996 x 730 x 1,126 mm—3,000-sheet finisher SR5050, with all extendable trays closed
• 996 x 730 x 1,126 mm—2,500-sheet booklet finisher SR5060, with all extendable trays closed
• 1,115 x 591 x 555 mm—Booklet trimmer TR5040
• 1,113 x 730 x 1,490 mm—4,500-sheet finisher SR5110
• 1,113 x 730 x 1,490 mm—3,500-sheet booklet finisher SR5120
• 1,115 x 591 x 555 mm—Trimmer unit TR5050
• 740 x 730 x 1,290 mm—Cover interposer CI5040
• 870 x 730 x 1,010 mm—Ring Binder RB5020
• 540 x 730 x 1,290 mm—2-tray cover interposer CI5030
• 470 x 730 x 1,000 mm—Multi-folding unit FD5020
• 1,090 x 791 x 1,387 mm—Perfect Binder GB5010
• 1,114 x 1,048 x 1,178 mm—High-capacity stacker SK5040
• 1,200 x 700 x 1,100 mm—Plockmatic high-capacity stacker HCI3500
• 900 x 680 x 1,060 mm—Plockmatic multi-purpose stacker MPS1260
• 1,420 x 700 x 970 mm—Plockmatic PBM 5035S/PBM 5035, including stacker
• 265 x 253 x 136 mm—RPIP interface box Type S3

Weight—mainframe: 1,076 kg or less
Weight—mainframe:

• 230 kg or less—4,400-sheet vacuum-feed LCT RT5120
• 40 kg or less—Bridge unit BU5010
• 20 kg or less—500-sheet multi-bypass tray BY5020
• 9 kg or less—730-sheet vacuum-feed banner sheet tray Type S9
• 9.5 kg or less—Multi-bypass banner sheet tray Type S9
• 443 kg—BDT VX 370-1280 banner sheet feeder
• 250 kg—Plockmatic LCT3500
• 112 kg or less—3,000-sheet finisher SR5050
• 112 kg or less—2,500-sheet booklet finisher SR5060
• 75 kg or less—Booklet trimmer TR5040
• 135 kg or less—4,500-sheet finisher SR5110
• 160 kg or less—3,500-sheet booklet finisher SR5120
• 75 kg—Trimmer unit TR5050
• 50 kg—Cover interposer CI5040
• 140 kg or less—Ring Binder RB5020
• 45 kg or less—2-tray cover interposer CI5030
• 92 kg or less—Multi-folding unit FD5020
• 350 kg or less—Perfect Binder GB5010
• 131 kg or less—High-capacity stacker SK5040
• 250 kg—Plockmatic high-capacity stacker HCI3500
• 65 kg—Plockmatic multi-purpose stacker MPS1260 lift unit
• 5 kg—Plockmatic multi-purpose stacker MPS1260 docking unit
• 0.55 kg or less—RPIP interface box Type S3

Minimum space requirements:

• 1,000 mm—front
• 1,000 mm—left
• 1,000 mm—right
• 800 mm—rear
• Note: PM parts maintenance tasks require additional rear clearance.

Average monthly volume:

• 350,000 prints—A4
• 200,000 prints—click

Max monthly volume: 1,000,000 prints
Max volume statement: 100,000–650,000 prints per month—recommended document volume
Machine life: 60,000,000 prints or 5 years, whichever comes first
Duty cycle: 1,750,000 prints
Colour ratio: 80%

Supply yields:

• 59,800 sheets per 1,482g black toner bottle
• 60,500 sheets per 1,482 g cyan, magenta, and yellow bottle
• 220,000 sheets per waste toner bottle
• 5,000 staples per Type M cartridge for finisher SR5050 and SR5060—normal staple
• 5,000 staples per Type U cartridge for finisher SR5060—saddle stitch staple
• 5,000 staples per Type M refill cartridge for finisher SR5050 and SR5060—normal staple
• 5,000 staples per Type T refill cartridge for finisher SR5060—saddle stitch staple
• 52 sets x 5 per 100-ring carton—260 booklets/carton
• 66 sets x 5 per 50-ring carton—330 booklets/carton
• Note: Toner yields measured with the A4/8.75% coverage chart with 150 pages per job. Waste toner bottle yield measured with A4/8.75% coverage chart with 150 pages per job and 80% colour ratio.

Standard input capacity (sheets): 4,400
Maximum input capacity (sheets): 18,100
Maximum output capacity (sheets): 13,000
Paper input configuration - standard: 2,200-sheet paper input tray x 2, duplex unit

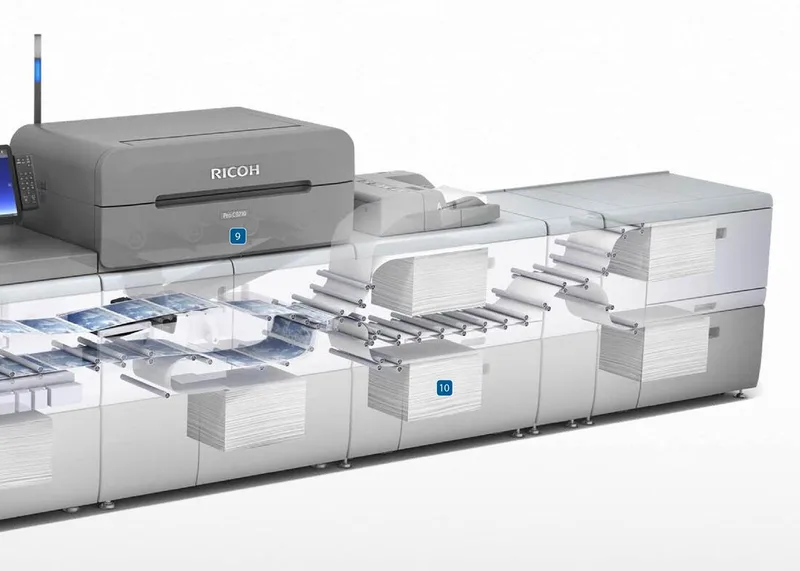

Paper input configuration - optional: 4,400-sheet vacuum-feed LCT RT5120, Multi-bypass attachment kit for vacuum-feed LCT Type S9, 500-sheet multi-bypass tray BY5020, 730-sheet vacuum-feed banner sheet tray Type S9, 500-sheet multi-bypass banner sheet tray Type S9, Bridge unit BU5010, BDT VX 370-1280 banner sheet feeder, Plockmatic LCT3500

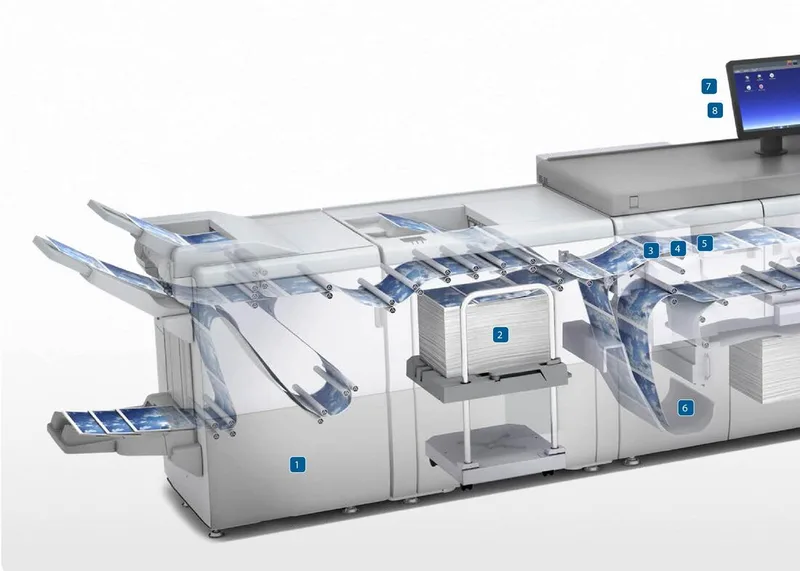

Paper output configuration - optional: 3,000-sheet finisher SR5050, 2,500-sheet booklet finisher SR5060, 2 tray cover interposer CI5030, Booklet trimmer TR5040, Ring Binder RB5020, Perfect Binder GB5010, Multi-folding unit FD5020, High-capacity stacker SK5040, Punch unit PU5020, 3,500-sheet booklet finisher SR5120, 4,500-sheet finisher SR5110, Punch unit PU5030, Trimmer unit TR5050 for booklet finisher SR5120, Cover interposer CI5040
Paper output configuration - 3rd Party: GBC StreamPunch Ultra, Plockmatic booklet maker PBM 350/PBM 500, Plockmatic high-capacity interposer HCI3500, Plockmatic multi-purpose stacker MPS1260, Plockmatic PBM 5035S long sheet stitcher, Plockmatic PBM 5035 long sheet stapler
Supported media:
Standard paper input trays 1 and 2

• Plain paper, coated paper (glossy and matte), recycled paper, pre printed, letterhead, pre-punched, tab stock1, OHP transparency, translucent paper, envelope, textured paper, label paper, NCR paper
• Note: Metallic paper, synthetic paper, water resistant paper, and magnetic paper can be fed but support is not guaranteed.

Vacuum-feed LCT RT5120

• Plain paper, coated paper (glossy and matte), recycled paper, pre printed, letterhead, pre-punched, tab stock1, OHP transparency, translucent paper, envelope, textured paper, label paper, NCR paper
• Note: Metallic paper, synthetic paper, water resistant paper, and magnetic paper can be fed but support is not guaranteed.

Vacuum-feed banner sheet tray Type S9

• Plain paper, coated paper (glossy and matte), recycled paper, pre printed, letterhead, textured paper
• Note: Pre-punched, tab stock (Tab fence is needed when printing tab stock), OHP transparency, translucent paper, metallic paper, synthetic paper, water resistant paper, magnetic paper, and label paper can be fed but support is not guaranteed.

Multi-bypass tray BY5020

• Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock1, translucent paper, envelope
• Note: Coated, textured paper, and synthetic paper can be fed but support is not guaranteed.

Duplex unit

• Plain paper, coated paper (glossy and matte), recycled paper, pre printed, letterhead, pre-punched, OHP transparency, textured paper, synthetic paper, metallic paper

Plockmatic LCT3500

• Plain paper, index paper, coated paper, recycled paper

Maximum paper size: 13" x 19.2"
Media weight (g/m2): 52–470
Limitless paper supply: Supported

Interfaces - standard:

• 10Base-T/100Base-Tx (Ethernet)
• 1000Base-T (Gigabit Ethernet)—for Fiery controller connection
• SD slot x 3—2 ports on rear, 1 port on the operation panel
• USB host x 3—2 ports on rear, 1 port on the operation panel

Interfaces - optional:
RPIP interface box Type S3With Fiery controller

• 10Base-T/100Base-Tx (Ethernet)
• 1000Base-T (Gigabit Ethernet)
• USB 2.0 x 2—rear
• USB 3.0 x 5—3 ports in Fiery Quick Touch, 2 ports on the rear

Network protocols - standard: TCP/IP (IPv4, IPv6)
Network protocols - optional:With Fiery controller

• TCP/IP (IPv4, IPv6), SMB

Print speed colour:

• 115 ppm—A4
• 62 ppm—A3
• 57 ppm—SRA3, 12" x 18"
• 32 ppm—700 mm
• 16 ppm—1,260 mm

Print speed black and white:

• 115 ppm—A4
• 62 ppm—A3
• 57 ppm—SRA3, 12" x 18"
• 32 ppm—700 mm
• 16 ppm—1,260 mm

First print time: 24 seconds
Productivity: 100%—A3
Printing process: 4-drum dry electrostatic transfer system with internal transfer belt
Printing technology: Vertical-cavity surface-emitting laser (VCSEL)
Fusing: Oil-less belt-fusing method
Toner development: PXP-EQ chemical toner, polymerisation
Print resolution: 2,400 x 4,800 dpi
Printer drivers: PCL 6, PostScript 3—optional with Fiery
Duplex printing: Standard
Envelope printing: Supported—Tray 1, Tray 2, Vacuum-feed LCT RT5120, Multi-bypass tray BY5020
Maximum printable area:

• 326 x 1,255 mm—full bleed on 3 edges except leading edge
• 323 x 700 mm—image quality guaranteed

Blank margin—uncoated media

• Leading edge: 7.0 +/- 0.5 mm1, 4.0 +/- 0.5 mm2, 2.5 +/- 0.5 mm3.
• Trailing edge: 7.0 +/- 0.5 mm1, 4.0 +/- 0.5 mm2, 2.5 +/- 0.5 mm3.

Blank margin—coated media

• Leading edge: 7.0 +/- 0.5 mm (Thick 1–4), 4.0 +/- 0.5 mm (Thick 5–7), 3.5 +/- 0.5 mm (Thick 8–9).
• Trailing edge: 7.0 +/- 0.5 mm (Thick 1–4), 4.0 +/- 0.5 mm (Thick 5–7), 3.5 +/- 0.5 mm (Thick 8–9).

Fiery controller:
EFI Fiery colour controller E-46 and E-86—optional

• The print features are provided via the external EFI Fiery E-46 or Fiery E-86 controller.

System version

• Fiery E-46: Fiery PS350 Pro
• Fiery E-86: Fiery PS350 Premium

Configuration

• External

Page Description Languages (PDLs)

• PCL 6, PostScript 3—CPSI v3020 and APPE v4.4

Print resolution

• 1,200 x 1,200 dpi, 2-bit

Printer driver fonts

• 80 fonts—PCL
• 136 fonts + 2MM—PostScript 3

Fiery menu via operation panel

• Supported

2-character controller panel

• Supported—for technical service use

Supported file formats

• PS, PDF, EPS, TIFF, PDF/VT, PPML, VPS, PCL—Fiery E-46
• PS, PDF, EPS, TIFF, PDF/VT, PPML, VPS—Fiery E-86

Variable Data Printing (VDP)

• PPML v3
• Fiery FreeForm v1 and 2.1
• PDF/VT-1 and PDF/VT-2
• Note: Creo VPS is available from EFI but not supported by Ricoh.

TotalFlow: TotalFlow Print Server R-62—optional
Other print features: Optional Auto Colour Diagnosis Unit and Image Quality Monitor

Encryption: Encryption—print
Authentication:

• Simple network security setting
• DHCP option 60 and 77

Other security features: Security features are based on the GWNX security policy, which is compliant with the latest Ricoh security specifications. The EFI Fiery E-46 and Fiery E‑86 controller security is based on the EFI Fiery security policy that is compliant with the Fiery FS350 system. Refer to your local sales company for more information.

Other supported environments:
Fiery
Windows operating system

• These Windows versions (with latest service packs) are supported for printer drivers and Fiery applications:
• Windows Vista—Home Basic, Home Premium, Ultimate, Business, Enterprise
• Windows 7—Home Premium, Professional, Ultimate
• Windows 8.1—Windows 8.1, Pro, Enterprise
• Windows 10—Home, Pro, Enterprise, Education
• Windows Server 2008—Standard, Enterprise
• Windows Server 2008 R2, 64-bit—Foundation Standard, Enterprise
• Windows Server 2012, 64-bit—Foundation, Essentials, Standard
• Windows Server 2012 R2, 64-bit—Foundation, Essentials, Standard
• Windows Server 2016, 64-bit—Standard, Essentials, MultiPoint, Premium Server

Macintosh operating system

• These Mac OS versions are supported for printer drivers:
• Mac OS v10.6, v10.7, v10.8, v10.9, v10.10, v10.11, v10.12
• HDD—for printing and utilities except Command WorkStation
• Windows—1 GB free space (2 GB recommended)
• Mac OS X—500 MB free space (1 GB recommended)

Memory (RAM)—for printing and utilities except Command WorkStation

• Windows—500 MB (2 GB recommended)
• Mac OS X—500 MB (1 GB recommended)

Networking protocols

• Windows—TCP/IP
• Mac OS X—TCP/IP, Bonjour

WebTools:

• Windows—Internet Explorer 11 or later, Firefox 48 or later, Chrome 52 or later, Microsoft Edge for client computers running Windows 10
• Mac OS—Safari 8 or later, Firefox 48 or later, Chrome 52 or later
• Note: Microsoft releases frequent updates to Internet Explorer. Because support cannot be guaranteed for all versions, use the versions specified for best results.

Command WorkStation
Windows:

• 1.0 GHz or greater Pentium 4 processor
• 1 GB RAM or more
• 16 GB HDD space free
• A monitor that supports 16-bit colour at a minimum resolution of 1,024 x 768 pixels
• TCP/IP networking protocol installed

Mac OS X:

• Safari 8 or later, Firefox 48 or later, Chrome 52 or later
• 4 GB RAM or more
• 7 GB HDD space free

Fiery Job Master (Impose and Compose) on Command WorkStation

• In addition to requirements for Command WorkStation:
• Licence activation for every client workstation
• Acrobat/PitStop software

Supported languages:
With Fiery controller

• Print, PCL 6, PostScript 3
• English, German, French, Italian, Spanish, Dutch, Czech, Polish, Russian, Turkish, Simplified Chinese, Korean, Brazilian Portuguese

Standard:

• @Remote Embedded
• Web Image Monitor
• Device SDK

Optional:

• Device Manager NX
• InfoPrint Manager
• TotalFlow BatchBuilder
• TotalFlow Prep
• TotalFlow Production Manager
• TotalFlow Supervisor
• Ricoh ProcessDirector
• FusionPro VDP Creator
• FusionPro Expression
• OL PlanetPress Connect
• PrintShop Mail
• EFI Digital StoreFront
• EFI Fiery Central
• EFI JobFlow
• EFI Impose & Compose

Power source: 220–240 V, 50/60 Hz, less than 60 A
Power consumption:

• 9,000 W or less—maximum power
• 4 W or less—Energy Saver Mode (Sleep Mode)

Power consumption—options:

• 350 W—Fiery E-46 controller
• 600 W—Fiery E-86 controller
• 1,000 W or less—4,400-sheet vacuum feed LCT RT5120
• 150 W or less—3,000-sheet finisher SR5050
• 150 W or less—2,500-sheet booklet finisher SR5060
• 250 W or less, maximum—Booklet trimmer TR5040
• 75 W or less, average—Booklet trimmer TR5040
• 150 W or less—4,500-sheet finisher SR5110
• 150 W or less—3,500-sheet booklet finisher SR5120
• 250 W or less, maximum—Trimmer unit TR5050
• 75 W or less, average—Trimmer unit TR5050
• 95 W excluding peak consumption—Cover interposer CI5040
• 400 W or less—Ring Binder RB5020
• 623 W or less—Perfect Binder GB5010
• 240 W or less—Multi-purpose folding unit FD5020
• 132 W or less—High-capacity stacker SK5040

Warm-up time:

• 540 seconds or less—mainframe
• 380 seconds or less—Perfect Binder GB5010

Sound power level:
Mainframe

• 67.5 dB—standby
• 80 dB—operating

Emission levels:
Colour mode

• Less than 0.01 mg/h—benzene
• 0.7 mg/h or less—dust
• 9.1 mg/h or less—ozone
• 0.13 mg/h or less—styrene

Black and white mode

• Less than 0.01 mg/h—benzene
• 0 mg/h or less—dust
• 3.1 mg/h—ozone
• 0.08 mg/h or less—styrene

Total Volatile Organic Compounds (TVOC):

• 0.8 mg/h—ready mode
• 3.0 mg/h—operating mode

Reduction of environmentally sensitive materials:
RoHS

• 100% lead-free solder used in PCBs—lead
• 0%—PVC
• 100% chrome-free steel plates—hexavalent chromium
• 0%—cadmium
• 0%—PBB/PBDE

Energy saving standards: Energy Star v2.0—with EFI Fiery controller
Safety standards:

• EN60950-1
• IEC60950-1

Electromagnetic Compatibility (EMC) standards:

• EN55032 Class A
• EN61000-3-2, EN61000-3-3
• EN55024
• EN301489-1, EN301489-3, EN301489-17
• EN62311
• EN50364

Identification of plastic components: All plastic components that weigh more than 25 g are identified in accordance with ISO 11469 standards.
Laser standards:

• EN60825-1
• IEC60825-1

Wireless LAN standards:

• EN300328
• EN300330
