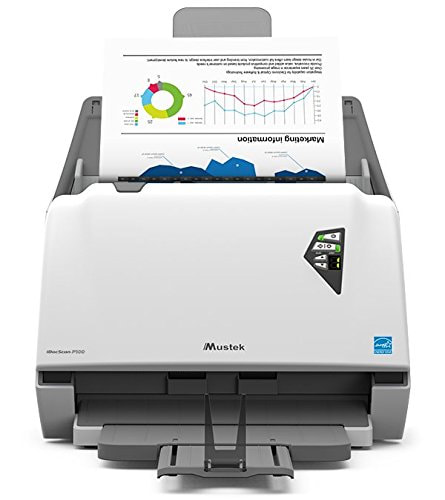

OCR Document Reader Scanner Machine
Mustek iDocScan P100
Features and Benefits
OCR Document Reader Scanner Machine Mustek iDocScan P100 includes a High capacity 120 sheet automatic document feeder (ADF) that accepts various types and sizes of scan medias from business cards to A4 documents, and even embossed plastic cards, i.e. credit cards, ID cards, etc. With all its great enhancement features, P100 can ensure reliability and productivity in high volume scanning up to 100ppm/200ipm. Additionally, its innovative ultrasonic sensor with high detection accuracy helps prevent operating errors and data loss.
Specification
- General
|
Type |
Color Duplex Sheetfed Auto Document Feeder (ADF) |
|
Scan Sensor |
Contact Image Sensor (CIS) x 2Light SourceLED (RGB) |
|
Scanning Side |
Duplex and Simplex |
|
Output Color Depth |
24 bit, Grayscale: 8 bit, B/W: 1-bitScan |
|
Speed |
55 ppm / 110 ipm (Color, 200 dpi, A4, 70 g/m² ) 100 ppm / 200 ipm (Gray, 200 dpi, A4, 70 g/m² ) 100 ppm / 200 ipm (B/W, 200 dpi, A4, 70 g/m² ) |
|
ADF Capacity |
120 Pages (at 70 g/m² ) |
|
ADF Width |
9.5” (242 mm) |
|
Scan Area |
Max. 8.5" x 14" (216 x 356 mm) Min. 2" x 3.35" (50.8 x 85.1 mm) |
|
Long Document Scanning |
up to 118” (3000mm) |
|
Optical Resolution |
600 dpi x 600 dpi |
|
Paper Weight (Thickness) |
Plain Paper: 28 ~ 312 g/m² (7 to 87 lbs) |
|
Plastic Card |
Up to 1.25mm (0.05") or less |
|
Interface |
USB 2.0 |
|
Daily Duty Cycle |
9,000 sheets |
|
Protocol |
TWAIN Compliant (for Windows XP / Vista / 7 / 8 / 8.1)Dimension12.4" x 10.7" x 11.7" (315 x 274 x 298 mm) |
|
Weight |
Approx. 9 lbs (4.1 kgs) |
|
Power Supply |
24V/1.5 A (Input : 100V ~ 240V, 50/60Hz) |
|
Operation Temperature |
10 °C - 35 °C (50 °F - 95 °F) |
