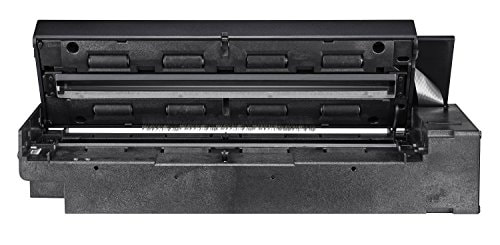

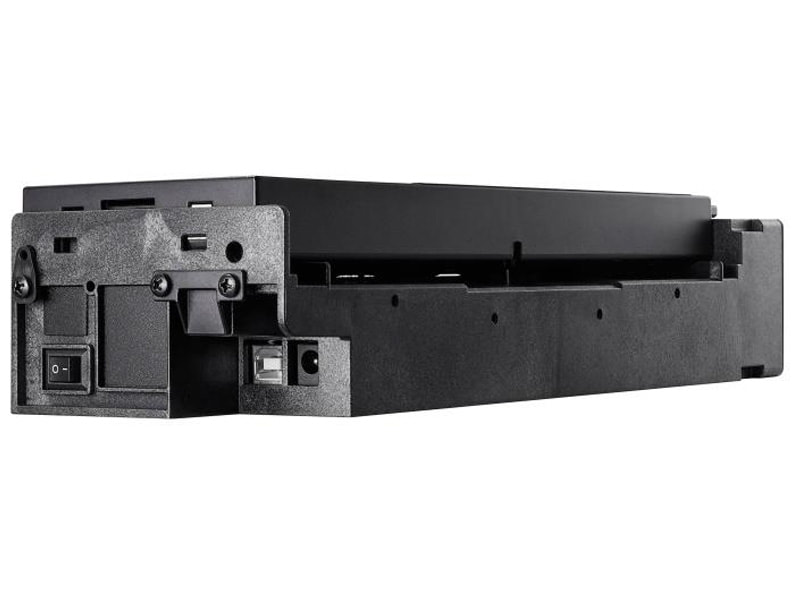

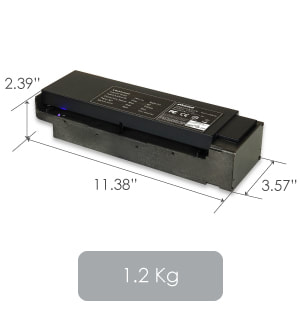

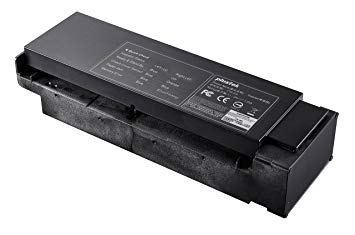

Plustek VTM300
Features and Benefits
The Plustek scan module VTM 300 is easily integrated to self-service kiosk or service desks. Design with dual paper eject output feature that provides the greatest flexibility for user from different industries to quickly complete the transaction on-spot.
- Easy to Install & Maintain
- Automatically Reclaim Document
- Retrieve paper after scanning
- Barcode Recognition
- Image Enhancement
Specification
- General
|
Image Sensor |
CIS x 2 |
|
Optical Resolution |
600 dpi |
|
Hardware Resolution |
600 x 600 dpi |
|
Scan Modes |
Color: 48-bit Input; 24-bit Output Grayscale: 16-bit Input; 8-bit Output B/W: 1-bit |
|
Scanning Speed |
Duplex: 2 sec (Color Mode, 300 dpi, A4) Note: Scanning speed varies, depending upon the scanning software, CPU and RAM of PC. |
|
Scanning Area (W x L) |
Max. 216 x 594 mm (8.5" x 23.38") Std: 210 x 297 mm (8.27" x 11.69") |
|
Acceptable Paper Sizes (W x L) |
Max.: 218 x 594 mm (8.58" x 23.38") Min.: 88 x 54 mm (3.46" x 2.13") |
|
Acceptable Paper Weight (Thickness) |
Paper: 50 g/㎡ to 250 g/㎡ Plastic card: Non-Embossed up to 1 mm & Embossed up to 1.24 mm (ISO 7810) |
|
Daily Duty Scan (Sheets) |
1000 |
|
Hardware Requirements |
Pentium® IV 2.4 GHz processor One available USB 2.0 Port 1GB RAM (2GB or higher recommended) 1GB free HDD space (2GB or larger recommended) |
|
Opretaing Environments |
Temperature: +5°C to +45°C Relative Humidity: 20% to 80% RH (No condensation) |
