Digital Press Machine

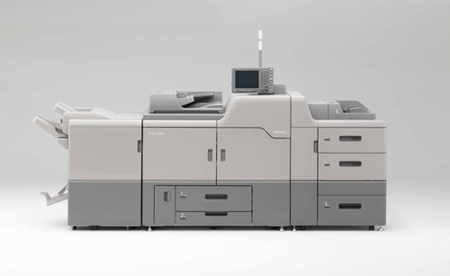

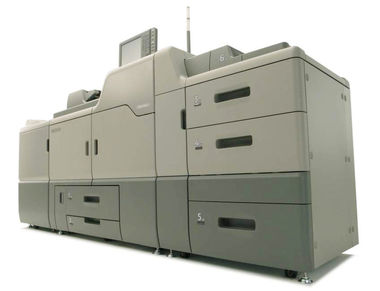

RICOH ProC651EX Color Production Printer

Main Features

Digital Press Machine Ricoh ProC651ex series takes digital light production printing to another level. It harnesses our rich heritage in research and development. It builds on our established standards of quality, reliability, efficiency and durability. And with an array of innovative technologies, it leads the way from start to finish. As the on-demand colour printing market grows, so does its needs. Innovative, cost competitive solutions are key. With superior image quality and exceptional functionality, the new Ricoh ProC651ex series offers the highest specification and reliability in its class. From start to finish, the Ricoh ProC651ex raises the standard for productivity, efficiency, quality and profitability.

Features include :

• EXTREMELY HIGH IMAGE QUALITY -

VCSEL (Vertical Cavity Surface-Emitting Laser) technology for razor sharp 4800dpi. PxP Polymerized toner and oil less fusing technology for accurate, smooth offset-like image quality.

• OUTSTANDING MEDIA VERSATILITY -

Broad media support, improved fusing unit and high productivity regardless

of paper thickness up to 300gsm.

• EXCEPTIONAL DURABILITY -

180k maximum monthly volume, 65 or 75ppm colour/mono (A4).

• MAXIMUM UPTIME -

New liquid cooling system enabling extended and continuous printing, enhanced ORUs (Operator Replaceable Units) and toner bottles, waste toner and media changes on the fly

GENERAL

Technology 4-drum dry electrostatic transfer system with internal transfer belt

Fusing Oil less belt-fusing method

Toner Type PxP™ polymerized chemical toner

Print speed Pro™ C651EX: Full color / mono: 65ppm   Pro™ C751EX/C751: Full color / mono: 75ppm

Resolution 1,200 x 4,800 dpi

Warm-up time Less than 300 seconds

Dimensions (W x D x H) Pro™ C651EX/C751EX: 1,320 x 910 x 1,230mm

Weight Pro™ C651EX/C751EX: Less than 580 kg

Power source 220-240V, 16 Amps, 50/60 Hz

Power consumption Printing: Less than 4000W

Duty cycle 350,000 pages per month

SCANNER FEATURE

Resolution (Default) dpi: 100/150/(200)/300/400/600

Twain B/W: 100-1,200 dpi

Twain Color: 100-1,200 dpi

Scan Speed Mono: 75 ppm

Color: 75 ppm, Scan speed (A4 LEF, 200 dpi)

Max Scan Area : 297 x 432mm

MEDIA HANDLING

Paper Input Capacity Standard: 2 x 1,000 sheets, 1 x 500 sheets

SRA3 Large Capacity Tray (LCT): 2 x 1,000 sheets & 1 x 2,000 sheets

Multi bypass tray option: 500 sheets

Max. Input Capacity 7,000 sheets (including Multi Bypass Tray)

Max. Output Capacity 8,250 sheets (when stacker and standard finisher connected)

Paper Size Maximum: 330.2 x 487.7mm

Printable Area Maximum: 323 x 480mm

Paper Weight Tray 1/4: 52.3-300gsm   Tray 2,3,5: 52.3-256gsm

PRINTER SERVER

E-41A Technology Fiery System 9 Release 2

Configuration External

CPU Intel Core 2 Duo E8400 3.0GHz

Memory 2GB

HDD 160GB

DVD-ROM Drive Supported

Operating System Windows XP Professional

x64 Edition         Network Protocol TCP/IP, (IPv4, Ipv6)

Apple Talk, SMB         PDL Postscript 3, PCL 5c, PCL 6

Supported Data Format PDF, TIFF, JPEG

VDP PPML, Fiery Free Form v.1 & 2.1

Font 136 + 2MM         Network Interface Ethernet 1000/100/10base-Tx2

Service Interface USB x 8 (Front 2, Back 6)

PS2 with USB, USB Mouse,

USB Keyboard

OTHER OPTIONS

Ricoh Professional Booklet maker with optional fore-edge trimmer,

Plockmatic Booklet maker with square fold option, cover inserter and fore-edge trimmer,

GBC StreamPunch™ PRO EX, VM card, 500-sheet Multi Bypass tray,

Punch unit (2/4 switchable hole punch, Scandinavian 4 hole punch), DLT/A3 tray,

Tab sheet unit, Two Tray Cover Interposer, 3,000-sheet Standard Finisher,

Ring Binder unit, 2 x 1,000-sheet & 1 x 2,000-sheet SRA3 Large Capacity trays,

Counter Interface unit Type A, Buffer Pass unit, EFI Server FACI Furniture Bundle (for E-41A),

EFI Server HDD Security (for E-41A), Spectrophotometer ES-1000 UV Filter,

Spectrophotometer ES-1000 Non-UV Filter,

Stacker with single connection, Roll away cart for stacker,

De-curler unit, Multi Folding unit, Trained Customer Replaceable units.

WORKFLOW SOLUTIONS

EFI™ Digital StoreFront®, EFI™ Color Profiler Suite, EFI™ Fiery® Graphic Arts Package Premium Edition, EFI™ SeeQuence Compose, SeeQuence Impose, SeeQuence Suite, DirectSmile®, Objectif Lune PlanetPress, Objectif Lune PrintShop Mail, Fusion Pro

ENVIRONMENTAL INFORMATION

Energy Star 1.1 standards
