Best Digital Press Printer

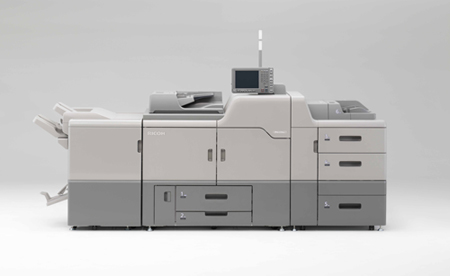

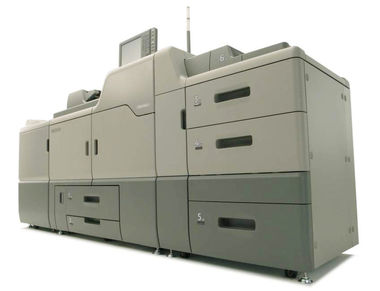

Ricoh ProC751ex Digital Color Production Printer

Main Features

Best Digital Press Printer Ricoh ProCC751ex series takes digital light production printing to another level. It harnesses our rich heritage in research and development. It builds on our established standards of quality, reliability, efficiency and durability. And with an array of innovative technologies, it leads the way from start to finish. As the on-demand color printing market grows, so does its needs. Innovative, cost competitive solutions are key. With superior image quality and exceptional functionality, the new Best Digital Press Printer Ricoh ProC751ex series offers the highest specification and reliability in its class. From start to finish, the Pro™ C751 raises the standard for productivity, efficiency, quality and profitability. Features include:

• EXTREMELY HIGH IMAGE QUALITY -

VCSEL (Vertical Cavity Surface-Emitting Laser) technology for razor sharp 4800dpi. PxP Polymerized toner and oil less fusing technology for accurate, smooth offset-like image quality.

• OUTSTANDING MEDIA VERSATILITY -

Broad media support, improved fusing unit and high productivity regardless

of paper thickness up to 300gsm.

• EXCEPTIONAL DURABILITY -

180k maximum monthly volume, 65 or 75ppm color / mono (A4).

• MAXIMUM UPTIME -

New liquid cooling system enabling extended and continuous printing, enhanced ORUs (Operator Replaceable Units) and toner bottles, waste toner and media changes on the fly

GENERAL

Technology 4-drum dry electrostatic transfer system with internal transfer belt

Fusing  Oil less belt-fusing method

Toner Type PxP™ polymerized chemical toner

Print speed Pro™ C651EX: Full color / mono: 65ppm     Pro™ C751EX/C751: Full color / mono: 75ppm

Resolution 1,200 x 4,800 dpi

Warm-up time Less than 300 seconds

Dimensions (W x D x H) Pro™ C651EX/C751EX: 1,320 x 910 x 1,230mm

Weight Pro™ C651EX/C751EX: Less than 580 kg

Power source 220-240V, 16 Amps, 50/60 Hz

Power consumption Printing: Less than 4000W

Duty cycle 350,000 pages per month

SCANNER FEATURE

Resolution (Default) dpi: 100/150/(200)/300/400/600

Twain B/W: 100-1,200 dpi      Twain Color: 100-1,200 dpi

Scan Speed  Mono: 75 ppm     Color: 75 ppm, Scan speed (A4 LEF, 200 dpi)

Max Scan Area  297 x 432mm

MEDIA HANDLING

Paper Input Capacity  Standard: 2 x 1,000 sheets, 1 x 500 sheets

SRA3 Large Capacity Tray (LCT): 2 x 1,000 sheets & 1 x 2,000 sheets

Multi bypass tray option: 500 sheets

Max. Input Capacity  7,000 sheets (including Multi Bypass Tray)

Max. Output Capacity 8,250 sheets (when stacker and standard finisher connected)

Paper Size  Maximum: 330.2 x 487.7mm

Printable Area  Maximum: 323 x 480mm

Paper Weight  Tray 1/4: 52.3-300gsm      Tray 2,3,5: 52.3-256gsm

PRINTER SERVER

E-41A   Technology Fiery System 9 Release 2

Configuration External

CPU Intel Core 2 Duo E8400 3.0GHz

Memory 2GB

HDD 160GB

DVD-ROM Drive Supported

Operating System Windows XP Professional

x64 Edition               Network Protocol TCP/IP, (IPv4, Ipv6)

Apple Talk, SMB               PDL Postscript 3, PCL 5c, PCL 6

Supported Data Format PDF, TIFF, JPEG

VDP PPML, Fiery Free Form v.1 & 2.1

Font 136 + 2MM               Network Interface Ethernet 1000/100/10base-Tx2

Service Interface USB x 8 (Front 2, Back 6)

PS2 with USB, USB Mouse,

USB Keyboard

OTHER OPTIONS

Ricoh  Professional Booklet maker with optional fore-edge trimmer,

Plockmatic  Booklet maker with square fold option, cover inserter and fore-edge  trimmer,

GBC StreamPunch™ PRO EX, VM card, 500-sheet Multi Bypass tray,

Punch unit (2/4 switchable hole punch, Scandinavian 4 hole punch),  DLT/A3 tray,

Tab sheet unit, Two Tray Cover Interposer, 3,000-sheet  Standard Finisher,

Ring Binder unit, 2 x 1,000-sheet & 1 x  2,000-sheet SRA3 Large Capacity trays,

Counter Interface unit Type A,  Buffer Pass unit, EFI Server FACI Furniture Bundle (for E-41A),

EFI  Server HDD Security (for E-41A), Spectrophotometer ES-1000 UV Filter,

Spectrophotometer ES-1000 Non-UV Filter,

Stacker with single connection,  Roll away cart for stacker,

De-curler unit, Multi Folding unit, Trained  Customer Replaceable units.

WORKFLOW SOLUTIONS

EFI™  Digital StoreFront®, EFI™ Color Profiler Suite, EFI™ Fiery®  Graphic  Arts Package Premium Edition, EFI™ SeeQuence Compose, SeeQuence  Impose,  SeeQuence Suite, DirectSmile®, Objectif Lune PlanetPress,  Objectif Lune  PrintShop Mail, Fusion Pro

ENVIRONMENTAL INFORMATION                Energy Star 1.1 standards
