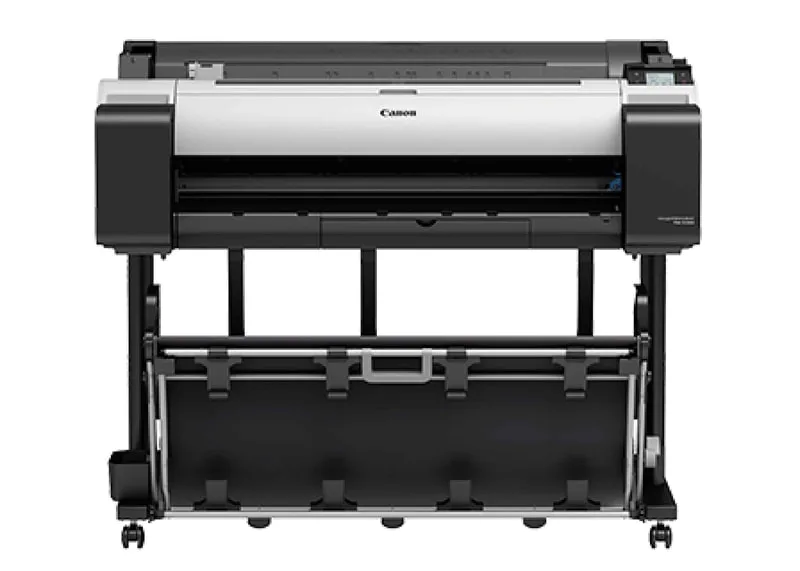

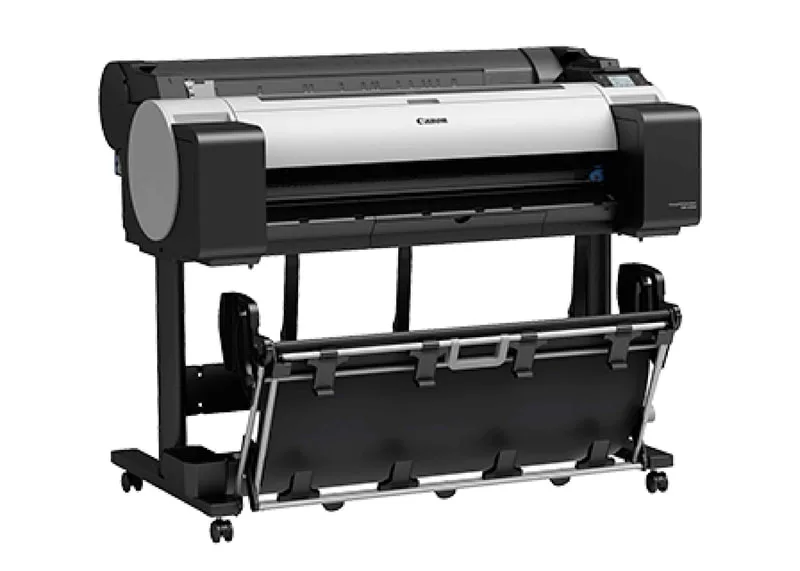

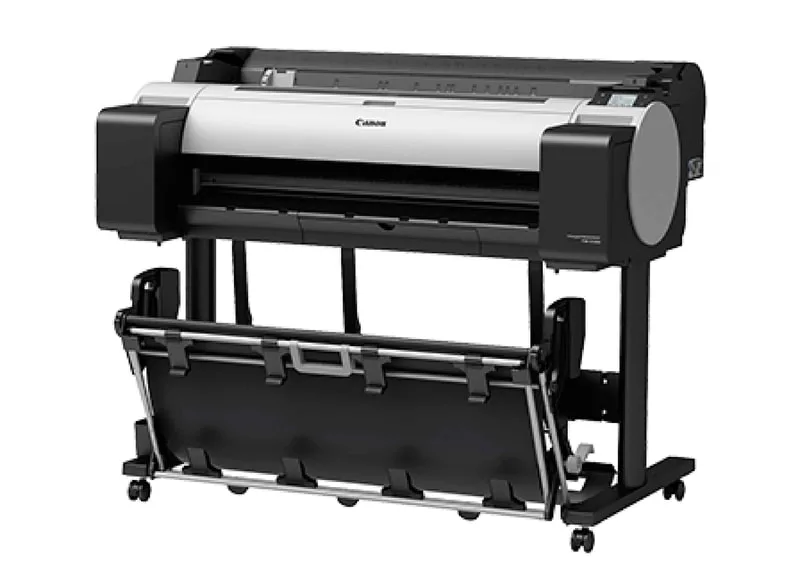

Canon imagePROGRAF TM5300

A0 Large Format Printer Canon TM5300 is a A0 Printer 36 inch Plotter with Print Plot function.
  • 5-colour pigment ink ( Print out is water proof and heat proof)​
  • Ultra quiet operation
  • 36 inch / 914mm
  • Compact footprint
  • Ideal for high quality CAD/GIS and posters
Image description
PosterArtist Lite

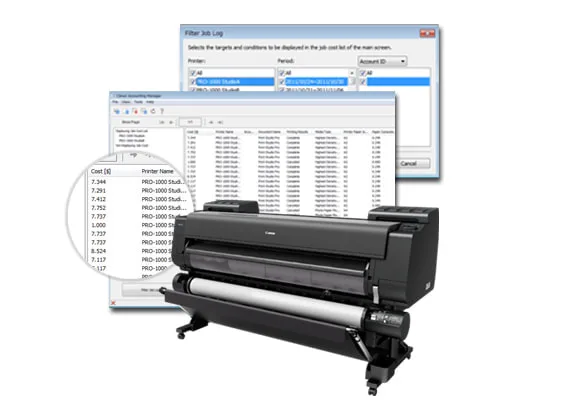

Accounting Manager
 Media Configuration Tool
  • Specifications
  • Brochure
  • Video
Printer






​
Printer Type: 5-Colour, 36" / 914 mm
Number of Nozzles: 15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each)
Print Resolution: 2400 x 1200 dpi
Nozzle Pitch: 1200 dpi (2 lines)
Line Accuracy: ±0.1% or less
Min. Ink Droplet Size: 5 pl
Ink Capacity
  • Sales Ink: 130 ml / 300 ml (MBK, BK, C, M, Y)
  • Bundled Starter Ink: 130 ml (MBK) / 90 ml (BK, C, M, Y)
Ink Type: Pigment Ink: Matte Black, Black, Cyan, Magenta, Yellow
Printer Language
  • SG Raster (Swift Graphic Raster)
  • HP-GL/2
  • HP RTL
  • JPEG (Ver. JFIF 1.02)
Standard Interfaces (Built-in)
  • USB B Port:
           Hi-Speed USB
           Full Speed (12 Mbit/sec)
           High Speed (480 Mbit/sec)
           Bulk Transfer
           Series B (4 pins)
  • Gigabit Ethernet:
           IEEE 802.3 10base-T
           IEEE 802.3u 100base-TX/Auto-Negotiation
           IEEE 802.3ab 1000base-T/Auto-Negotiation
           IEEE 802.3x Full Duplex
  • Wireless LAN:
           IEEE802.11n/g/b
  • Memory (Standard)
           ​2 GB
Hard Disk: N/A
​
Printing Speed
CAD Drawing - Plain Paper (A0)
  • 40 sec (Fast Economy Mode)
  • 48 sec (Fast)
  • 1 min 14 sec (Standard)
CAD Drawing - Heavyweight Coated Paper HG (A0)
  • 47 sec (Fast Economy Mode)
  • 1 min 11 sec(Fast)
  • 2 min 18 sec (Standard)
Poster - Plain Paper (A0)
  • 44 sec (Fast Economy Mode)
  • 44 sec (Fast)
  • 1 min 18 sec (Standard)
Poster - Heavyweight Coated Paper HG (A0)
  • 1 min 41 sec (Fast)
  • 2 min 36 sec (Standard)
Media Handling














​
Media Feed Method
  • Roll Paper: One Roll, Upper Load, Front Output
  • Cut Sheet: Upper Load, Front Output
  • (Manual feed using media locking lever)
Media Output (SD-23)
  • Standard Position: 1 Sheet
  • Folding Position: 20 sheets on A1 portrait/A0 portrait
  • Flat Position: 20 sheets on A1 landscape/A2 landscape
Media Width (Roll / Cut Sheet): 203.2 - 917 mm
Media Thickness (Roll / Cut Sheet): 0.07 - 0.8 mm
Minimum Printable Length
  •  Roll Paper: 203.2 mm
  • Cut Sheet: 279.4 mm
Maximum Printable Length
  • Roll Paper: 18 m (varies according to the OS and application)
  • Cut Sheet: 1.6 m
Maximum Media Roll Outer Diameter: 150 mm or less
Borderless Printing Width (Roll Only)
  • Recommended: 515 mm (B2), 728 mm (B1), 594 mm (A1), 841 mm  A0), 10", 14", 17", 24", 36"
  • Printable: 257 mm (B4), 297 mm (A3), 329 mm (A3+), 420 mm (A2), 8", 12", 16", 20", 30", 300 mm, 500 mm, 600 mm, 800 mm
Dimensions & Weight
Physical Dimensions & Weight (Include roll holder Set, exclude ink and print head)
  • Main Unit + Stand + Basket (SD-32):
           Approx. 1289 x 887 x 1060 mm (Basket Open)
           Approx. 1289 x 757 x 1060 mm (Basket Closed)
           Approx. 60 kg
Packaged Dimensions & Weight
  • Main Unit + Stand + Pallet:
           Approx. 1462 x 913 x 961 mm
           ​Approx. 105 kg
Power & Operating Requirements
Power Supply: AC 100 - 240 V, 50 - 60 Hz
Power Consumption
  • Operation: 69 W or less
  • Sleep Mode: 3.6 W or less
  • Power Off: 0.3 W or less
Operating Environment
  • Temperature: 15 - 30°C
  • Humidity: 10 - 80 % RH (no dew condensation)
Acoustic Sound (Measured using ISO 7779 standard)
  • [Acoustic Pressure]
           Operation: 44 dB(A)
           (Plain Paper, Line Drawing; Print Priority - Standard)

  • Standby: 35 dB(A) or less

  • [Acoustic Power]
           Operation: 60 dB
           ​(Plain Paper, Line Drawing; Print Priority - Standard)
Options
2"/3" Roll Holder: RH2-35
