Product > Interactive Whiteboards > IWB D7510
Smart Whiteboard for Classroom & Meeting Room

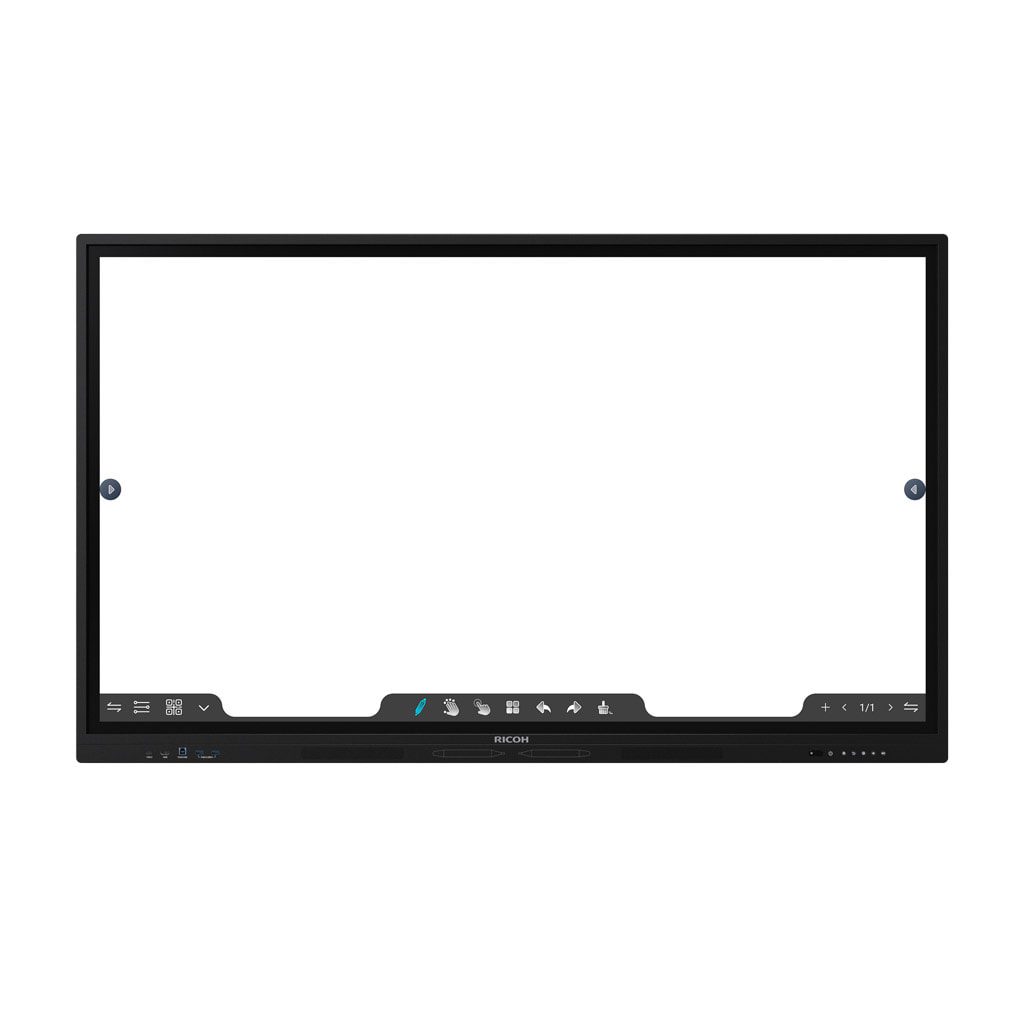

RICOH Interactive Whiteboard A7500
Features and Benefits
Interactive whiteboard
- 75" touchscreen
- 3,840 x 2,160 pixels
- 400 cd/m2 brightness
- Plug and Play Android apps
- Embedded with Android OS, you can use all your favourite apps. Many apps are preloaded and ready for use to save you time, such as the whiteboard and wireless presentation apps.
- Simple connectivity and usability
It’s easy to sync your device to the screen, simply choose how you connect – HDMI, USB or USB Type-C. - Useful picture-in-picture function
A picture can speak a thousand words – so add an image to your whiteboard with the picture-in-picture function. This could be data, charts or stock shots that help get your point across. - Effective split-screen presentation
Using two screens is a standard most expect in work and presentations. Run two different apps or images side by side with the interactive whiteboard and get more from your meetings.
- Specification
- Brochure
- Video
|
Configuration |
Touch pen 2 pcs Read this first and Quick Guide In English, French, German, Spanish, Brazilian Portuguese Remote controller Yes Batteries for remote controller 2 x AAA batteries Power cord Yes USB-C cable Yes—2 m USB A-B cable Yes—3 m HDMI 2.0 cable Yes—3 m Plastic clamp 2 pcs |
|
Physical Dimension |
Physical dimensions (WxDxH)—mainframe 1,723 x 88 x 1,035 mm Weight—mainframe 51 kg |
|
Optical and audio systems |
Panel size 75 inches Backlight D-LED Effective display area 1,649.664 x 927.936 mm Resolution 3,840 x 2,160 pixels Colour reproduction 1.07 billion colours (8-bit + Frame rate control) Brightness 400 cd/m2—typical Contrast 1200:1 Pixel pitch 0.4296 mm Response speed 8 ms Viewing angle HV 178 degrees Audio Rear 1 x 3.5 mm mic and other audio source in 1 x 3.5 mm audio out 1 x SPDIF VideoRear 2 x HDMI 2.0 in 1 x DisplayPort in 1 x VGA in 1 x USB 2.0 Type A 2 x USB 3.0 Type A 1 x HDMI 2.0 out Front 1 x HDMI 2.0 in |
|
Touch Systems |
Touch technology Infrared touch frame Touch points 20 Touch resolution 32,768 x 32,768—interpolated Touch output HID Standard, USB 2.0 full speed Touch panel cover glass 3.2 mm toughened glass |
|
Connectivity |
Interfaces - standard Rear 2 x HDMI 2.0 in 1 x DisplayPort in 1 x VGA in 1 x Audio in 2 x LAN—10/1000 Base-T, 100 Base-TX (to OPS), 10/1000 Base-T (to Android) 1 x USB 2.0 Type A 2 x USB 3.0 Type A 1 x USB 3.0 Type B—touch interface 1 x Mic in 1 x SPDIF in 1 x HDMI 2.0 out 1 x Audio out 1 x RS-232 in Front 1 x USB Type C 2 x USB 3.0 Type A 1 x USB 3.0 Type B—touch interface for HDMI 1 x HDMI 2.0 in—HDCP compliant Interfaces - optional With Ricoh IWB Controller OP-5 Type 2 10Base-T/100Base-Tx/1000Base-T Bluetooth—embedded IEEE 802.11 ac/a/b/g/n/ax 1 x HDMI output 2 x USB 3.0 Type A 2 x USB 2.0 Type A 1 x USB Type C 1 x 3.5 mm mic jack 1 x 3.5 mm headphone jack |
|
Supported operating environments |
Windows System Windows 10 Professional, 64-bit *This device meets the system requirements to install Windows 11. Multi-touch Windows 7, 8, 10 Single-touch Windows XP Macintosh Single-touch Mac OS X Supported languages On-screen display Japanese, English, French, German, Italian, Spanish, Dutch, Danish, Russian, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese, Czech, Romanian, Greek, Turkish, Simplified Chinese |
|
Environmental features |
Power source 100–240 V, 50–60 Hz Power consumptionWithout optional controller Without optional controller 380 W—max brightness 260 W—typical 0.5 W or less—standby Environmental standards REACH ErP Lot 5 EU battery (2006/66/EC) EU packaging (94/62/EC) WEEE RoHS EN63000 (CE marking) Safety standards EN62368-1 (CE marking) EN62368-1 (TUV) IEC60950-1 / IEC62368-1 (CB attestation) TH-A (Thailand) Electromagnetic Compatibility (EMC) standards EN55035, EN55032, EN61000-3-2, EN61000-3-3 (CE marking) AS / NZS CISPR32 (C-Tick) (Australia / NZ) HK EMC (Hong Kong) EN62311 (CE marking) Wireless LAN standards EN300328 / EN301893 (CE marking) EN301489-1 / EN301489-17 (CE marking) EN300328 / EN301893 (RCM) (Australia / NZ) EN301489-1 / EN301489-17 (RCM) (Australia / NZ) Operating environmentTemperature Temperature 0–32ºC—operating -10–50ºC—storage Humidity 20–80%—operating 15–80%—storage |
