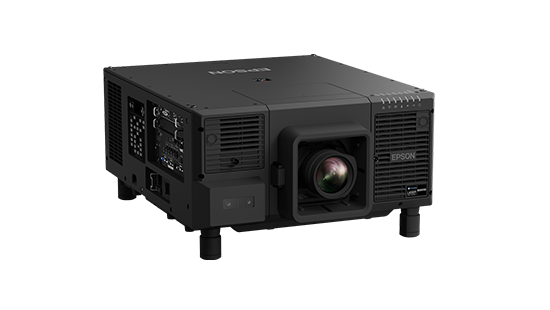

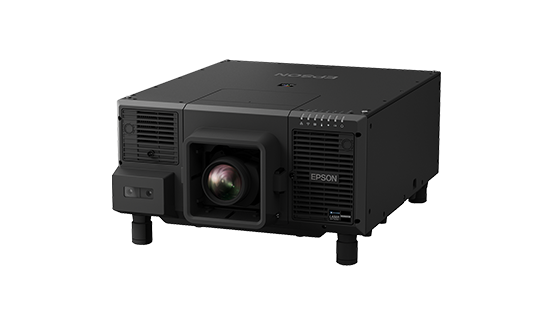

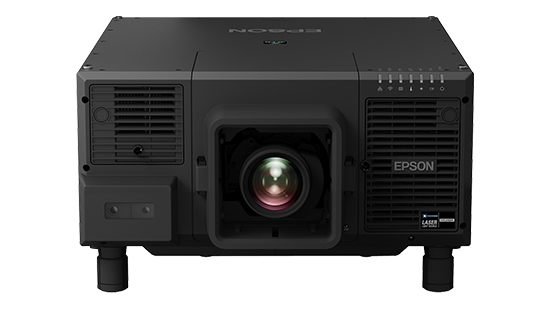

Epson EB-L20000UNL Laser WUXGA 3LCD Projector
Amazingly bright and reliable.
Features and Benefit
With the EB-L20000UNL high brightness laser projectors, make a strong impression on a larger stage.
Enjoy ease of mobility and installation flexibility with a strong design that is very reliable and protected by a triple-layered dust-proof structure. With 360° rotation, tilt adjustment, and a wide range of lenses, it is incredibly adaptable to any setting or application.
Enjoy ease of mobility and installation flexibility with a strong design that is very reliable and protected by a triple-layered dust-proof structure. With 360° rotation, tilt adjustment, and a wide range of lenses, it is incredibly adaptable to any setting or application.
- White and Colour Brightness at 20,000 lumens
- WUXGA (1920 x 1200) Resolution
- HDBaseT Connectivity
- Specifications
- Brochure
|
Specifications of Main Parts: |
LCD: Native Resolution: WUXGA (1920x1200) Size: 1.03” (D11) Lightsource: Type: Laser Diode Life (Normal/Eco): 20,000 / 30,000 hours Projection Lens: Lens Exchange: Yes Lens Shift - Vertical (Up/Down): ±60 % Focal Length: 36.0 - 57.3 mm Throw Ratio: 1.57 - 2.56 Lens Shift - Horizontal (Left/Right): ±18 % F-Number: 1.8 - 2.3 Type: Power Zoom, Power Focus Zoom Ratio: 1 - 1.61 Lens Shift - Mode: Powered |
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Connectivity: |

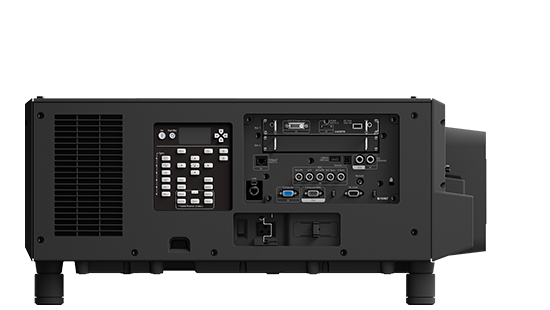

Network: Wired LAN: RJ45 x1 (etherCON) Wireless: 1 Analog Input: Mini D-Sub 15Pin: 1 BNC: 1 Digital Input: HDBaseT: 1 (RJ45) SDI: 1 (SD-SDI, HD-SDI, 3G-SDI) Expansion Interface Slot: Factory Set - Slot 2: Blank Quantity: 2 Factory Set - Slot 1: ELPIF01 (HDMI & DVI-D) Expansion Interface Board: ELPIF03 - DisplayPort In: 2 (DP 20p) ELPIF01 - HDMI: 1 (HDMI 19p) ELPIF01 - DC OUT: 1 ELPIF01 - DVI-D: 1 Analog Output: Mini D-Sub 15Pin: 1 Control I/O: RS-232C: 1 Remote Control Input: 1 (Stereo Mini) Digital Output: BNC: 1 Others: USB Type A: 1 (for Firmware Update, Copy OSD Settings, DC Out 900mA) USB Type B: 1 (for Firmware Update, Copy OSD Settings) |
|
Contrast Ratio: |
Contrast Ratio: Over 2,500,000:1 |
|
Wireless Specifications (Wireless LAN: Built-in): |
Supported Speed for Each Mode: IEEE 802.11b (2.4GHz): 11 Mbps*2 IEEE 802.11g (2.4GHz): 54 Mbps*2 IEEE 802.11n (2.4GHz): 130 Mbps*2 IEEE 802.11a (5GHz): 54 Mbps*2 IEEE 802.11n (5GHz): 270 Mbps*2 Wireless LAN Security: Quick Mode: OPEN, WPA2-PSK, Advanced Mode: OPEN, WPA/WPA2-PSK, WPA-Enterprise |
|
Screen Size (Projected Distance): |
Zoom : Wide: 60” - 1000” [1.99 - 34.43 m] Zoom : Tele: 60” - 1000” [3.26 - 55.63 m] |
|
Geometric Correction: |
Vertical/Horizontal Keystone: ±44° / ±30° (TBD) Curve Surface: Yes Corner Wall: Yes Point Correction: Yes Quick Corner: Yes |
|
Operating Temperature: |
Operating Temperature: 0 - 50 °C <32 - 122 °F> (low altitude) 0 - 45 °C <32° - 113 °F> (high altitude) |
|
Operating Altitude: |
Operating Altitude: 0 - 3,048 m (0 - 10,000 ft) |
|
Start-Up Period: |
Start-Up Period: Less than 16 seconds, Warm-up period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant Off or 0 second |
|
Direct Power On/Off: |
Direct Power On/Off: Yes |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 280 x 720 x 620 mm |
|
Power Supply Voltage: |
Power Supply Voltage: 100 - 120 V AC, 200 - 240 V AC +/- 10 %, 50/60 Hz |
|
Weight: |
Weight: Approx. 109.3 lbs. / 49.6 kg |
|
Air Filter: |
Maintenance Cycle: 20,000 hours *3 |
|
Fan Noise: |
Fan Noise (Normal / Eco): 45 / 38 dB |
|
Power Consumption (220 - 240V): |
Lamp On (Normal/Eco): 1860W / 1123W Stand By (Network On / Off): 2W / 0.5W |
|
Brightness*1: |
White Light Output (Normal/Eco) :20,000 / 14,000 lm Colour Light Output: 20,000 lm Light Output (Center): 21,600lm* |
