Papan Tulis Pintar Ricoh Interactive Whiteboard D5530
Features and Benefits

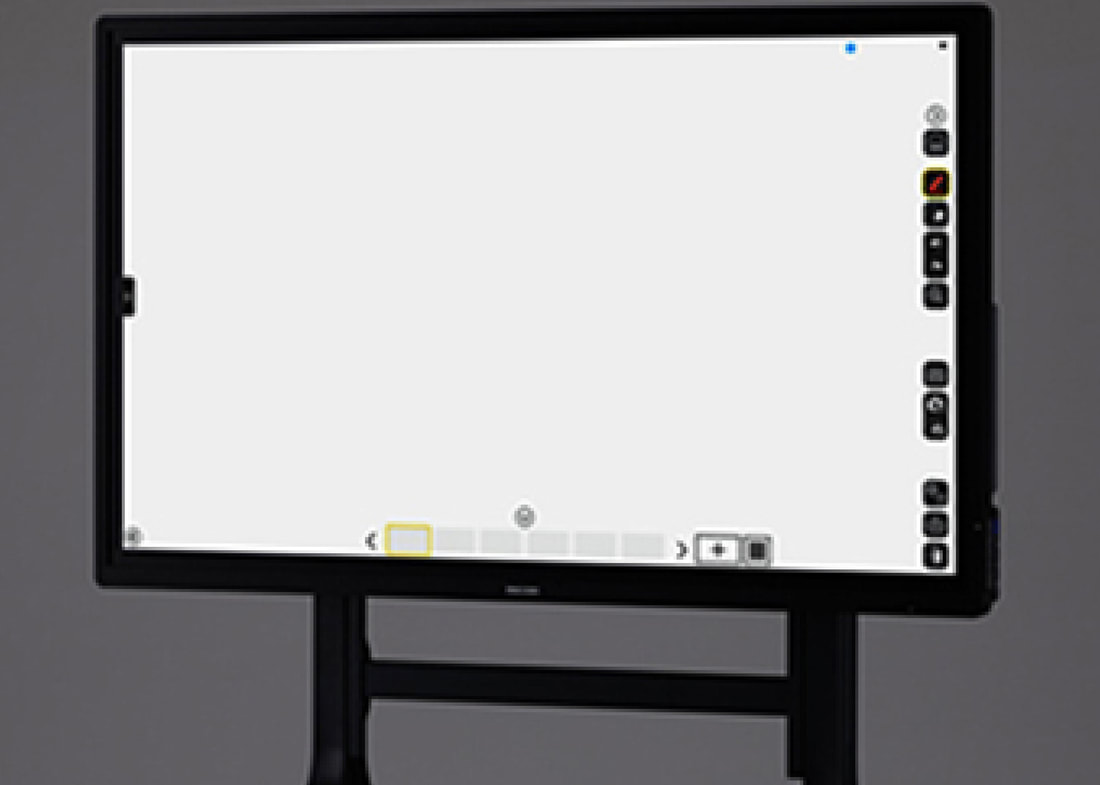

The Ricoh Collaboration Board D5530 is an all-in-one collaboration hub.
- One-stop collaboration hub with precise document annotation capabilities
- 4K display bringing high quality and detailed images
- InGlass™ by FlatFrog and Optical Bonding technologies realizing smaller parallax & accurate pen response for a greater writing experience
- Intuitive UI/UX with motion detection to attract people attention and save your steps to start a meeting
- Landscape and Portrait orientation
- Video conference-ready with built-in speakers
- Compatible with Pexip, Skype for Business, Microsoft Teams and Zoom
- Designed for ease of use with a choice between a RICOH or an OS free controller, allowing you to work the way that suits you best
- Includes a variety of connectivity options, including multiple USB ports and Bluetooth connectivity for smart devices
- Dust- resistant function ideal for construction sites and factories
- DICOM SIM projection mode for medical training
Specifications
- Specification
- Brochure
- Video
|
GENERAL |
Interface (input) - Video: VGA, HDMI, DisplayPort™ Interface (input) - Audio: Line 3.5 mm Interface (output) - Video: DisplayPort™ Interface (output) - Audio: Speaker-out Interface (output) - Control: USB3.0 Type B Enhanced features: Text OCR, Network folder, Remote web browser viewing, Finger touch highlight, Zooming, Remote sharing function, Remote PC operation, E-mail function, Print function Built-in speaker: 12 W x 2 Dimensions (W x D x H): 1,290 x 78 x 773 mm Weight - Mainframe: 35 kg Weight - Full configuration: 37 kg Power source: 100 - 240 V, 50/60 Hz Control: RS-232C(PC-control) Motion detection sensor: Yes Dust resistant function: IP5X equivalent |
|
ECOLOGY |
Power consumption - Maximum: Less than 350 kW Power consumption - Stand-by mode: 0.3 W Operating temperature: 0°C - 32°C Operating humidity: 10% - 80% Altitude limitation: 2,500 m (8,202 ft) Storage conditions: 15% - 80% |
|
DISPLAY PANEL |
Panel size - Diagonal: 55" wide ( mm) Backlight: DLED system Effective display area (W x H): 1,209.6 x 680.4 mm Resolution - Maximum: 3,840 x 2,160(4K) Colour - Maximum: Over 10,700,000 colours Brightness - Maximum: 440 cd/m² Aspect ratio: 16 : 9 Contrast ratio: 4,000 : 1 Pixel pitch: 0.315 x 0.315 mm Response speed: 8 ms (Grey to Grey, Ave.) Viewing angle (H/V): 178°/178° (Contrast ratio >= ) Cover glass - Thickness: 2mm Cover glass - Anti-glare: AG pre-treated, AF (Anti-fingerprint) Display orientation: Landscape, Portrait |
|
TOUCH SYSTEM |
Touch technology: InGlass™, Optical bonding Touch point: 20 point (display only) Touch resolution: 19,353 x 10,886 Touch pen request: >= 2 mm Touch output: USB 3.0 (type B) Multi touch: Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 IoT, Windows Embedded 7 Standard, Windows 10 Enterprise Single touch: Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 7 P, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 Enterprise, Windows 10 IoT, Mac OS X 10.8 - Mac OS X 10.15 |
