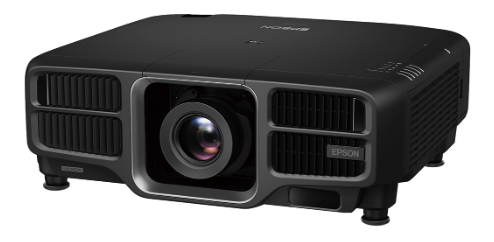

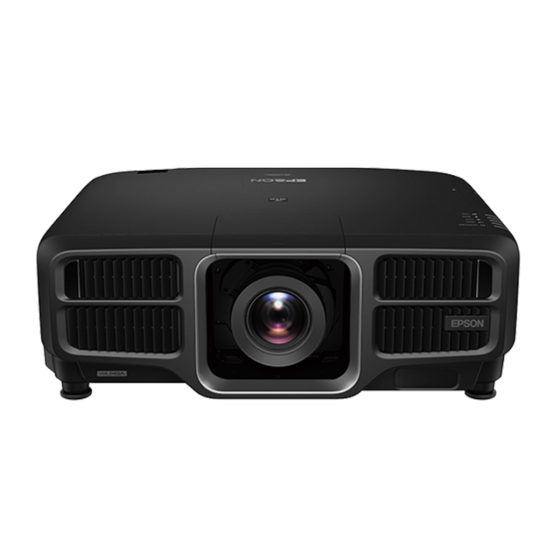

Epson EB-L1505UHNL Laser WUXGA 3LCD Projector
Laser projections that last longer will help you cover more ground
Features and Benefit
The Epson EB-L1505UHNL projector is made to provide unwavering laser performance, from any position to most surfaces, for up to 20,000*3 long-lasting hours without requiring maintenance.
- White and Colour Brightness at 12,000lm
- WUXGA (1920 x 1200)
- Edge-blending to create large panoramic images
- Curve and corner wall projection
- HDBaseT
- Specifications
- Brochure
|
Projectors Facets: |
Resolution, Projectors Facets: WUXGA Contrast Ratio, Projectors Facets: Over 2,500,000:1 Brightness Range Lumens, Projectors Facets: 10001 Features, Projectors Facets: Wifi Quick Corner Edge Blending Lens Interchangeable Curve Corner wall 4k enhancement Laser / Lamp, Projectors Facets: Laser |
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Eco Features |
RoHS compliant Recyclable product10 Epson America, Inc. is a SmartWay® Transport Partner11 |
|
Specifications of Main Parts: |
LCD: Size: 1.03” (D10) Native Resolution: WUXGA (1920 x 1200) Lightsource: Type: Laser Diode Life (Normal / Extended): 20,000 / 30,000 hours |
|

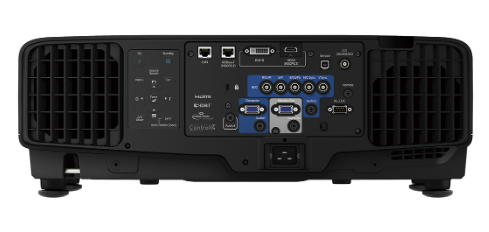

Connectivity: |
Network: Wired LAN: RJ45 x 1 Wireless: Optional Analog Input: D-Sub 15 pin: 1 (Blue) 5BNC: 1 Digital Input: DVI-D: 1 HDBaseT: RJ45 x 1 HDMI: 1 SDI: 1x Output Terminal: D-Sub 15Pin: 1 Audio Input: Stereo Mini Jack: 3 Audio Output: Stereo Mini Jack: 1 Control I/O: RS-232C: D-Sub 9Pin x 1 Remote Control Input: Stereo Mini Jack x 1 Others: USB Type A: 1 (for Wireless LAN, Firmware Update, Copy OSD Settings) USB Type B: 1 (for Firmware Update, Copy OSD Settings) |
|
Contrast Ratio: |
Contrast Ratio: Over 2,500,000:1 |
|
Wireless Specifications (Wireless LAN: Built-in): |
Supported Speed for Each Mode: IEEE 802.11b: 11Mbps*2 IEEE 802.11g: 54Mbps*2 IEEE 802.11n: 130Mbps*2 Wireless LAN Security: Quick Mode: OPEN, WPA2-PSK Advanced Mode: OPEN, WPA/WPA2-PSK, WPA/WPA2-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP |
|
Screen Size (Projected Distance): |
Zoom : Wide: 60” - 500” [1.99 - 17.17 m] Zoom : Tele: 60” - 500” [3.26 - 27.77 m] |
|
Geometric Correction: |
Vertical/Horizontal Keystone: ±45° / ±30° (Zoom: Tele) (with Standard Lens) Curve Surface: Yes Corner Wall: Yes Point Correction: Yes Quick Corner: Yes Arc: Yes Geometry Correction Memory: Yes |
|
Operating Temperature: |
Operating Temperature: 0 - 50 °C <32 - 122 °F> (Below 1,500m / 4,921ft) 0 - 45 °C <32 - 113 °F> [Above 1,500m / 4,921ft - 3,048m / 10,000ft (with high altitude mode)] |
|
Operating Altitude: |
Operating Altitude: 0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode) |
|
Start-Up Period: |
Start-Up Period: Less than 7 seconds, Warm-up Period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Direct Power On/Off: |
Direct Power On/Off: Yes |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 586 x 185 x 492 mm |
|
Power Supply Voltage: |
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz |
|
Weight: |
Weight: Including Standard Lens: Approx. 23.7 kg Excluding Standard Lens: Approx. 21.9 kg |
|
Air Filter: |
Type: High Efficiency Filter Maintenance Cycle: 20,000 / 30,000 hours*3 |
|
Fan Noise: |
Fan Noise (Normal / Eco): 37dB / 30dB |
|
Power Consumption (220 - 240V): |
Laser Diode (Normal/Eco): 908W / 597W Networked Standby / Energy Saving: 2.0W / 0.3 W |
|
Brightness*1: |
White Light Output (Normal/Eco): 12,000lm / 8,400lm Colour Light Output: 12,000lm Light Output (Center): 12,200lm* |
