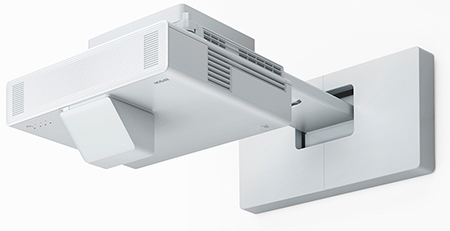

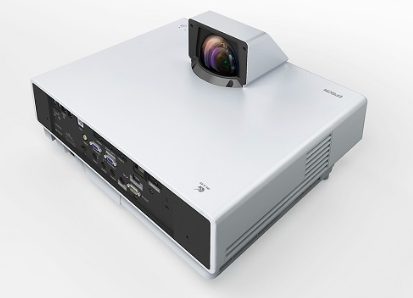

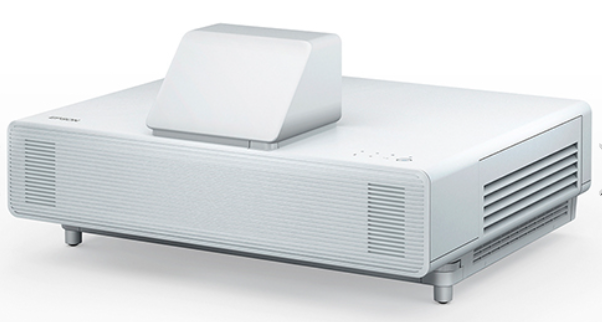

Epson EB-800F Ultra-short Throw Full HD Laser Projector
Features and Benefit
With the Epson EB-800F Full HD1 ultra-short throw laser projector, wow your clients and reinforce your marketing messaging! Easily create great video material, and instantly wirelessly broadcast it to your audience. With their laser light source, EB-800 series projectors are the perfect ally for your demands for digital signage because they can be positioned in any orientation, even in small places.
- Specifications
- Brochure
- Video
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Projectors Facets: |
Resolution, Projectors Facets: 1080p Contrast Ratio, Projectors Facets: Over 2,500,000:1 Inputs & Interfaces, Projectors Facets: HDMI Epson Creative Projection App RJ-45 & RS-232 USB Plug and Play Brightness Range Lumens, Projectors Facets: 4001 Features, Projectors Facets: Quick Corner Ultra Short Throw Edge Blending Laser / Lamp, Projectors Facets: Laser |
|
Connectivity: |
Analog Input: D-Sub 15 pin; 2 (Blue) Composite; RCA x 1 (Yellow) S-Video; Mini DIN x 1 Digital Input: HDMI; 1 |
|
Contrast Ratio: |
Contrast Ratio: Over 2,500,000:1 |
|
Wireless Specifications (Wireless LAN: Built-in): |
Supported Speed for Each Mode: Infrastructure: IEEE 802.11b (2.4GHz): 11 Mbps*2, IEEE 802.11g (2.4GHz): 54 Mbps*2, IEEE 802.11n (2.4GHz): 72.2 Mbps*2, IEEE 802.11a (5GHz): 54 Mbps*2, IEEE 802.11n (5GHz): 150 Mbps*2, IEEE 802.11ac (5GHz): 325 Mbps*2 Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps*2, IEEE 802.11n (2.4GHz): 72.2 Mbps*2, IEEE 802.11a (5GHz): 54 Mbps*2, IEEE 802.11n (5GHz): 150 Mbps*2, IEEE 802.11ac (5GHz): 325 Mbps*2 Wireless LAN Security: Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast Access Point (Wi-Fi Direct): WPA2-PSK(AES) Supported Connection Mode: Infrastructure, Access Point (Wi-Fi Direct) |
|
Screen Size (Projected Distance): |
Standard Size: 80” [48.7 cm] Zoom : Wide: 65” – 130” [39.2 – 80.3 cm] @ 16:9 61” – 120” [39.5 – 79.6 cm] @ 16: 6Zoom : Tele: 48” – 96” [39.2 – 80.3 cm] @ 16:9 |
|
Geometric Correction: |
Vertical/Horizontal Keyston: ±3° / ±3° Quick Corner: Yes |
|
Operating Temperature: |
Single Use: 0 - 45 °C <41 - 113 °F> [20% – 80% Humidity, No Condensation] Multi-projection Use: 0 - 40 °C <41 - 104 °F> [20% – 80% Humidity, No Condensation] |
|
Start-Up Period: |
Start-Up Period: Less than 8 - 10 seconds (Epson Logo), Warm-up Period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Internal Speaker(s): |
Sound Output: 8W x 8W [Stereo] |
|
Direct Power On/Off: |
Direct Power On/Off: Yes |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 458 x 209.5 x 375 mm |
|
Weight: |
Weight: Approx. 9.4 kg (Without Cable Cover) Approx. 9.7 kg (With Cable Cover) |
|
Air Filter: |
Maintenance Cycle: 20,000 hours*3 |
|
Fan Noise: |
Normal / Quiet: 36dB / 27dB |
|
Specifications of Main Parts: |
LCD: Native Resolution: Full HD (1080p) Size: 0.62” (C2Fine) Lightsource: Type: Laser Diode Life (Normal / Extended): 20,000 / 30,000 hours Projection Lens: Type: Focus (Manual) / No Optical Zoom F-Number: 1.50 Focal Length: 3.90 mm Zoom Ratio: 1 – 1.35 (Digital Zoom) Throw Ratio: 0.27 – 0.37 (Wide to Tele) |
|
Power Consumption (220 - 240V): |
Laser Diode ON (Normal / Extended): 366W / 262W Networked Standby / Energy Saving: 2.0W / 0.5 W |
