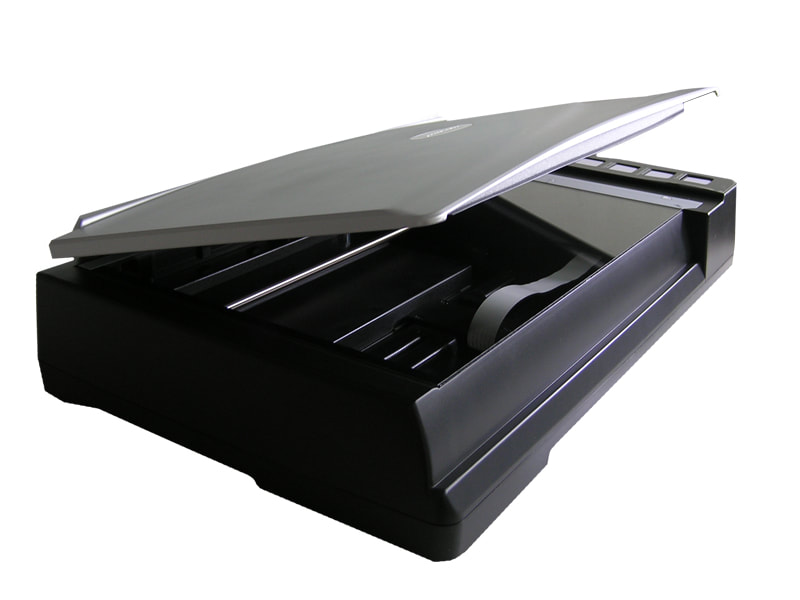

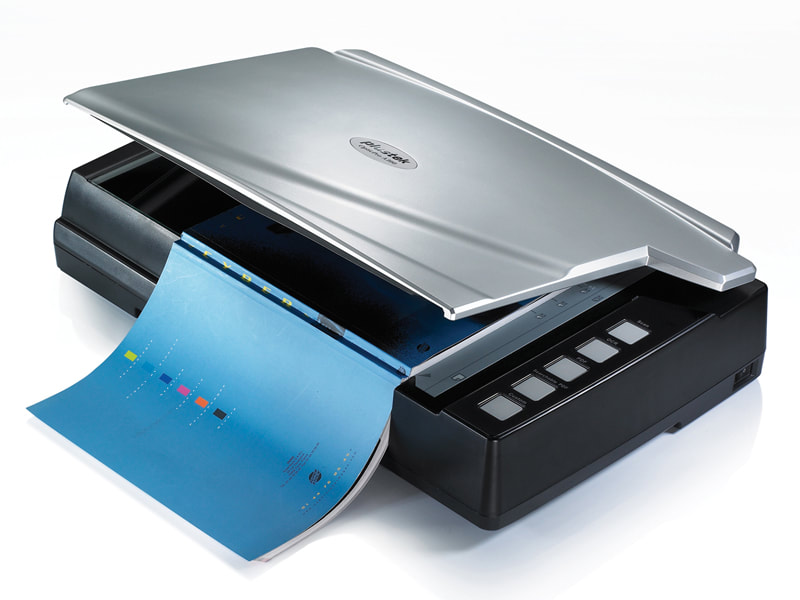

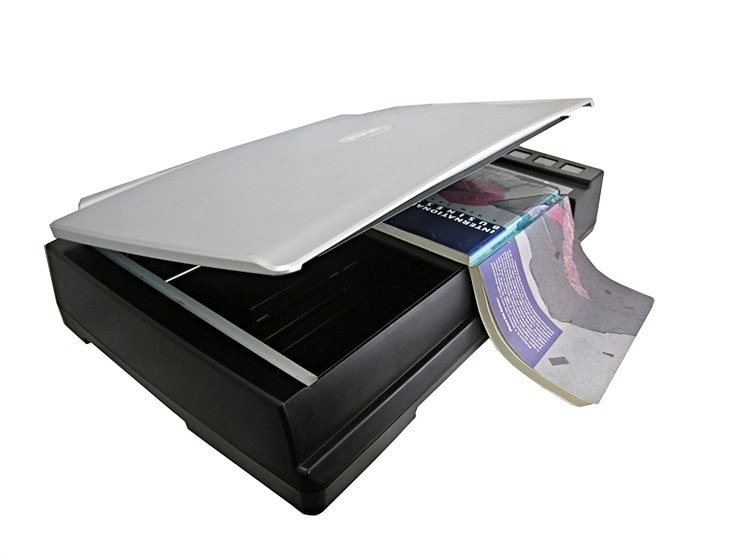

A3 Size Book Scanner
Plustek OpticBook A300
Features and Benefits
A3 Size Book Scanner Plustek OpticBook A300 can scan an A3 sized page in about 2.4seconds or a 200 page 8.5x11” book in about 20 minutes. Special book-edge design can scan any book without the book spine shadow and distorted text associated with book scanning on flatbed scanners or copiers. Pages are automatically cropped and rotated to the correct orientation and then saved to your choice of file formats including PDF and TIF.
- Special book-edge design
- Searchable PDF
- Fast A3 Size Scanning
- Unique book scanning software bundled
Specification
- General
|
Image Sensor |
CCD |
|
Light Source |
Cold Cathode Fluorescent Lamp |
|
Optical Resolution |
600 dpi |
|
Scan Modes |
Color: 48-bit input, 24-bit output Grayscale: 16-bit input, 8-bit output B/W: 1-bit output |
|
Book Edge |
2mm |
|
Scanning Speed |
2.48 sec (Color mode, 300dpi, A3) 2.10 sec (Grayscale/ B&W mode, 300dpi, A3) |
|
Scanning Area (W x L) |
Max. 304.8 mm x 431.8 mm (12" x 17"), A3 |
|
Daily Duty Scan (Sheets) |
5,000 |
|
Power Consumption |
< 36 W (operation), < 8 W (idle) |
|
Interface |
USB 2.0 |
|
Net Weight |
7.7 Kgs (16.96 Lbs) |
|
Dimensions (W x D x H) |
623 x 400 x 133 mm (24.53” x 15.75” x 5.24”) |
|
Protocol |
TWAIN Compliant |
|
OS |
Windows XP / Vista / 7 / 8 / 10 |
|
Hardware Requirements |
Pentium® IV 2.0 GHz processor CD-ROM Driver One available USB 2.0 Port 512 MB RAM (1 GB or higher recommended) 800 MB free HDD space (1 GB or larger recommended) |
