Biometric Fingerprint Time Attendance Clock Recorder Reader Machine
Mesin Cap Jari Kehadiran Masa Kerja Vigilance TA818

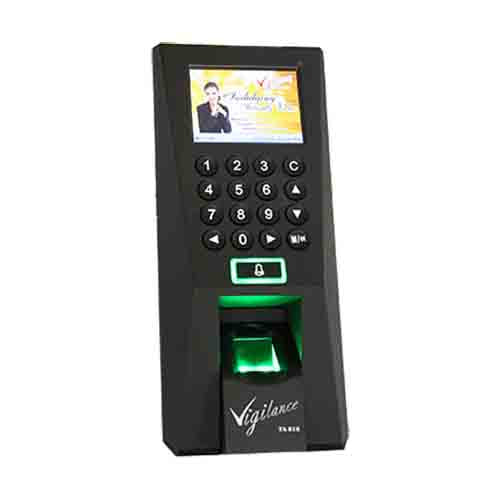

Product Name: Vigilance TA818
Brand Name: Vigilance
Model Name: TA 818
Brand Name: Vigilance
Model Name: TA 818
Features and Benefits
- Fingerprint reader with durable and highly accurate optical sensor
- Stores 1,500 templates, 5,000 cards and 30,000 transactions
- Reads Fingerprint and/or Card
- Optional integrated smart card reader
- Built-in Serial and Ethernet ports
- Tamper-proofs switch and alarm outputs
- Request-to-exit and alarm contacts
- Audio-Visual indications for acceptance and rejection of valid/invalid fingers
Specifications
User Capacity : 3000 Fingerprints ,5000 ID Cards
Transaction Capacity : 100,000
CPU : 64 Bit Microprocessor
Sensor : Super Optical Sensor
Allowable Finger Rotation : +/- 45° degrees
Identification : 1:1 or 1:N
Identification Time : 1:N - 2 sec (1500 Users)
I/O Interface : RS232 (10m) / 485(1.2KM)
Baud Rate : 9600-1.15kbps Programmable
Ethernet : 10/100M
Wiegand I/O : 26 bit
USB : USB 2.0 PORT
Access Control : 50 Time Zone , 5 Grouping , 10 Combination , Support Many Fingerprints Access, Support Standalone Work
Display : 2.5" TFT-LCD
Keypad : 4x4 Keypad with 4 Function Keys
Audio Visual Indicator : RED LED (Access Denies) / GREEN LED (Access Granted) With Audible Beep or Voice
Dimensions : 8.0cm(L) x 4.2 cm(W) x 18.3cm(H)
Power Requirement : 12V DC, 400mA
FAR : <=0.0001%
FRR : <=1%
Temperature Operating : 0°C - 40° (Indoor Only)
Humidity Operating : 20% - 80%
Standard : Wired Doorbell, Weigand OUT, Weigand IN
Standard Functions : ID Card, USB Host. Workcode RIS
Transaction Capacity : 100,000
CPU : 64 Bit Microprocessor
Sensor : Super Optical Sensor
Allowable Finger Rotation : +/- 45° degrees
Identification : 1:1 or 1:N
Identification Time : 1:N - 2 sec (1500 Users)
I/O Interface : RS232 (10m) / 485(1.2KM)
Baud Rate : 9600-1.15kbps Programmable
Ethernet : 10/100M
Wiegand I/O : 26 bit
USB : USB 2.0 PORT
Access Control : 50 Time Zone , 5 Grouping , 10 Combination , Support Many Fingerprints Access, Support Standalone Work
Display : 2.5" TFT-LCD
Keypad : 4x4 Keypad with 4 Function Keys
Audio Visual Indicator : RED LED (Access Denies) / GREEN LED (Access Granted) With Audible Beep or Voice
Dimensions : 8.0cm(L) x 4.2 cm(W) x 18.3cm(H)
Power Requirement : 12V DC, 400mA
FAR : <=0.0001%
FRR : <=1%
Temperature Operating : 0°C - 40° (Indoor Only)
Humidity Operating : 20% - 80%
Standard : Wired Doorbell, Weigand OUT, Weigand IN
Standard Functions : ID Card, USB Host. Workcode RIS
