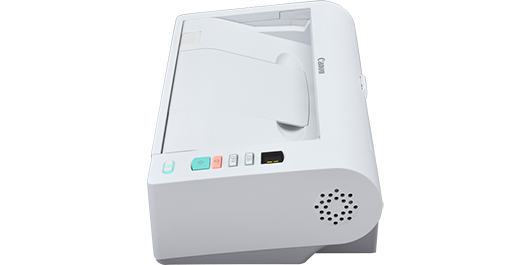

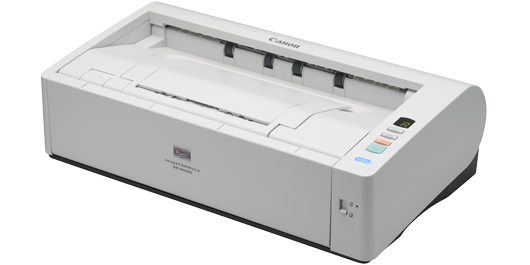

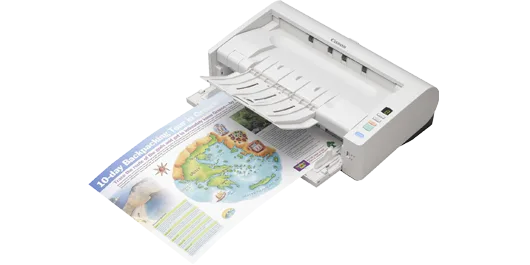

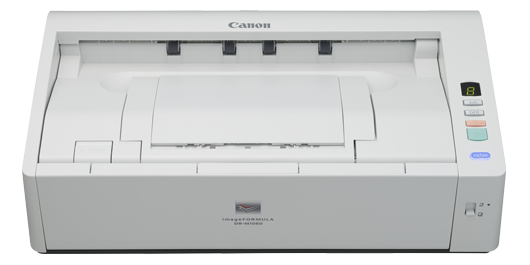

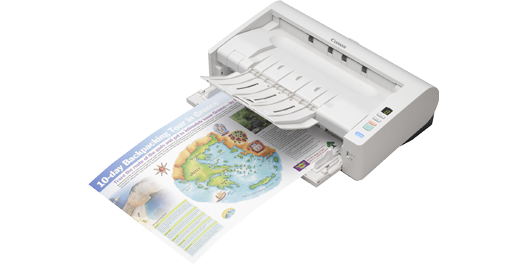

Small Compact A3 Scanner
Canon DRM1060
Features and Benefits
The Canon DR-M1060 is a uniquely compact A3 scanner – ideal in corporate office departments or decentralised branch offices that have limited desktop space but require A3 scanning. Users will appreciate the comfortable and convenient operation of the front document feed and exit design.
- Ultra-compact A3 scanner
- U-Turn and straight path for handling various documents
- Productive scanning up to 120ipm
- Front-feed design for convenient paper feeding
- Powerful software including Kofax VRS
- Easily add optional Flatbed Scanners or a Barcode Module
Specification
- General
- Scanning
- Document
|
Type |
A3 Desktop Type Sheet Fed Scanner |
|
Scanning sensor unit |
CMOS CIS 1 Line Sensor |
|
Optical resolution |
600 dpi |
|
Light Source |
RGB LED |
|
Scanning side |
Front/Back/Duplex |
|
Interface |
High Speed USB 2.0 |
|
Dimensions (WxDxH) |
Tray Closed: 424 (W) x 246 (D) x 120 (H)mm Tray Opened: 424 (W) x 440 (D) x 210 (H)mm |
|
Weight |
Approx. 6.1kg |
|
Power requirements |
AC100-240V (50/60Hz)”) |
|
Power consumption |
Scanning: 32.5W or less, Sleep mode: 2.5W or les, Power turned off: 0.5W or less |
|
Operating environment |
10 - 32.5 °C (50 - 90.5 °F), Humidity: 20 - 80% RH |
|
Environmental compliance |
RoHS and ENERGY STAR |
|
Roller Lifetime (Scans) |
300,000 |
|
Pad Lifetime (Scans) |
100,000 |
|
Action Button |
4 Buttons: Up, Down, Scan, Standby 9 function keys: all customizable. |
|
Power Supply |
24 Vdc/ 2.7 A |
|
Interface |
USB 2.0 |
|
Black and White |
60ppm / 120ipm - Landscape speed |
|
Colour |
60ppm / 120ipm - Landscape speed |
|
Output resolution |
100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi |
|
Colour mode |
Binary: Black & White, Error Diffusion, Advanced Text Enhancement I, Advanced Text Enhancement II, Auto Colour Detection, 8-bit Greyscale:(256-Level), 24-bit colour |
|
Suggested Daily Duty Cycle |
Approx. 7,500 scans/day |
|
Width |
50.8 - 300mm |
|
Length |
70 - 432mm |
|
Thickness |
U-turn: 0.04 - 0.15mm (27 - 128g/m²) Straight Through: 0.04 - 0.3mm (27 - 255g/m²)Value |
|
Long document mode |
3000mm max. (Supported by Straight Feeding) |
|
Card scanning |
86 x 54 x 1.4mm (Embossed card scanning is supported) |
|
Paper separation |
Retard Roller and Pre-separation method |
|
Feeder capacity |
A4: 60 Sheets (80g/m²) |
