Color Digital Press Production Printer For Art Card & Art Paper

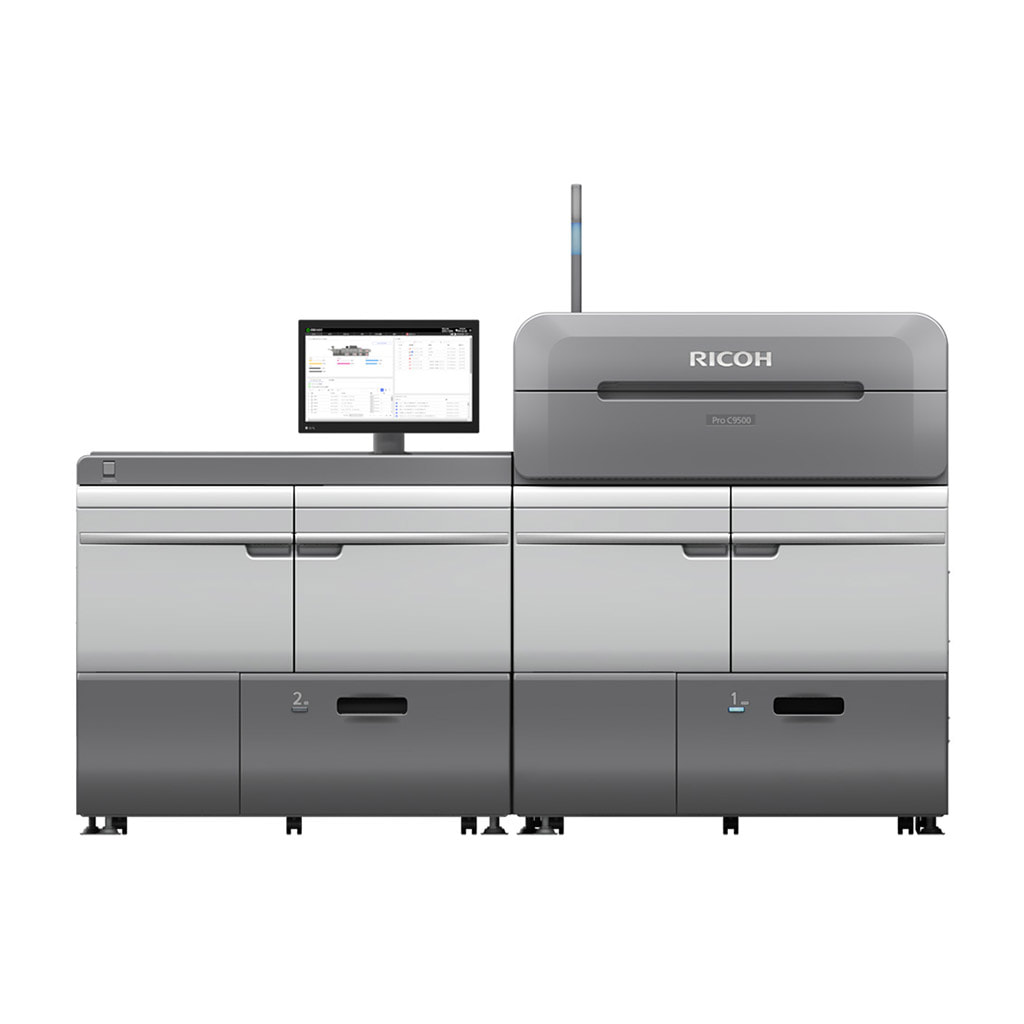

Ricoh Proc9500
Produce exceptional quality prints
Produce exceptional quality prints. Impress clients with vibrant, high quality prints at detailed 2,400 x 4,800 dpi resolution. And with Ricoh’s new Gloss Control feature, you can customize gloss levels to suit the application, whether it is for glossy photos or matte photo book printing.
Sophisticated control and consistency
Efficient operation
- Gain better control over your operations with a new engine controller, large touchscreen panel, and new Digital Front End options that enable you to manage Ricoh and Fiery applications in one convenient place.
Power up your print speed
- Increase the speed and agility your business by adding an optional productivity upgrade unit that boosts print speed to a blazing 135 ppm.
Expand your media horizons
- Expand your business opportunities with support for a wide range of media types, sizes, and weights from 40 to 470 g/m2 and up to 0.6 mm thickness.
Simple setup and maintenance
- Dramatically reduce job set up times with Ricoh's cloud-based media library and simplify maintenance tasks with remote connection, remote diagnosis, and remote service support.
- Specifications
- Brochure
General
|
Function(s) |
|
|
Colour |
Yes |
|
Printer controller - standard |
RICOH GC OS |
|
Printer controller - optional |
Color Controller N-50 Color Controller N-70 |
|
Operation panel |
21.5" Full HD touchscreen |
|
Physical dimensions (W x D x H)—mainframe |
2,520 x 990 x 1,500 mm |
|
Physical dimensions (W x D x H)—other |
2,520 x 990 x 1,870 mm—mainframe with Attention Light 1,054 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 1,290 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 with Vacuum-Feed Banner Sheet Tray Type S9 attached 1,519 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 with Extension Vacuum-Feed Banner Sheet Tray Type S14 attached 330 x 730 x 1,000 mm—Bridge Unit BU5010 690 x 561 x 210 mm—Multi-Bypass Tray BY5020 1,290 x 730 x 1,000 mm—Vacuum-Feed Banner Sheet Tray Type S9 1,290 x 730 x 1,302 mm—Vacuum-Feed Banner Sheet Tray Type S9, with cover open 1,519 x 730 x 1,000 mm—Extension Vacuum-Feed Banner Sheet Tray Type S14, when attached to Vacuum-Feed LCIT RT5150 1,090 x 561 x 210 mm—Multi-Bypass Banner Sheet Tray Type S9, when attached to Multi-Bypass Tray BY5020 730 x 1,220 x 1,090 mm—Plockmatic LCT3500 2.0 1,113 x 730 x 1,490 mm—Finisher SR5110 1,334 x 730 x 1,622 mm—Finisher SR5110 with SR5000 Series Output Tray for Banner Sheet Type S6 1,876 x 730 x 1,617 mm—Finisher SR5110 with Extension Output Banner Sheet Tray Type S14 (installed on the upper tray) 1,926 x 730 x 1,617 mm—Finisher SR5110 with Extension Output Banner Sheet Tray Type S14 (installed on the lower tray) 1,113 x 730 x 1,490 mm—Booklet Finisher SR5120 1,334 x 730 x 1,622 mm—Booklet Finisher SR5120 with SR5000 Series Output Tray for Banner Sheet Type S6 1,876 x 730 x 1,617 mm—Booklet Finisher SR5120 with Extension Output Banner Sheet Tray Type S14 (installed on the upper tray) 1,926 x 730 x 1,617 mm—Booklet Finisher SR5120 with Extension Output Banner Sheet Tray Type S14 (installed on the lower tray) 1,115 x 591 x 555 mm—Trimmer Unit TR5050 740 x 730 x 1,350 mm—Cover Interposer CI5040 209 x 730 x 1,000 mm—Multi-Folding Unit FD5030 900 x 730 x 1,010 mm—High-Capacity Stacker SK5040 1,200 x 700 x 1,100 mm—Plockmatic High-Capacity Stacker HCI3500 900 x 680 x 1,060 mm—Plockmatic Multi-Purpose Stacker MPS1260 1,420 x 700 x 970 mm—Plockmatic PBM 5035S/PBM 5035, including stacker |
|
Weight—mainframe |
1,100 kg or less |
|
Weight—other |
230 kg or less—Vacuum-Feed LCIT RT5150 40 kg or less—Bridge Unit BU5010 20 kg or less—Multi-Bypass Tray BY5020 9 kg or less—Vacuum-Feed Banner Sheet Tray Type S9 23 kg or less—Extension Vacuum-Feed Banner Sheet Tray Type S14 9.5 kg or less—Multi-Bypass Banner Sheet Tray Type S9 250 kg—Plockmatic LCT3500 2.0 135 kg—Finisher SR5110 160 kg—Booklet Finisher SR5120 75 kg—Trimmer Unit TR5050 60 kg—Cover Interposer CI5040 45 kg or less—Multi-Folding Unit FD5030 131 kg or less—High-Capacity Stacker SK5040 135 kg or less—High-Capacity Stacker SK5040 with roll-away cart 250 kg—Plockmatic High-Capacity Stacker HCI3500 65 kg—Plockmatic Multi-Purpose Stacker MPS1260 lift unit 5 kg—Plockmatic Multi-Purpose Stacker MPS1260 docking unit |
|
Minimum space requirements |
1,000 mm—front 1,000 mm—left 1,000 mm—right 800 mm—rear |
Reliability
|
Average monthly volume |
115 ppm—251,000 prints (A4), 159,000 prints (click); 135 ppm—460,000 prints (A4), 304,000 prints (click) |
|
Max monthly volume |
1,000,000 prints |
|
Machine life |
60,000,000 prints or 5 years, whichever comes first |
|
Duty cycle |
115 ppm—2,250,000 prints; 135 ppm—2,600,000 prints |
|
Color ratio |
80% |
Supply Yields
|
Supply yields |
69,000 sheets—black 75,500 sheets—cyan 73,200 sheets—magenta 64,800 sheets—yellow 230,000 sheets per waste toner bottle 5,000 staples per Type X cartridge for Finisher SR5110 and Booklet Finisher SR5120—side staple 5,000 staples per Type U cartridge for Booklet Finisher SR5120—saddle stitch staple 5,000 staples per Type X refill cartridge for Finisher SR5110 and Booklet Finisher SR5120—side staple 5,000 staples per Type T refill cartridge for Booklet Finisher SR5120—saddle stitch staple Note: Toner yields measured with the A4/8.75% coverage chart with 150 pages per job. Waste toner bottle yield measured with A4/8.75% coverage chart with 150 pages per job and 80% colour ratio. |
Media Handling
|
Standard input capacity (sheets) |
4,400 |
|
Maximum input capacity (sheets) |
18,100 |
|
Maximum output capacity (sheets) |
13,000 |
|
Paper input configuration - standard |
2,200-sheet paper input tray x 2 |
|
Paper input configuration - optional |
4,400-sheet Vacuum-Feed LCIT RT5150, Bridge Unit BU5010, 500-sheet Multi-Bypass Tray BY5020, 730-sheet Vacuum-Feed Banner Sheet Tray Type S9, 500-sheet Extension Vacuum-Feed Banner Sheet Tray Type S14, 500-sheet Multi-Bypass Banner Sheet Tray Type S9, 3,500-sheet Plockmatic LCT3500 |
|
Paper output configuration - optional |
Multi-Folding Unit FD5030, High-Capacity Stacker SK5040, 3,500-sheet Booklet Finisher SR5120, 4,500-sheet Finisher SR5110, Punch Unit PU5030, Trimmer Unit TR5050 for Booklet Finisher SR5120, 400-sheet Cover Interposer CI5040 |
|
Paper output configuration - 3rd Party |
GBC e-Wire, GBC StreamPunch Plus, Plockmatic HCI3500 High-Capacity Interposer, Plockmatic CT XL, Plockmatic PBM350e, Plockmatic MPS1260 Multi-Purpose Stacker, Plockmatic PBM5035S long sheet stitcher, Plockmatic 5035 long sheet stapler, Plockmatic SBT (Square Back Trimmer), Plockmatic RCT v.3.0 |
|
Supported media |
Standard paper input trays 1 and 2 Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Label Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Envelope, Textured Paper, Tab Stock: Glossy, Tab Stock: Matte, Tab Stock: High Gloss, Envelope: Glossy, Envelope: Matte, Envelope: High Gloss, Carbonless Paper Note: Magnetic Paper, Metallic/Pearl Paper, Clear File Folder, and Synthetic Paper can be fed but quality is not guaranteed. Bypass tray Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Envelope Note: High Gloss, Coated: Glossy, Coated: Matte, Textured Paper, and Synthetic Paper can be fed but quality is not guaranteed. Optional Vacuum-Feed LCIT RT5150 Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Label Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Envelope, Textured Paper, Tab Stock: Glossy, Tab Stock: Matte, Tab Stock: High Gloss, Envelope: Glossy, Envelope Matte, Envelope: High Gloss, Carbonless Paper Note: Magnetic Paper, Metallic/Pearl Paper, Clear File Folder, and Synthetic Paper can be fed but quality is not guaranteed. Optional banner sheet tray Plain, Recycled, Prepunched Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Textured Paper, Carbonless Paper Note: Transparency, Translucent Paper, Label Paper, Magnetic Paper, Metallic/Pearl Paper, and Synthetic Paper can be fed but quality is not guaranteed. |
|
Maximum paper size |
13" x 19.2" |
|
Media weight (g/m2) |
40–470 |
|
|
|
Connectivity
|
Interfaces - standard |
10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet)—for TotalFlow Advisor connection 2.5GBase-T—for Fiery controller connection SD slot x 2— for maintenance only USB 3.0 x 4, USB 2.0 x 2 |
|
Interfaces - optional |
With Color Controller N-50 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet) USB 2.0 x 4—rear USB 3.0 x 5—2 ports on the rear, 3 ports on the Fiery Quick Touch operation panel With Color Controller N-70 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet) USB 3.0 x 7—rear USB 3.0 x 4 ports, x3 ports on the Fiery Quick Touch operation panel |
|
Network protocols - standard |
TCP/IP (IPv4, IPv6) |
|
Network protocols - optional |
With Color Controller N-50/N-70 Windows—TCP/IP Mac—TCP/IP, EtherTalk, Bonjour |
Print Features
|
Print speed color |
115 ppm—A4 62 ppm—A3 With optional Productivity Upgrade Unit Type S15 135 ppm—A4 75 ppm—A3 |
|
Print speed black and white |
115 ppm—A4 62 ppm—A3 With optional Productivity Upgrade Unit Type S15 135 ppm—A4 75 ppm—A3 |
|
First print time |
115 ppm—24 seconds; 135 ppm—22 seconds |
|
Printing process |
4-drum dry electrostatic transfer system with internal transfer belt |
|
Printing technology |
Vertical-cavity surface-emitting laser (VCSEL) |
|
Fusing |
Oil-less belt-fusing method |
|
Toner development |
PXP-EQ chemical toner, polymerization |
|
Print resolution |
2,400 x 4,800 dpi Note: Engine print resolution is 1,200 x 4,800 dpi. |
|
Duplex printing |
Standard |
|
Envelope printing |
Supported |
|
Maximum printable area |
326 x 1,255 mm |
|
Optional printer controller |
Color Controller N-50 and Color Controller N-70 System Fiery FS500 Pro Base operating system Windows 10 IoT Enterprise 2019 LTSC CPU Intel i5-8500—N-50 Intel Xeon 4214 (Silver)—N-70 HDD 256 GB SSD SATA for OS; 1 TB HD SATA for data—N-50 480 GB SSD SATA for OS; 2 TB HD x 2 SATA for data—N-70 Memory (RAM)8 GB—N-50 32 GB—N-70 Interfaces Gigabit cross cable Ricoh data transfer unit cable |
|
Other print features |
Optional Auto Color Diagnosis Unit and Image Quality Monitor |
Security Features
|
Other security features |
The OneDFE controller security is based on the EFI Fiery security policy that is compliant with the FS500 Pro system. Contact your local sales company for more information. |
Software & Solutions
|
Standard |
@Remote TotalFlow Adviser |
|
Optional |
InfoPrint Manager Ricoh ProcessDirector TotalFlow Prep TotalFlow Production Manager TotalFlow BatchBuilder RICOH Supervisor TotalFlow Producer FusionPro VDP Creator FusionPro Expression Ricoh Auto Color Adjuster OL PlanetPress Connect Fiery Workflow Suite |
Environmental Features
|
Power source |
220–240 V, 50/60 Hz |
|
Power consumption |
9,000 W or less—maximum power |
|
Power consumption—options |
1,000 W or less—Vacuum-Feed LCIT RT5150 150 W or less—Finisher SR5110 150 W or less—Booklet Finisher SR5120 250 W or less, maximum—Trimmer Unit TR5050 75 W or less, average—Trimmer Unit TR5050 110 W excluding peak consumption—Cover Interposer CI5040 |
|
Warm-up time |
540 seconds or less—mainframe |
|
Sound power level |
Mainframe 73.5 dB or less—standby 81.5 dB or less—operating |
|
Reduction of environmentally sensitive materials |
RoHS Less than 0.1 wt%—Lead, PVC, Hexavalent chromium, Cadmium, PBB/PBDE, DEHP, DBP, BBP, DIBP |
|
Energy saving standards |
Energy Star 3.2—with OneDFE controller |
|
Safety standards |
EN60950-1 IEC60950-1 KC 62368-1 CNS 15998-1 |
|
Electromagnetic Compatibility (EMC) standards |
EN55032 Class A EN61000-3-2 EN61000-3-3 EN55035 EN62311 KS C 9832 KS C 9835 KS C 9610-4-2 KS C 9610-4-3 CNS15936 Class A |
|
Identification of plastic components |
All plastic components that weigh more than 100 g are identified in accordance with ISO 11469 standards. |
|
Laser standards |
EN60825-1 IEC60825-1 |
Download Brochure Here
RICOH Pro C9500 Configurator
Build a RICOH Pro C9500 production system visually. Select engine speed, automated colour quality control, vacuum-feed capacity, professional finishing and the required production DFE, then send the completed configuration for quotation.
Pro C9500 Production Performance
High-volume digital colour production with automated registration and colour control, heavy-media support up to 470 g/m², large vacuum-feed paper capacity and extensive inline finishing options.
- FunctionsPrint
- Standard speed115 ppm
- Optional speed135 ppm
- Maximum monthly volume1,000,000
- Standard input4,400 sheets
- Maximum input18,100 sheets
- Media weight40–470 g/m²
- Max paper size13 × 19.2 in
- Printable area326 × 1,255 mm
- Resolution2,400 × 4,800 dpi
- Mainframe size2,520 × 990 × 1,500 mm
- Mainframe weight≤1,100 kg
- Power220–240 V · ≤9,000 W
- Operation panel21.5-inch Full HD
