Epson EV-115 Lighting Projector (Black)
The dynamic laser projector for electronic signage and art.
Features and Benefit
The cutting-edge projection signage solution from Epson, the EV-115 Lightscene Laser Projector, lets you create dazzling visual presentations and immersive settings. Epson's newest line of LightScene projectors, which combine lighting and display technology, fascinate audiences by simultaneously illuminating and projecting on almost any surface or material and releasing dynamic, immersive content for digital art, commercial signs, and décor applications. The EV-115 Lightscene Laser Projector features a sleek black spotlight design with a variety of configuration, mounting, and programming choices. It is designed to blend in discretely to any location, including showrooms, museums, retail, hospitality, and event spaces.
- Laser projector with up to 20,000 hours of virtually maintenance-free operation
- Sleek spotlight design that seamlessly blends into any environment
- Basic interactivity with GPI input function
- Suite of software to support projection and content management functions
- Flexible installations with 360 degree ball-joint structure
- Specifications
- Brochure
- Video
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Projectors Facets: |
Resolution, Projectors Facets: WXGA Contrast Ratio, Projectors Facets: Over 2,500,000:1 Inputs & Interfaces, Projectors Facets: HDMI Epson Creative Projection App RJ-45 & RS-232 SD Card Brightness Range Lumens, Projectors Facets: 2000 Features, Projectors Facets: Wifi Quick Corner Standard Throw GPI Function Edge Blending Laser / Lamp, Projectors Facets: Laser |
|
Connectivity: |

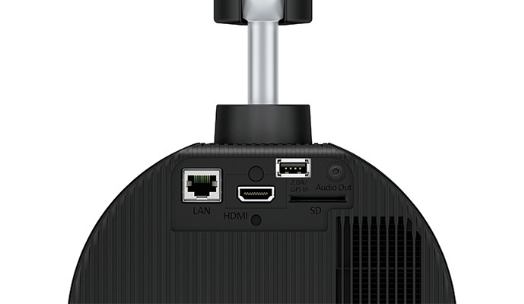

Network: Wired LAN: RJ45 x 1 (100Mbps) Wireless: Built-in Memory: SD Card: 1 (SDHC, up to 32GB, more than Class 10) Digital Input: HDMI: 1 Audio Output: Stereo Mini Jack: 1 USB Input: USB Type B: 1 (For firmware update) USB Type A: 1 (For GPI In [2 Ch] or 5V/2A Power Supply) |
|
Contrast Ratio: |
Contrast Ratio: Over 2,500,000:1 |
|
Wireless Specifications (Wireless LAN: Built-in): |
Supported Speed for Each Mode: IEEE 802.11b (2.4GHz): 11Mbps IEEE 802.11g (2.4GHz): 54Mbps IEEE 802.11n (2.4GHz): 72.2Mbps IEEE 802.11a (5GHz): 54Mbps IEEE 802.11n (5GHz): 150Mbps Wireless LAN Security: Open WPA2/WPA3-PSK WPA2/WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast Supported Connection Mode: Infrastructure, Access Point |
|
Geometric Correction: |
Vertical/Horizontal Keystone: ±45° / ±40° Quick Corner: Yes |
|
Operating Temperature: |
Operating Temperature: Low altitude (0 to 2286m/7500ft): 5 deg C to 40 deg C (41 deg F to 104 deg F) High altitude (Over 2286m / 7500ft): 5 deg C to 35 deg C (41 deg F to 95 deg F) 20% - 80% humidity, No condensation |
|
Operating Altitude: |
Operating Altitude: 0 m to 3048 m (0 ft to 10000 ft) (over 1500 m / 4921 ft : with High altitude mode) |
|
Start-Up Period: |
Start-Up Period: Less than 9 seconds Warm-up period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant off |
|
Direct Power On/Off: |
Direct Power On/Off: Yes / Yes |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): Projection unit: Φ 175 x D260 Power supply unit: 361 x 65 x 110 mm (without Cable Cover) |
|
Weight: |
Weight: Approx. 15.2 lbs. / 6.9kg (Main Unit and Direct Mount unit) |
|
Fan Noise: |
Fan Noise (Normal / Eco): 34 / 22 dB |
|
Power Consumption (220 - 240V): |
Stand By (Network On / Off): 2.0W / 0.40W Laser diode on (normal / quiet): 149W / 112W |
|
Brightness: |
White Light Output (Normal / Quiet / extended): 2200lm / 1100lm / 1100lm Colour Light Output: 2200lm Colour Mode: Dynamic |
|
|
LCD: Resolution: WXGA Size: 0.59 inch (D8, C2 fine) Projection Lens: Type: Laser Diode Type: Optical Zoom (Powered) / Focus (Powered) Zoom Ratio: 1 - 1.58 (Optical Zoom) Zoom Ratio: 1 - 1.40 (Digital Zoom) Throw Ratio: 1.38 - 2.19 (Wide to Tele) Type: Laser Diode Life (normal/quiet/extended): 20000hrs / 20000hrs / 30000hrs Screen Size (projected distance): 30" to 150" (0.88 to 4.51 m) (Wide Zoom) 30" to 150" (1.41 to 7.16 m) (Tele Zoom) 60" screen 1.79m (Standard size) |
|
Power Supply Voltage: |
Power Supply Voltage: 100 - 240 V AC +/- 10%, 50/60 Hz |
|
Contents Player: |
Playlist: Yes Timetable (scheduled playlist): Yes SD viewer: Yes Playlist Contents: Motion JPEG Movie (AVI), and Photo (JPEG, PNG, GIF, BMP) |
|
Options: |
Options: (Floor Stand) Black: ELPMB55B (Floor Stand) White: ELPMB55W (Lighting Track) White: ELPMB66W (Lighting Track) Black: ELPMB66B |
|
Colour Mode: |
Colour Mode: Dynamic Normal |
