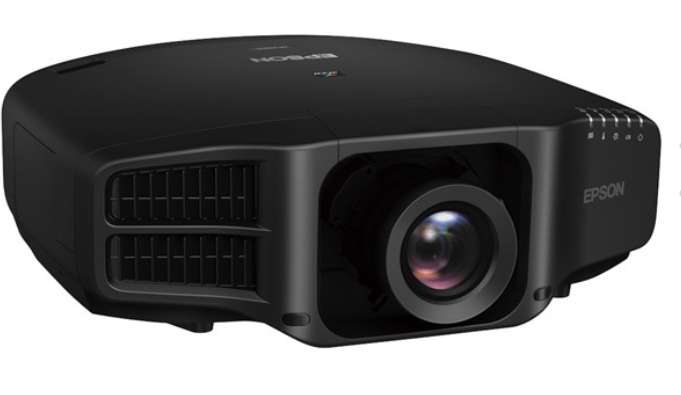

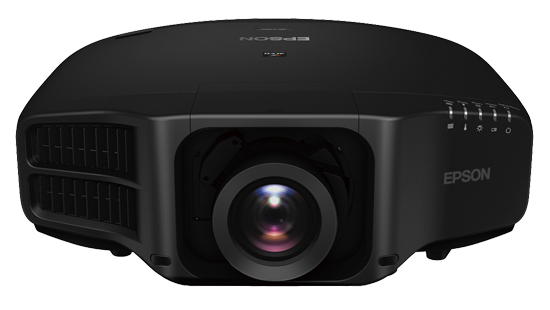

Epson EB-G7805NL XGA 3LCD Projector without Lens
In any environment, project a world of possibilities.
Features and Benefit
The Epson EB-G7805 high brightness projector offers a fresh viewpoint on clarity, robustness, and adaptability. Projections are brought to life with rich colours in exceptional resolution and vividness thanks to the cutting-edge C2FineTM Technology. Utilize the projector's astonishingly low throw ratio of 0.35** to overcome spatial restrictions and project huge, unaltered images.
* With optional ELPLX01 zero offset ultra-short throw lens
* With optional ELPLX01 zero offset ultra-short throw lens
- High Brightness
- Powered Lens
- Portrait Projection
- Flexible Installation
- Edge Blending
- Point Correction
- Specifications
- Brochure
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Main Parts Specification: |
LCD: Size; 0.79" panel with MLA (D10, C2 Fine) Native Resolution; XGA (1024 x 768) |
|
Brightness: |
White Light Output (Normal/Eco): 8,000lm / 6,400lm Colour Light Output: 8,000lm |
|
Connectivity: |
Network: Wired LAN RJ45 x 1 (100Mbps) Wireless LAN (Optional) Analog Input: D-Sub 15 pin: 1 (Blue) 5BNC: 1 Digital Input: DVI-D: 1 HDBaseT (RX); RJ45 x 1 (with HDCP 2.2) HDMI; 1 (with HDCP 2.2) Analog Output Terminal: D-Sub 15Pin 1 Audio Input: Stereo Mini Jack 3 Audio Output: Stereo Mini Jack 1 Control I/O: RS-232C D-sub 9pin x 1 Remote Control Input Stereo mini jack x 1 Others: USB Type A 1 (Wireless LAN, Firmware Update, Copy OSD settings) USB Type B 1 (Firmware Update, Copy OSD settings) |
|
Projection Lens |
Type: Power Zoom / Power Focus / Power Shift Focal Length: 24.0 - 38.2 mm Zoom Ratio: 1 - 1.6 F-number: 1.7 - 2.3 |
|
Contrast Ratio: |
Contrast Ratio: 50,000:1 |
|
Wireless Specifications (Wireless LAN: Built-in): |
Supported Speed for Each Mode: IEEE 802.11b: 11Mbps*3 IEEE 802.11g: 54Mbps*3 IEEE 802.11n: 130Mbps*3 Wireless Security: WPA-PSK / WPA2-PSK(TKIP/AES) WPA2-PSK(AES) |
|
Screen Size (Projected Distance): |
Zoom : Wide: 50" - 300" [1.47 - 9.08 m] Zoom : Tele: 50" - 300" [2.39 - 14.56 m] |
|
Geometric Correction: |
Vertical/Horizontal Keystone: ±45° / ±30° ( Zoom: Tele with Standard Zoom Lens) Curve Surface: Yes Corner Wall: Yes Point Correction: Yes Quick Corner: Yes |
|
Operating Temperature: |
Operating Temperature: 0 - 45 °C <32 - 113 °F> (Below 1,500m / 4,921ft) 0 - 40 °C <32 - 104 °F> [Above 1,500m / 4,921ft - 3,048m / 10,000ft] 0 - 35 °C <32 - 95 °F> [Above 3,048m / 10,000ft - 5,000m / 16,404ft] 20% - 80% humidity, no condensation |
|
Operating Altitude: |
Operating Altitude: 0 - 5,000m (0 - 16,404 ft) (over 1,500m / 4,921ft with high altitude mode) |
|
Start-Up Period: |
Start-Up Period: About 15 seconds, Warm-up Period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant off |
|
Internal Speaker(s): |
Sound Output: 10W x 1 |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 425 x 525 x 164 mm |
|
Weight: |
Weight: 12.9kg |
|
Air Filter: |
Type: High Efficiency Filter Maintenance Cycle: 15,000 hours*4 |
|
Fan Noise: |
Fan Noise (Normal / Eco): 39dB / 31dB |
|
Power Consumption (220 - 240V): |
Lamp On (Normal/Eco): 572W / 477W Stand By (Network On / Off): 2.3W / 0.3W |
