Wide Format Color Printer Scanner Photostat Machine

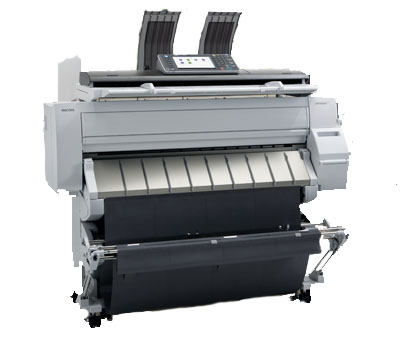

Ricoh MPCW2200SP

Main Features

The new RICOH MP CW2200SP. The first ever color multi-function wide format printer.

Full-color capability and high-speed monochrome output. A new digital color wide format multifunction printer to give your business a boost! Quick start-ups and high-speed monochrome output give you the efficiency you need. And with GET JET and other advanced features and environmental technologies, one machine can do it all.

• 0.6 - 1.1 color prints per minute (AO/A1)

• High quality color printing at 600dpi

• Attractive Total Cost of Ownership (TCO)

• Significantly low power consumption

Specification

COPIER

Printing Process On demand piezo inkjet system pigment-based ink

Memory 3GB

System Memory + 250GB HDD

Warm-up Time Less than 40 seconds

First output speed B/W: 29 seconds (A1) 51 seconds (AO)

                               Color: 84 seconds (A1) 155 seconds (AO)

Copy resolution 600 dpi

Output Paper Weight Roll Paper : 0.068-0.2mm (51-190g/m2)

Cut Sheet : 0.068-0.4mm (51-220g/m2)

Roll Paper Width 297 / 364 / 420 / 440 / 490 /515 / 594 /610 / 620 / 625/ 660/ 680 /707/ 728 / 800/ 841 / 880/ 914.4mm (Metric) 11” / 12” /15” / 17” /18”

/ 22” / 24” / 30” / 34” / 36” (Inches)

Copy Speed B/W: 3.4cpm (A1) 1.8cpm (AO)

                   Color: 1.1cpm (A1) 0.6cpm (AO)

Zoom 25 - 400% (in 0.1% steps)

Roll Paper size 2 Roll Feeder:

One Roll Paper each

Width 279.4mm-914mm(8.5”-36”)

Max length 150,000mm 1-sheet bypass tray

Paper output capacity 10 sheets (plain paper)

Power source:220 - 240 V, 50/60 Hz, 1.9A

Power consumption Less than 180 W

Dimensions (W x D x H)1,384 x 660 x 1,214 mm

Weight Less than 120 kg

PRINTER

Controller type Embedded (GW Controller)

Print speed B/W: 1.8/3.2 prints per minute (A0/A1)

                Color: 0.6/1.1 prints per minute (A0/A1)

Printer driver Adobe Post Script3, HDI

Printer resolution Speed Priority Mode  : 600dpi x 300dpi

Standard Mode  ?   : 600dpi x 600dpi

Quality Priority Mode?: 600dpi x 600dpi

Network protocol TCP/IP (IP v4, IP v6), IPX/SPX

SCANNER

Color scan Standard

Scanning speed B/W: 80mm/s (600 dpi), 160mm/s (200 dpi)

                                   : Color: 26.7mm/s (600 dpi), 40mm/s (200 dpi)

Scanning resolution 200 dpi (default)

Original Scan Size Maximum: 914mm x 15,000mm (36" x 590")

                                Minimum : 210mm x 210mm (8.5" x 8.5")

Protocol Network: TCP/IP,

Scan to E-mail: SMTP, Gateway and TCP/IP

Scan to Folder: SMB, FTP

Scan to e-mail SMTP, POP3

Output formats PDF/TIFF/JPEG

For availability of models, optional apparatus and software, please contact your local Ricoh representative.

All brand and/or product names are trademarks of their respective owners. Specifications are subject to change without prior notice._
