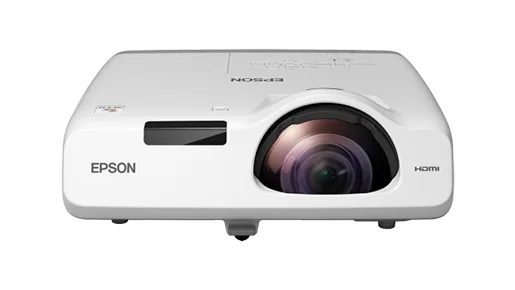

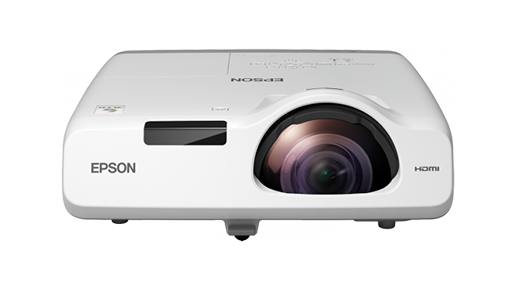

Epson EB-530 Short Throw XGA 3LCD Projector
A small movement for improved convenience
Features and Benefit
Epson's line of short-throw projectors is your best option for presentations that run smoothly and continuously. Glare or shadow interference won't be a problem with short-throw projection ability. With a 10,000-hour bulb life in eco-mode, you may also save a lot of money.
- White and Colour Brightness at 3,200lm
- XGA Resolution
- Multi-PC projection
- HDMI Connectivity
- Optional Wi-Fi with adaptor ELPAP07
- Specifications
- Brochure
- Video
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Brightness2: |
White Light Output (Normal/Eco): 3,200lm / 1,800lm Colour Light Output: 3,200lm |
|
Connectivity: |
Analog Input: D-Sub 15 pin; 2 (Blue) Composite; RCA x 1 (Yellow) S-Video; Mini DIN x 1 Digital Input: HDMI; 1 |
|
Contrast Ratio: |
Contrast Ratio: 16,000:1 |
|
Screen Size (Projected Distance): |
Zoom : Wide: 50" - 108" [0.54 - 1.22 m] Zoom : Tele: 37" - 80" [0.54 - 1.22 m] |
|
Operating Temperature: |
Operating Temperature: 5 - 35 °C <41 - 95 °F> |
|
Operating Altitude: |
Operating Altitude: 0 - 3,000 m <0 - 9,843 ft> |
|
Start-Up Period: |
Start-Up Period: About 8 seconds, Warm-up Period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Internal Speaker(s): |
Sound Output: 16W Monaural |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 314.5 x 344 x 94 mm |
|
Weight: |
Weight: 3.7kg |
|
Air Filter: |
Type: Electrostatic Filter Maintenance Cycle: 5,000 hours*4 |
|
Fan Noise: |
Fan Noise (Normal / Eco):37dB / 29dB |
|
Power: |
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz |
|
Main Parts Specification: |
LCD: Size; 0.55” with MLA (D8) Native Resolution; XGA Video Output: Monitor Out; 1 |
|
Optical Systems: |
Lens: Type; No Optical Zoom / Focus (Manual) F-Number; 1.6 Focal Length; 6.4 mm Zoom Ratio; 1.0 - 1.35 (Digital Zoom) Throw Ratio; 0.55-0.74 (Wide - Tele) Lamp: Life (Normal/Eco)*1; 5,000 hours / 10,000 hours Type; 215W UHE |
|
Keystone Correction: |
Vertical/Horizontal: ±15° / ±15° |
|
Output Terminal: |
D-Sub 15pin: 1 (Black) |
|
Audio Input: |
Stereo Mini Jack: 2 RCA (White/Red): Yes |
|
Audio Output: |
Stereo Mini-jack: 1 |
|
Others: |
USB Type A: 1 (for USB Memory, USB Document Camera, Wireless LAN, Firmware Update, Copy OSD Settings) USB Type B :1 (for USB Display, Mouse, K/B, Control, Firmware Update, Copy OSD Settings) Microphone Input: Stereo Mini Jack; 1 |
|
Control I/O: |
RS-232C: D-Sub 9pin x 1 |
|
Network: |
Wired LAN: RJ45 x 1 (100Mbps) Wireless: Optional (ELPAP07) |
|
Start Up Period: |
Start Up Period: Less than 7 seconds, Warm-up period: 30 seconds |
|
Direct Power On / Off: |
Direct Power On / Off: Yes |
