Digital Offset Printing Machine

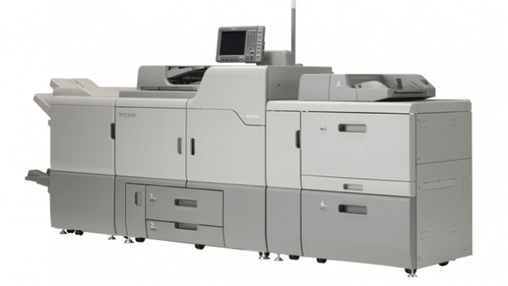

Ricoh ProC7100sx Digital Colour Production Printer
When it comes to your production printing, you can't have too many colour capabilities. For your advanced jobs, there’s the Digital Offset Printing Machine RICOH ProC7100SX / ProC7110SX.
With its powerful variable data printing system — and a price that works even for small and midsize print providers — you can effectively capture, manage, and transform all of your information.
With its powerful variable data printing system — and a price that works even for small and midsize print providers — you can effectively capture, manage, and transform all of your information.
Check every item on your print wish listGrowing your business in a competitive industry is tough. Many consumers think print is all the same, and buy on the lowest price. But with the RICOH Pro C7100SX / C7110SX, you can get superb quality at an equally superb cost. Available in five-station printer and multi-function printer (MFP) models, the Pro C7100SX / C7110SX can help you set yourself apart, attract new work, and increase revenue.
- Compete for jobs that involve clear or white ink
- Start or expand a print on-demand service
- Personalise or customise materials
- Dazzle customers with 1,200 x 4,800 near-offset image quality
- Print oversize pieces for signage, window clings, and more
- Let creativity rule with media that ranges from tree-based to synthetics to envelopes to heavily textured, up to 360 gsm
- Expand offerings with inline finishing — booklet maker, punching, saddle stitch, and more
- Main Features
- Specifications
- Brochure
Do it white
Imagine if you could print a white so white that it makes ordinary print jobs absolutely extraordinary? That's just one of the many capabilities of the RICOH Pro C7100x Series with its new 5th Station offering the ability to print beyond the traditional CMYK.
Imagine if you could print a white so white that it makes ordinary print jobs absolutely extraordinary? That's just one of the many capabilities of the RICOH Pro C7100x Series with its new 5th Station offering the ability to print beyond the traditional CMYK.
The future is clear
Imagine being able to offer your customers a special product with a clear difference? With the capability to print both clear and white from the one device and support for a variety of textured stocks, you will always be rewarded with outstanding quality and clarity. Clear gloss and white toner provide more value-added applications such as spot gloss, flood, and watermarks along with printing on coloured and clear media.
Imagine being able to offer your customers a special product with a clear difference? With the capability to print both clear and white from the one device and support for a variety of textured stocks, you will always be rewarded with outstanding quality and clarity. Clear gloss and white toner provide more value-added applications such as spot gloss, flood, and watermarks along with printing on coloured and clear media.
Print on heavily textured stock
Improve coverage and appearance on textured surfaces. An (AC) image transfer system in conjunction with a newly developed elastic fusing belt, attracts toner to the image transfer belt, transferring more toner to the media and improving image quality.
Improve coverage and appearance on textured surfaces. An (AC) image transfer system in conjunction with a newly developed elastic fusing belt, attracts toner to the image transfer belt, transferring more toner to the media and improving image quality.
Go big and bold
Accept print jobs that you previously turned away, thanks to oversize printing using either the bypass tray or the unique vacuum-feed large capacity tray (LCIT). Print 700mm up to 360 gsm.
Accept print jobs that you previously turned away, thanks to oversize printing using either the bypass tray or the unique vacuum-feed large capacity tray (LCIT). Print 700mm up to 360 gsm.
Simplify media selection
Enter up to 99 parameters per substrate to help operators select the correct media. You can even set up different ICC profiles for fronts and backs of sheets. If in doubt, the media identification kit can match any sample to one in the library, and set up the job.
Enter up to 99 parameters per substrate to help operators select the correct media. You can even set up different ICC profiles for fronts and backs of sheets. If in doubt, the media identification kit can match any sample to one in the library, and set up the job.
Maintain colour consistency
Avoid no-cost reprints with a system that monitors density variation. It adjusts developer bias and charger bias to help make sure there's adequate toner, ensuring colour consistency.
Avoid no-cost reprints with a system that monitors density variation. It adjusts developer bias and charger bias to help make sure there's adequate toner, ensuring colour consistency.
Get the reliability you need
The new Vacuum Feed LCIT is equipped with a 3 belt Vacuum paper pick up with side air fan. It ensures dependable feeding accuracy for a wide variety of media types, including coated, textured, coloured and clear media with weights up to 360gsm.
The new Vacuum Feed LCIT is equipped with a 3 belt Vacuum paper pick up with side air fan. It ensures dependable feeding accuracy for a wide variety of media types, including coated, textured, coloured and clear media with weights up to 360gsm.
Make booklets completely inline
Dazzle your customers with saddle stitch, square folds, full bleed booklets, and more, on coated or uncoated media up to 300 gsm. The Plockmatic 350 and Plockmatic 500 make it easy for your operators to save time and work accurately — the 7-inch colour GUI provides step-by-step instructions and helpful hints.
Dazzle your customers with saddle stitch, square folds, full bleed booklets, and more, on coated or uncoated media up to 300 gsm. The Plockmatic 350 and Plockmatic 500 make it easy for your operators to save time and work accurately — the 7-inch colour GUI provides step-by-step instructions and helpful hints.
Punch, punch tabs, double punch
Automate your punching workflow with the optional GBC StreamPunch Ultra, and offer ring bind, comb bind, coil bind, wire bind, ProClick, Velo bind options, and more, all inline and effortless. The finisher recognises both standard and European sizes when they're set up in the controller, and the standard and custom dies range from 3-hole to 44-hole.
Automate your punching workflow with the optional GBC StreamPunch Ultra, and offer ring bind, comb bind, coil bind, wire bind, ProClick, Velo bind options, and more, all inline and effortless. The finisher recognises both standard and European sizes when they're set up in the controller, and the standard and custom dies range from 3-hole to 44-hole.
Replace parts yourself to reduce downtime
Participate in Ricoh's Trained Customer Replceable Units (TCRU) program, and your trained operators can replace many parts themselves instead of waiting for a service tech.
Participate in Ricoh's Trained Customer Replceable Units (TCRU) program, and your trained operators can replace many parts themselves instead of waiting for a service tech.
GENERAL
Technology
5-drum dry electrostatic transfer system with internal transfer belt
Fusing
Copy/Print Speed
Oil less belt-fusing method
Pro C7100SX – 80ppm (Colour & Mono)
Pro C7110SX – 90ppm (Colour & Mono)
Pro C7110SX – 90ppm (Colour & Mono)
Scan Speed
Pro C7100SX – 120ipm simplex, 220ipm duplex (Colour & Mono, A4 200dpi)
Pro C7110SX – 120ipm simplex, 220ipm duplex (Colour & Mono, A4 200dpi)
Pro C7110SX – 120ipm simplex, 220ipm duplex (Colour & Mono, A4 200dpi)
Print Resolution
Warm-up time
Dimensions (WxDxH)
Weight
Power Source
Power Consumption
Duty Cycle
Up to 1200 x 4800dpi VCSEL
Less than 300 sec.
1,320 x 910 x 1,218mm
(5 Station) Less than 580kg
220-240V, 16A, 50/60Hz x 2
Less than 5000W
C7100X/C7100SX: 600K per month
C7110X/C7110SX: 700K per month
C7110X/C7110SX: 700K per month
MEDIA HANDLING
Paper Input Capacity
1st tray (std) 1,000 sheets x 2 (Tandem)
2nd tray (std) 500 sheets
3rd tray (Optional) 1,000 sheets
4th tray (Optional) 2,000 sheets
5th tray (Optional) 1,000 sheets
3rd-8th tray (Optional) Vacuum Feed LCT
2,200 sheets each
Bypass tray 500 sheets
2nd tray (std) 500 sheets
3rd tray (Optional) 1,000 sheets
4th tray (Optional) 2,000 sheets
5th tray (Optional) 1,000 sheets
3rd-8th tray (Optional) Vacuum Feed LCT
2,200 sheets each
Bypass tray 500 sheets
Max Printable Area
323mm x 480mm / 12.7” x 18.9”,
323mm x 692mm / 12.7” x 27.2” (when using Banner Sheet Tray Option)
323mm x 692mm / 12.7” x 27.2” (when using Banner Sheet Tray Option)
A3 LCT
3rd tray 52-256g/m2
4th tray 52-360g/m2
5th tray 52-256g/m2
4th tray 52-360g/m2
5th tray 52-256g/m2
Vacuum Feed LCT
3rd-8th tray 52-360gsm
Banner tray: 52-300g/m2
Bypass tray unit: 6th tray 52-216g/m2
Banner tray: 52-300g/m2
Bypass tray unit: 6th tray 52-216g/m2
COLOUR CONTROLLER
E-43A
E-83A
Configuration: External
CPU: Intel i5-4570 (2.9GHz up to 3.6GHz with Turbo)
Memory: 2GB x 2
HDD: 1TB x1 SATA
CD-ROM Drive: Supported DVD-RW
Operating System Windows 7 Professional for Embedded Systems x64
CPU: Intel i5-4570 (2.9GHz up to 3.6GHz with Turbo)
Memory: 2GB x 2
HDD: 1TB x1 SATA
CD-ROM Drive: Supported DVD-RW
Operating System Windows 7 Professional for Embedded Systems x64
Configuration: External
CPU: Intel Xeon (Quad-Core) Xeon E5-2637 (3.5GHz up to 3.8GHz w/Turbo)
Memory: 2GB x 8
HDD: 1TB x2 SATA / RAID 0 (for data)
500GB SATA (for OS)
CD-ROM Drive: Supported DVD-RW
Operating System Windows 7 Professional for Embedded Systems x64
CPU: Intel Xeon (Quad-Core) Xeon E5-2637 (3.5GHz up to 3.8GHz w/Turbo)
Memory: 2GB x 8
HDD: 1TB x2 SATA / RAID 0 (for data)
500GB SATA (for OS)
CD-ROM Drive: Supported DVD-RW
Operating System Windows 7 Professional for Embedded Systems x64
