Ricoh fi Series
fi-8290
High-Speed Flatbed Scanner
High-performance A4 duplex ADF and integrated flatbed scanner with 90 ppm / 180 ipm speeds, automatic separation control, and passport/booklet scanning.
01
90 ppm ADF
02
1.7s Flatbed
03
Auto Separation
04
PaperStream
Integrated Flatbed
Fast 1.7 sec flatbed scans.
Blazing Duplex ADF
90 ppm / 180 ipm.
Passports & Booklets
Up to 7mm thickness supported.
Intelligent Protection
iSOP sound & image monitoring.
Applications of Ricoh fi-8290 in Malaysia
The Ricoh fi-8290 delivers elite versatility and high-speed document processing for front-desks, medical networks, and central corporate offices across Malaysia.
Centralized Mailrooms & Centers
- High-speed batch processing of massive daily incoming paper streams
- Reliable 100-sheet ADF hopper capacity for continuous tasks
- Clear Image Capture technology for pristine legibility and indexing
- Seamless dual interface with USB 3.2 and Ethernet connectivity
Banking & Insurance Counters
- Rapid customer identity verification and document capture
- Integrated flatbed for fragile, bound, or thick ID documents
- Automatic Separation Control preventing multi-feed errors
- Streamlined front-office workflows with minimal staff intervention
Healthcare & Clinic Networks
- Digitization of patient records, charts, and physical identification
- Gentle flatbed handling for delicate historical medical charts
- Advanced paper protection monitoring against misfeeds or jams
- Robust 13,000-sheet daily cycle designed for heavy operations
Why Malaysian Businesses Choose fi-8290
Malaysian professionals trust the fi-8290 for its high-speed flatbed/ADF combo and intelligent processing:
- 90 ppm / 180 ipm high-speed duplex ADF
- 1.7 Second Flatbed rapid specialty capture
- Automatic Separation Control stops misfeeds
- 13,000 Sheets Daily high expected duty cycle
- iSOP Paper Protection intelligent safety sensors
- PaperStream IP advanced image cleanup driver
The ideal choice for organizations across Malaysia requiring high-speed multi-sheet ADF batch scanning combined with flatbed utility.
Details
Specifications
Video
Brochure
Comprehensive Overview: fi-8290

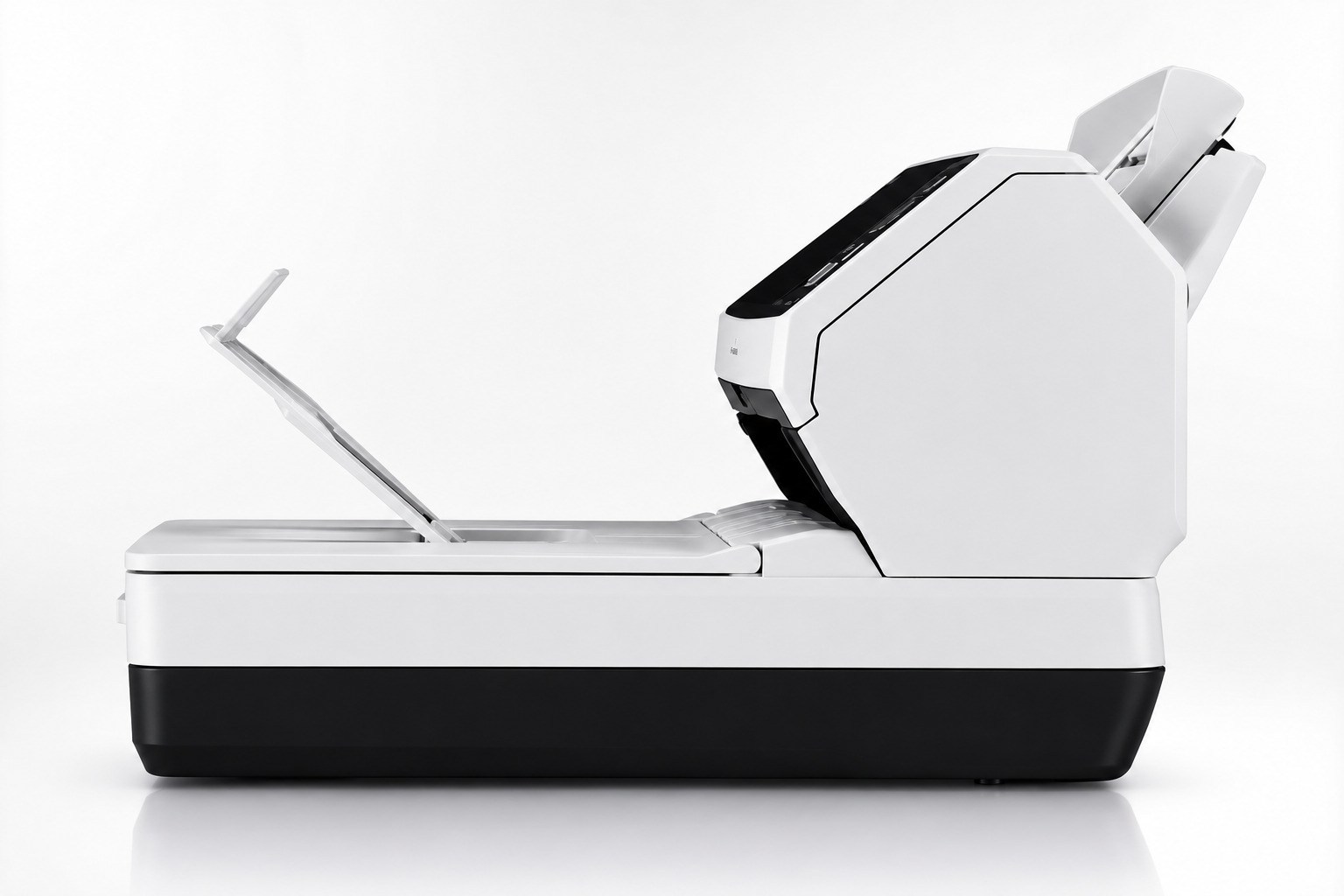

The Ricoh fi-8290 combines an intuitive flatbed with a blazing-fast 90 ppm automatic document feeder. It brings market-leading imaging quality and specialized paper handling to busy offices, letting you seamlessly switch between large stack processing and thick booklet/passport scanning.
Versatile Hybrid Utility
- • Fast ADF: 90 ppm / 180 ipm duplex performance.
- • Integrated Flatbed: Scans single bound pages or cards in 1.7 seconds.
- • Thick Media: Handles booklets up to 7mm thickness directly.
Advanced Intelligence
- • Automatic Separation Control: Optimizes pressure for smooth multi-feeds.
- • iSOP Protection: Detects anomalies via acoustic sensors to stop jams.
- • PaperStream IP: Exceptional clean driver output for optimal OCR.
Technical Specifications
Performance
- Scan Speed: 90 ppm / 180 ipm (ADF), 1.7 sec (Flatbed)
- Scan Mode: Color, Grayscale, Monochrome
- Optical Resolution: 600 dpi
- Light Source: RGB LED (ADF), White LED (Flatbed)
Interface & Size
- Interface: USB 3.2 Gen 1x1 / Ethernet (1000BASE-T)
- Max Document Size: 215.9 x 355.6 mm (ADF) / 215.9 x 297 mm (Flatbed)
- Dimensions: 300 x 577 x 234 mm
Handling Capacity
- ADF Capacity: 100 sheets
- Expected Daily Volume: 13,000 sheets
- Booklet Thickness: Up to 7 mm
- Multifeed Detection: Ultrasonic overlap sensor
Compatibility
- OS Support: Windows, Linux, macOS compatible
- Drivers: PaperStream IP (TWAIN/ISIS), WIA
- Power Requirement: AC 100 to 240 V
- Weight: 8.8 kg
Will be updated soon
Will be updated soon
Comparison Overview
| Feature | Ricoh fi-8290 | Traditional ADF Scanner | Flatbed Scanner |
|---|---|---|---|
| Scan Speed | 90 ppm / 180 ipm | 25-40 ppm | 10-15 sec/page |
| Flatbed Support | Integrated (1.7 sec) | None | Yes (Slow) |
| Daily Duty Cycle | 13,000 Sheets | 2,000-4,000 sheets | Low volume |
| Feed Control | Automatic Separation Control | Standard guide | Manual placement |
| Malaysia Supplier Support | Yes ✔ | Limited | Limited |
§ 03
Frequently asked questions
The fi-8290 scans at high speeds of 90 pages per minute (simplex) and 180 images per minute (duplex) via the ADF, and 1.7 seconds per page on the flatbed.
Yes! The integrated flatbed handles thick bound documents and booklets up to 7 mm thick without a carrier sheet.
It automatically adjusts feeding pressure sheet by sheet based on the paper batch size to completely prevent multi-feeds and misfeeds.
We provide full installation, setup guidance, and maintenance support across Malaysia for the fi-8290 scanner series.
