Product > Interactive Whiteboards > IWB D7500
Smart Interactive Board Big Touch Pad

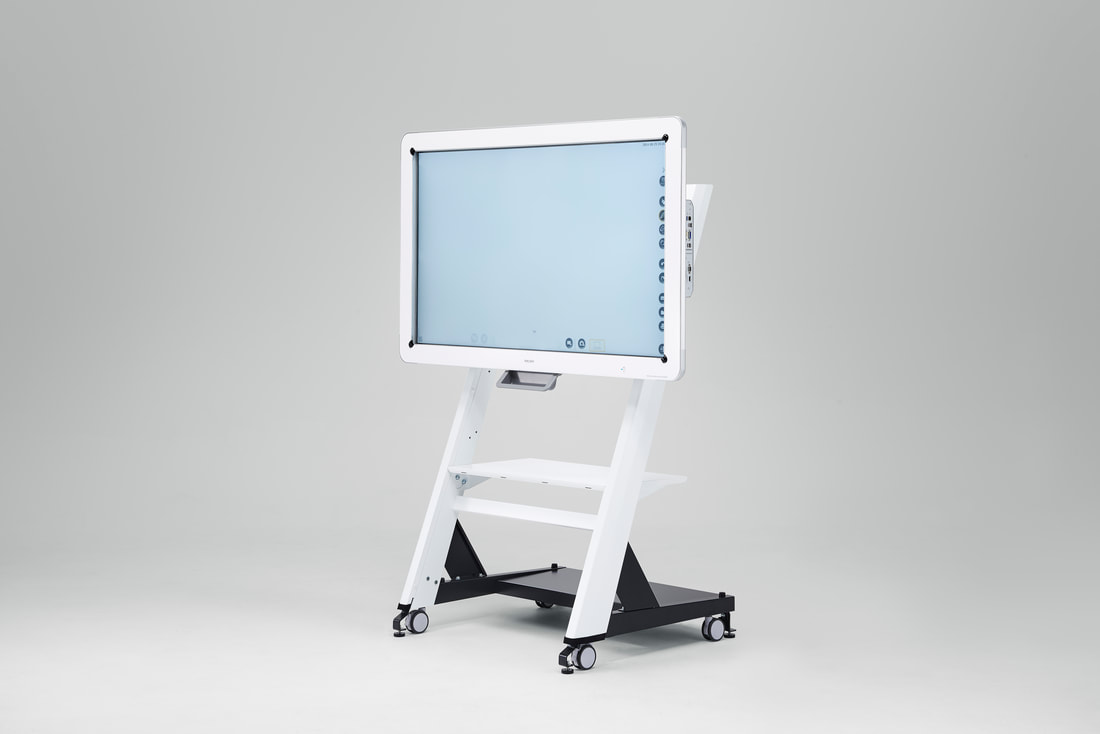

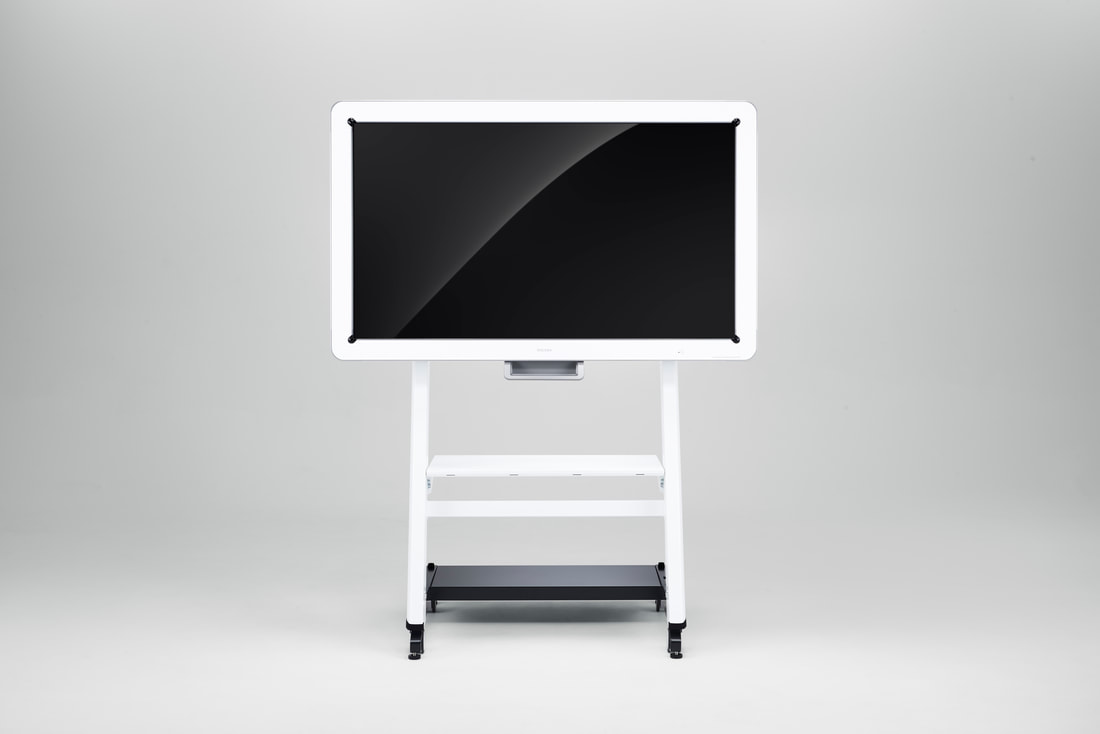

Papan Tulis Pintar Ricoh Interactive Whiteboard D7500
Features and Benefits
The Ricoh Interactive Whiteboard D7500 is a one-stop collaboration powerhouse. The 75-inch screen provides ample space for presenting and sharing ideas across the team. And it uses shadow sensing technology that enables precise document annotation. Now you can browse the web and securely share and mark up files, easily keeping the team aligned whether they’re in the room or across the world.
- One-stop collaboration hub with precise document annotation capabilities
- Video conference-ready with built-in speakers and microphone, and can be enhanced with a high-performance Ricoh camera
- Integrates with Ricoh video conference services: UCS and UCS Advanced, and Skype™ for Business
- Designed for ease of use with a choice between a Ricoh or an OS free controller, allowing you to work the way that suits you best
- Includes a variety of connectivity options, including multiple USB ports and Bluetooth connectivity for smart devices
- Adding Ricoh Streamline NX enables secure card-based device access and allows you to email and print anything produced on the whiteboard
Specifications
- General
- Display Panel
- Ecology
- Touch System
|
Interface (input) - Video |
VGA, HDMI, DVI-D, DisplayPort™ |
|
Interface (input) - Audio |
Line 3.5 mm |
|
Interface (output) - Video |
DisplayPort™ |
|
Interface (output) - Audio |
Speaker-out |
|
Interface (output) - Control |
USB2.0 Type B |
|
Microphone |
Built-in microphone |
|
Enhanced features |
Text OCR, IWB screen sharing to Ricoh UCS P3500, Network folder, Remote web browser viewing, Finger touch highlight, Zooming, Remote sharing function, Remote PC operation, E-mail function, Print function |
|
Enhanced features - Data saving form |
PDF v1.4 |
|
Enhanced features - Data saving |
USB memory |
|
Built-in speaker |
12 W x 2 |
|
Dimensions (W x D x H) |
1,783 x 198 x 1,055 mm |
|
Weight - Mainframe |
90 kg |
|
Weight - Full configuration |
93 kg |
|
Power source |
100 - 240 V, 50/60 Hz |
|
Control |
RS-232C(PC-control) |
|
Panel size - Diagonal |
74.52" wide (1,892.8 mm) |
|
Display type |
Liquid crystal display |
|
Backlight |
LED system |
|
Effective display area (W x H) |
1,649.6 x 927.9 mm |
|
Resolution - Maximum |
3,840 x 2,160 dot |
|
Colour - Maximum |
Over 1,070,000,000 colours |
|
Brightness - Maximum |
410 cd/m² |
|
Aspect ratio |
16 : 9 |
|
Contrast ratio |
1,200 : 1 |
|
Pixel pitch |
0.429 x 0.429 mm |
|
Response speed |
8 ms (Grey to Grey, Ave.) |
|
Viewing angle (H/V) |
Viewing angle (H/V) |
|
Cover glass - Thickness |
4mm |
|
Cover glass - Anti-glare |
AG pre-treated |
|
Power consumption - Maximum |
420 W |
|
Power consumption - Stand-by mode |
0.5 W |
|
Operating temperature |
0°C - 40°C |
|
Operating humidity |
10% - 90% |
|
Touch technology |
ShadowSense™ |
|
Touch point |
10 point (display only) |
|
Touch resolution |
1,920 x 1,080 |
|
Accuracy |
+/- 6.5 mm in touchable area |
|
Touch pen request |
>= 10 mm |
|
Touch output |
USB 2.0 (type B) |
|
Detection system electronic pen |
Light interception method (optional pen sensor kit and controller required) |
|
OS - Multi touch |
Windows 7 Home Premium, Windows 7 Ultimate, Windows 7 Professional, Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 IoT, Windows Embedded 7 Standard |
|
OS - Single touch |
Windows 7 Home Basic, Mac OS X 10.10 - Mac OS X 10.12 |
