Epson EB-L200X XGA Projector (Business Laser)
Use this flexible laser projector in the classroom to display clear, simple-to-read pictures.
Features and Benefit
The flexible EB-L200X long-throw laser projector lets you display clear, simple-to-read images in offices and classrooms from almost anyplace. The EB-L200X is a practical, reasonably priced projector for contemporary schools. It has a brightness of 4,200 lumens*1 and requires no lamp replacement for 20,000 hours of light source, making it practically maintenance-free. This adaptable projector, which was created with collaboration in mind, offers vibrant images with native XGA (4:3) resolution, as well as a number of interesting features, such as a potent 16 W speaker and built-in wireless and Miracast® support for simple content sharing from laptops and smart devices.
- 4,200 lumens of color and white brightness*1
- 20,000-hour laser light source with no lamps*7
- Native XGA (4:3) resolution
- Built-in Miracast
- Wirelessly share from devices
- 1.6x optical zoom
- Specifications
- Brochure
- Video
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system |
|
Brightness2: |
White Light Output (Normal/Eco): 4,200lm / 2,940lm Colour Light Output: 4,200 lm |
|
Connectivity: |

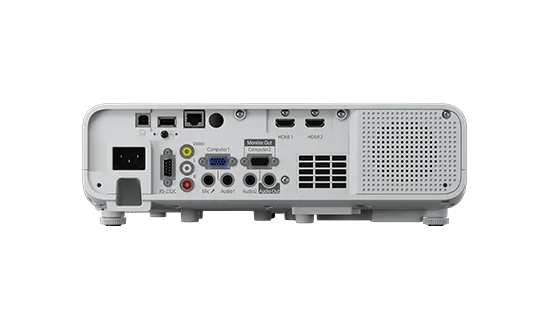

Network:Wireless: Built-in x 1 Optional x 1 (using optional ELPAP11) Wired Lan: RJ45 x 1 (100Mbps) Analog Input: D-Sub 15Pin: 2 (RGB) Composite RCA x 1 (Yellow) Digital Input: HDMI: 2 (HDCP 2.2) Analog Output Terminal: D-Sub 15Pin: 1 (Black) Audio Input: RCA: 1 (White, Red) Stereo Mini Jack: 2 Audio Output: Stereo Mini Jack: 1 Control I/O: RS-232C: D-Sub 9pin x 1 Others: USB Type A: 1 (for Saving and Reading Data via USB, Firmware Update, Copy OSD Settings, Document Camera) USB Type B: 1 (for Firmware Update, Copy OSD Settings) Mic I/O: Stereo Mini x 1 |
|
Screen Size (Projected Distance): |
Standard Size: Standard Size: 60” screen @ 169cm Zoom : Wide: 30” to 300” screen (83 – 854cm) |
|
Operating Temperature: |
Single Use: 0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No Condensation Multi-projection Use: 0 - 2,286 m (0 - 7,500 ft): 0 °C - 35 °C [32 °F - 95 °F ; 20% to 80% Humidity, No Condensation Over 2,286 m (7,500 ft): 0 - 30 °C [32 °F - 86 °F] ; 20%-80% Humidity, No Condensation |
|
Operating Altitude: |
Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft) |
|
Start-Up Period: |
Start-Up Period: Less than 8 seconds, Warm-up Period: 30 seconds Quick Start-Up: Less than 5 seconds (Display) |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Direct Power On/Off: |
Direct Power On/Off: Yes |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 309 x 90 x 282 mm |
|
Weight: |
Weight: Approx. 4.1kg |
|
Air Filter: |
Type: Electrostatic Filter Maintenance Cycle: 20,000 hours*5 |
|
Fan Noise: |
Fan Noise (Normal / Eco): 36dB / 26dB |
|
Power: |
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz |
|
Projectors Facets: |
Resolution, Projectors Facets: WXGA Contrast Ratio, Projectors Facets: 16,000:1 Brightness Range Lumens, Projectors Facets: 4001 Features, Projectors Facets: Wifi Quick Corner Laser / Lamp, Projectors Facets: Lamp |
|
Contrast Ratio: |
Contrast Ratio: Over 2,500,000 : 1 |
|
Geometric Correction: |
Vertical/Horizontal Keystone: ±30° / ±30° (Auto Vertical Keystone only) Quick Corner: Yes |
|
Optional Wireless & Built In Lan Specifications: |
Supported Speed for each Mode: Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*3, IEEE 802.11g (2.4GHz): 54Mbps*3 IEEE 802.11n (2.4GHz): 72.2Mbps*3, IEEE 802.11a (5GHz): 54Mbps*3, IEEE 802.11n (5GHz): 150Mbps*3, IEEE 802.11ac (5GHz): 325Mbps*3 Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*3, IEEE 802.11n (2.4GHz): 72.2Mbps*3, IEEE 802.11a (5GHz): 54Mbps*3, IEEE 802.11n (5GHz): 150Mbps*3, IEEE 802.11ac (5GHz): 325Mbps*3 Wireless LAN Security: Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast Access Point (Wi-Fi Direct): WPA2-PSK (AES) Supported Mode: Infrastructure, Access Point (Wi-Fi Direct) |
|
Specifications of Main Parts: |
LCD: Size: 0.63” (C2Fine) Resolution: XGA (1024 x 768) Lightsource: Type: Laser Diode Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs Projection Lens: Type: Optical Zoom (Manual) / Focus (Manual) F-Number: 1.51 – 1.99 Focal Length: 18.2 – 29.2mm Zoom Ratio: 1.0 – 1.62 (Optical Zoom) Throw Ratio: 1.38 - 2.24 |
|
Power Consumption (220-240V): |
Lamp On (Normal/Eco): 254W / 193W Standby: 2.0W / 0.5W (Network On / Off) |
|
Image: |
Noise Reduction:YesSuper-Resolution:YesDetail Enhancement:Yes |
