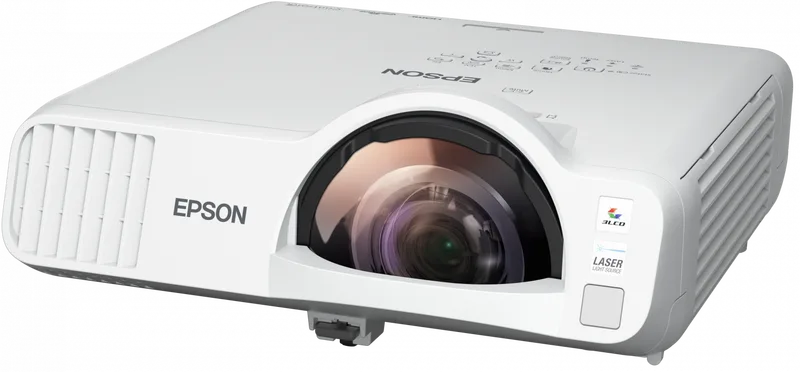

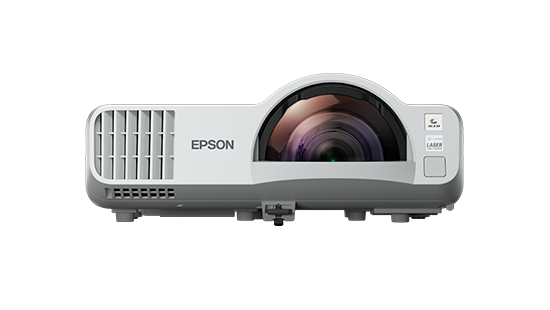

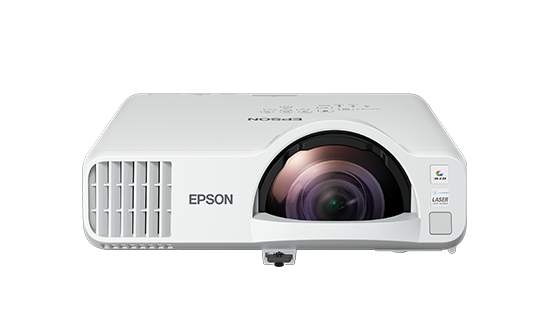

Epson EB-L200SX Wireless XGA 3LCD Short-throw Laser Projector
This XGA projector can display images up to 112" that are clear and simple to read.
Features and Benefit
The EB-L200SX XGA 3LCD short-throw laser projector makes it simple to easily project brilliant, easy-to-read images from practically anywhere in the classroom. The EB-L200SX maximises collaboration by delivering 3,600 lumens of brightness*1 and high-quality pictures up to 112". With no lamps to change and a light source that lasts up to 20,000 hours, this strong, dependable projector was made with ease of use in mind. It also has built-in wireless for added convenience. The EB-L200SX simplifies sharing interesting lesson plans with built-in Miracast® and split screen*3 for up to four connected devices.
- 3,600 lumens of colour/white brightness*1
- 20,000 hours laser light source
- XGA Resolution for images up to 112”
- Quick Start-up Mode
- Short throw ratio of 0.55-0.74 (Wide-Tele)
- Specifications
- Brochure
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Brightness: |
White Light Output (Normal/Eco): 3,600lm / 2,520lm Colour Light Output: 3,600lm |
|
Connectivity: |
Network: Wired LAN: RJ45 x 1 (100 Mbps) Wireless LAN: Built-in x 1; Optional x 1 (Using ELPAP11) Analog Input: D-Sub 15Pin: 2 (Blue) Composite: RCA x 1 (Yellow) Digital Input: HDMI: 2 (HDCP 2.2) Analog Output: D-sub 15Pin: 1 Audio Input: RCA (White/Red): 1 Stereo Mini Jack: 2 Audio Output: Stereo Mini Jack: 1 Mic I/O: Input: Stereo Mini Jack: 1 Control I/O: RS-232C: D-sub 9 pin x 1 USB Input: USB Type A: 1 (for USB Memory, USB Document Camera, Wireless LAN, Firmware Update, Copy OSD Settings) USB Type B: 1 (For Firmware Update and Copy OSD Settings) |
|
Contrast Ratio: |
Contrast Ratio: Over 2,500,000:1 |
|
Screen Size (Projected Distance): |
Zoom : Wide: 50" - 112" [0.54 - 1.26 m] Zoom : Tele: Standard Size: 82” screen 91cm |
|
Operating Temperature: |
Single Use: Low Altitude: 0 - 40 °C <32 - 104 °F> High Altitude: 0 - 35 °C <32 - 95 °F> 20% - 80% Humidity, No Condensation Multi-projection Use: Low Altitude: 0 - 35 °C <32 - 95 °F> High Altitude: 0 - 30 °C <32 - 86 °F> 20% - 80% Humidity, No Condensation |
|
Keystone Correction: |
Vertical/Horizontal: ±15º / ±15º Horizontal Slide Keystone Correction: Yes |
|
Start-Up Period: |
Start-Up Period: Less than 8 seconds, Less than 5 seconds (Quick Startup), Warm-up period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Internal Speaker(s): |
Sound Output: 16W Monaural |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 325 x 90 x 337mm |
|
Weight: |
Weight: 4.5kg |
|
Direct Power On / Off: |
Direct Power On / Off: Yes |
|
Fan Noise: |
Fan Noise (Normal / Eco): 37dB / 29dB |
|
Power: |
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz |
|
Specifications of Main Parts: |
LCD: Size: 0.55" (C2 Fine) Resolution: XGA Lightsource: Type: Laser Diode Life: 20,000 hours (Normal) / 30,000 hours (Extended) Projection Lens: Type: No Optical Zoom / Focus (Manual) F-Number: 1.60 Focal Length: 6.4mm Zoom Ratio: 1.0 - 1.35 (Digital Zoom) Throw Ratio: 0.55 - 0.74 (Wide - Tele) |
|
Projectors Facets: |
Resolution, Projectors Facets: XGA Contrast Ratio, Projectors Facets: Over 2,500,000:1 Inputs & Interfaces, Projectors Facets: HDMI Epson Creative Projection App RJ-45 & RS-232 USB Plug and Play Brightness Range Lumens, Projectors Facets: 2000 Features, Projectors Facets: Wifi Quick Corner Short Throw Edge Blending Laser / Lamp, Projectors Facets: Laser |
|
Wireless Specifications (Wireless LAN: Built-in): |
Supported Speed for Each Mode: Infrastructure: IEEE 802.11b (2.4GHz): 11 Mbps*3, IEEE 802.11g (2.4GHz): 54 Mbps*3, IEEE 802.11n (2.4GHz): 72.2 Mbps*3, IEEE 802.11a (5GHz): 54 Mbps*3, IEEE 802.11n (5GHz): 150 Mbps*3, IEEE 802.11ac (5GHz): 325 Mbps*3 Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps*3, IEEE 802.11n (2.4GHz): 72.2 Mbps*3, IEEE 802.11a (5GHz): 54 Mbps*3, IEEE 802.11n (5GHz): 150 Mbps*3, IEEE 802.11ac (5GHz): 325 Mbps*3 Wireless LAN Security: Infrastructure: Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast Access Point (Wi-Fi Direct): WPA2-PSK (AES) Supported Connection Mode: Infrastructure, Access Point (Wi-Fi Direct) |
|
Power Consumption (220 - 240V): |
Laser Diode ON (Normal / Extended): 254W / 193W Stand By: 2.0W / 0.5W (On / Off) |
|
Air Filter: |
Type: Electrostatic Filter Maintenance Cycle: 20,000 hours |
