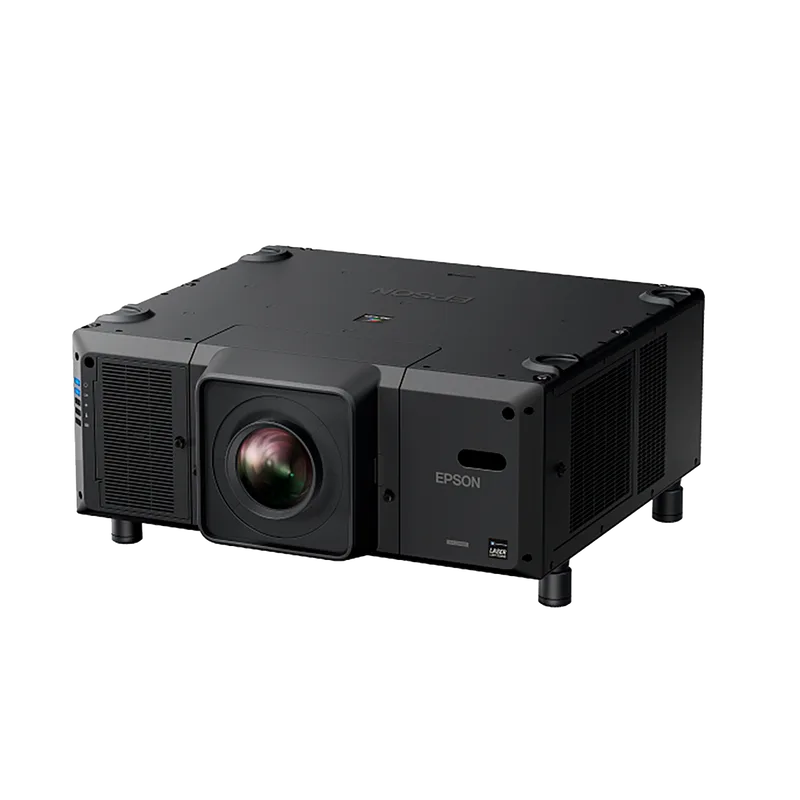

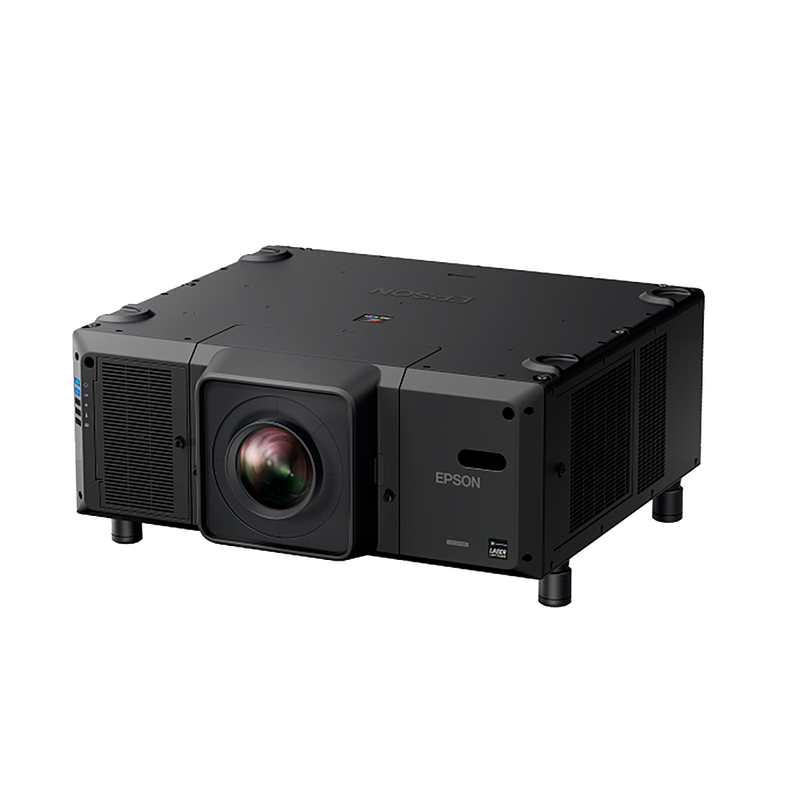

Epson EB-L30000UNL Laser WUXGA 3LCD Projector
30,000 lumens 3lcd laser projector, the lightest and smallest in the world.
Features and Benefit
The Epson EB-L30000UNL, one of the lightest and smallest 30,000 lumen 3LCD projectors in the world with a 4K grade lens, offers exceptional image quality with exceptional levels of colour brightness. 20,000 hours** of maintenance-free operation for its laser light source and high heat resistance make it incredibly dependable. You can project in any direction you choose thanks to its flexible 360° rotation and tilt, and its assortment of lenses can meet all your projection demands.
- White and Colour Brightness at 30,000 lumens
- WUXGA (1920 x 1200) Resolution
- Inorganic LCD Panel and Phosphor Wheel
- HDBaseT Connectivity
- In Built camera for Auto Colour Calibration & Geometry Correction for Stacking
- Specifications
- Brochure
- Video
|
Specifications of Main Parts: |
LCD: Size: 1.43” (D8, C2 Fine) Native Resolution: WUXGA (1920 x 1200) Projection Lens: Focal Length: 54.7 - 73.0 mm Lens Exchange: Yes Lens Shift Mode: Powered Type: Power Zoom / Power Focus / Power Shift / Power Distortion (Rear Projection: Wide Lens / Short Throw / Zoom Lens only) Zoom Ratio: 1 - 1.35 F-Number: 1.9 - 2.1 Lamp: Type: Laser Diode Bank Life (Normal / Eco): 20,000 / 30,000 hours |
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Connectivity: |

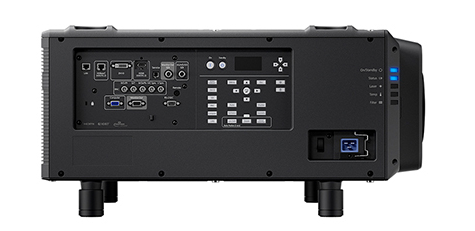

Network: Wired LAN: RJ-45 x 1 [Compliant with Control I/O (Art-Net)] Wireless Optional: (ELPAP10) Analog Input: D-Sub 15 pin: 1 (RGB, YCbCr, RGB-Video) 5BNC: 1 (RGB, YCbCr, RGB-Video) Digital Input: HDBaseT: 1 (HDCP 2.2) HDMI: 1 (HDCP 2.2) DVI-D: 1 (Single Link, HDCP 1.4) SDI: 1 (SD / HD / 3G) Analog Output: D-Sub 15Pin: 1 (RGB) Control I/O: Remote Control Input: 1 (Stereo Mini) RS-232C: 1 Digital Output: SDI (BNC): 1 (SDI Loop-Through) Others: USB Type A: 1 (Optional Wireless LAN, Firmware Update, Copy OSD Settings) USB Type B: 1 (Firmaware Update, Copy OSD Settings) |
|
Contrast Ratio: |
Contrast Ratio: Over 2,500,000:1 |
|
Wireless Specifications (Wireless LAN: Built-in): |
Supported Speed for Each Mode: IEEE 802.11b: 11Mbps*2 IEEE 802.11g: 54Mbps*2 IEEE 802.11n: 130Mbps*2 Wireless Security: Quick Mode: OPEN, WPA2-PSK Advanced Mode: OPEN, WPA/WPA2-PSK, WPA-Enterprise |
|
Projectors Facets: |
Resolution, Projectors Facets: WUXGA Contrast Ratio, Projectors Facets: Over 2,500,000:1 Features, Projectors Facets: Lens Interchangeable Wifi Quick Corner Edge Blending Projection Curve Corner wall 4k enhancement Laser / Lamp, Projectors Facets: Laser |
|
Screen Size (Projected Distance): |
Zoom : Wide: 100” - 1,000” [3.68 - 37.94 m] Zoom : Tele: 100” - 1,000” [5.0 - 51.03 m] |
|
Geometric Correction: |
Vertical/Horizontal Keystone: ±45° / ±30° (Zoom: Tele with Middle Throw Zoom Lens) Curve Surface: Yes (Except when in 4K Enhancement mode) Corner Wall: Yes (Except when in 4K Enhancement mode) Point Correction: Yes (Except when in 4K Enhancement mode) Quick Corner: Yes |
|
Operating Temperature: |
Operating Temperature: Low Altitude Mode: 0 - 50 °C <32 - 122 °F> (0m / 0ft - 2,286m / 7,500ft) High Altitude Mode: 0 - 40 °C <32 - 104 °F> (Over 2,286m / 4,921ft - 3,048m / 10,000ft) (20% - 80% Humidity, No Condensation) |
|
Operating Altitude: |
Operating Altitude: 0 - 3,048 m <0 - 10,000 ft> (Over 1,500m / 4,921ft : with High Altitude Mode) |
|
Start-Up Period: |
Start-Up Period: Less than 21 seconds, Warm-up period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant off |
|
Direct Power On/Off: |
Direct Power On/Off: Yes |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 790 x 299 x 710mm (Excluding foot, lens and handle) |
|
Power Supply Voltage: |
Power Supply Voltage: 200 - 240 V AC ±10%, 50/60 Hz |
|
Weight: |
Weight: 69.9kg (Including handle, excluding lens) |
|
Air Filter: |
Type: High Efficiency Filter (with Smoke Filter function*3) Maintenance Cycle: 20,000 hours*4 (Normal) / 30,000 hours*4 (Extended) |
|
Fan Noise: |
Fan Noise (Normal / Eco): 49dB / 41dB |
|
Power Consumption (220 - 240V): |
Laser Diode (Normal/Eco): 2325W / 1511W Standby (Communication On / Off): 2.5W / 0.5W |
|
Brightness*1: |
White Light Output (Normal/Quiet): 30,000lm / 21,000lm Colour Light Output: 30,000lm Light Output (Center): 32,300lm*** |
