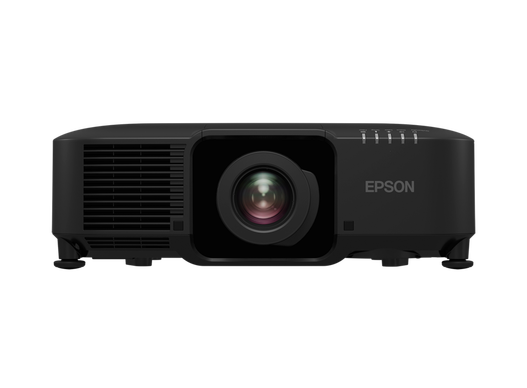

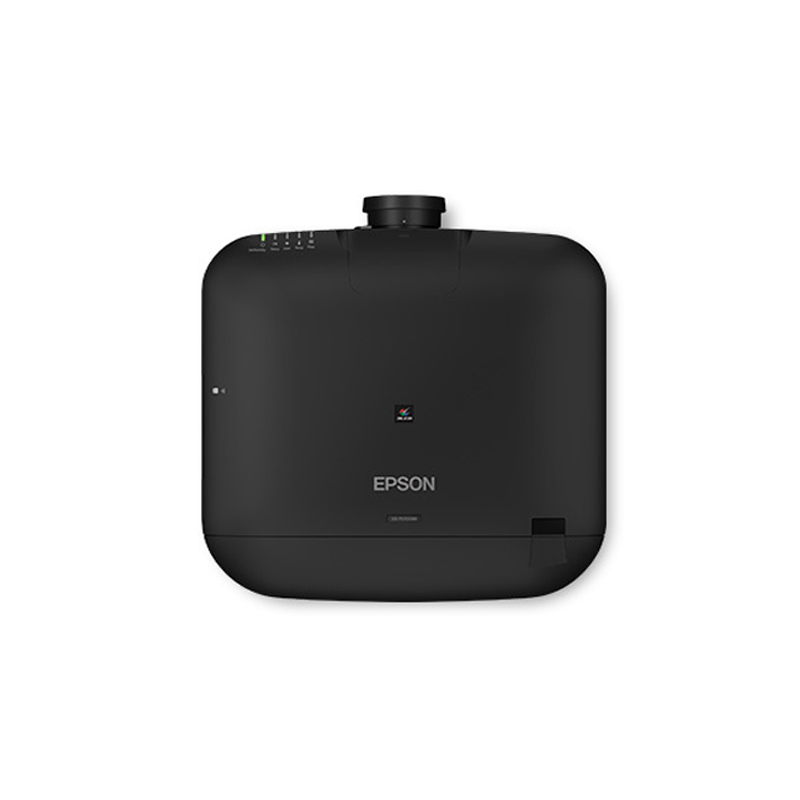

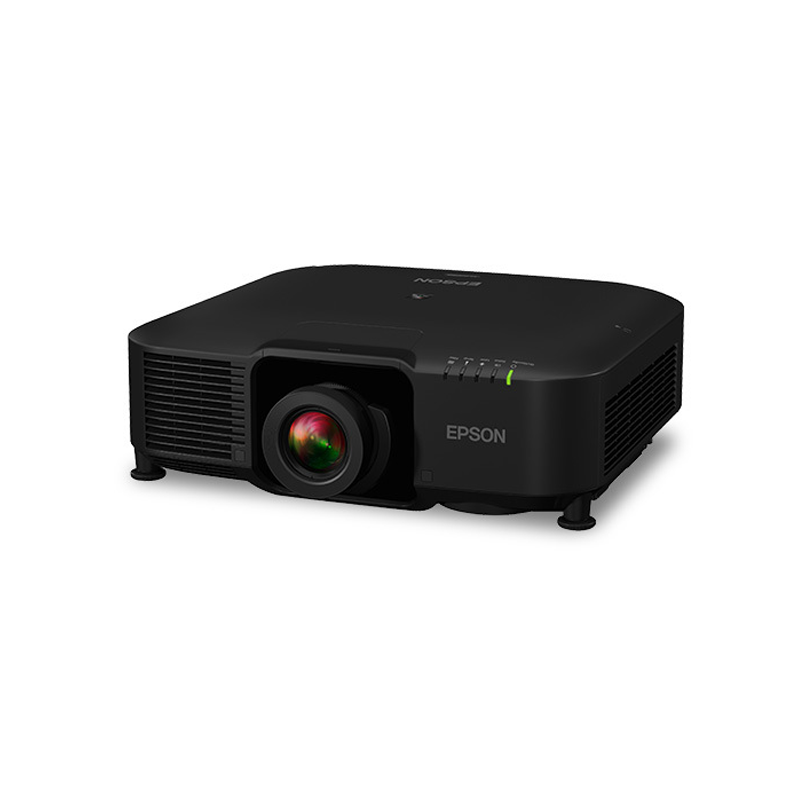

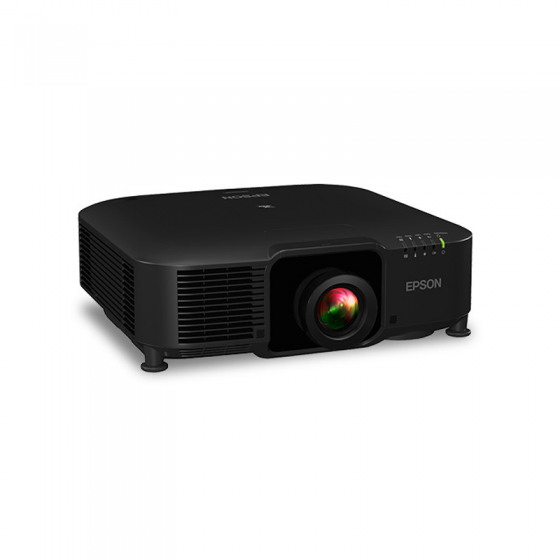

EB-PU1008B WUXGA 3LCD Laser Projector
Large-venue, high-end, portable laser projector with 4K Enhancement1.
Features and Benefit
The EB-PU2010B, a projector from Epson's Pro line, offers larger-than-life visuals from a stylish, potent device that is simple to set up. Its 10,000 lumen projector, which is the smallest and lightest in the world2, may be used with a variety of powered lenses, including a zero offset,.35 ultra short-throw lens.
This 3-chip, 3LCD projector offers best-in-class colour brightness4, 10,000 colour lumens, and 10,000 white lumens3, and has an air filter and 20,000-hour laser light source that require almost no maintenance.
You receive crystal-clear, lifelike images with Full HD WUXGA resolution and 4K Enhancement Technology1 (1920 x 1200 x 2). The time it takes to install and commission several projectors is decreased by SDI video in/out and built-in NFC function6. Additionally, a clip-on optional external camera gives users access to a variety of strong automated tools, such as automatic colour calibration7, screen matching for multiple projectors8, tiling assistance9 for edge blends, and the stacking assistance10 function.
This 3-chip, 3LCD projector offers best-in-class colour brightness4, 10,000 colour lumens, and 10,000 white lumens3, and has an air filter and 20,000-hour laser light source that require almost no maintenance.
You receive crystal-clear, lifelike images with Full HD WUXGA resolution and 4K Enhancement Technology1 (1920 x 1200 x 2). The time it takes to install and commission several projectors is decreased by SDI video in/out and built-in NFC function6. Additionally, a clip-on optional external camera gives users access to a variety of strong automated tools, such as automatic colour calibration7, screen matching for multiple projectors8, tiling assistance9 for edge blends, and the stacking assistance10 function.
- 10,000 lumens color/white brightness3
- Native WUXGA with 4K Enhancement Technology1
- Laser light source — up to 20,000 hours5 of use
- 9 optional powered lenses
- NFC function built-in6
- Specifications
- Brochure
|
Specifications: |
Projection System High-aperture Epson® 3LCD, 3-chip technology Projection Method Front/rear/ceiling mount Driving Method Poly-silicon TFT Active Matrix Pixel Number 2,304,000 dots (1920 x 1200) x 3 chips Signal Input Maximum Display Resolution: 4096 x 2160 (resizing display) Display Resolution: 1920 x 1200 pixels Native Resolution WUXGA with 4K Enhancement1 (1920 x 1200 x2) Resolution on Screen WUXGA with 4K1 Enhancement/4.6 million pixels1 Aspect Ratio Supports 4:3, 16:9, 16:10 Pixel Arrangement Cross stripe Color Brightness3 Color Light Output: 10,000 lumens White Brightness3 White Light Output:10,000 lumens Contrast Ratio 2,500,000:1 (Dynamic Contrast: On) Brightness Uniformity (typical) 85% Color Reproduction Up to 1.07 billion colors Keystone Correction Vertical: ±45 degrees; Horizontal: ±30 degrees Illumination Technology Laser Phosphor |
|
Projection Lens (Standard) |
Standard Lens ELPLM15 (sold separately) Type Powered shift/focus/zoom F-number 2.0 - 2.1 Focal Length 14.8 mm - 17.7 mm Zoom Ratio Optical zoom 1 – 1.6 Throw Ratio Range 1.57 - 2.56 Lens Shift Vertical: ±60%; horizontal: ±18% |
|
Eco Features |
RoHS compliant Recyclable product10 Epson America, Inc. is a SmartWay® Transport Partner11 |
|
Other Features |
Operating Temperature 32 ˚ to 113 ˚F (0 ˚ to 45 ˚C) Power Supply Voltage 100 – 240 V ±10%, 50/60 Hz AC Power Consumption 559 W (Normal, Custom) 469 W (Medium, Quiet, Extended) 2.0 W Standby (Communication on) 0.5 W Standby (Communication off) Fan Noise 33dB (Normal Mode), 31dB (Medium Mode), 29dB (Eco Mode) Security Security cable hole, lens lock, Kensington lock provision, wireless LAN unit lock |
|
Video I/O |
Input Signal Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160 |
|
Interfaces |

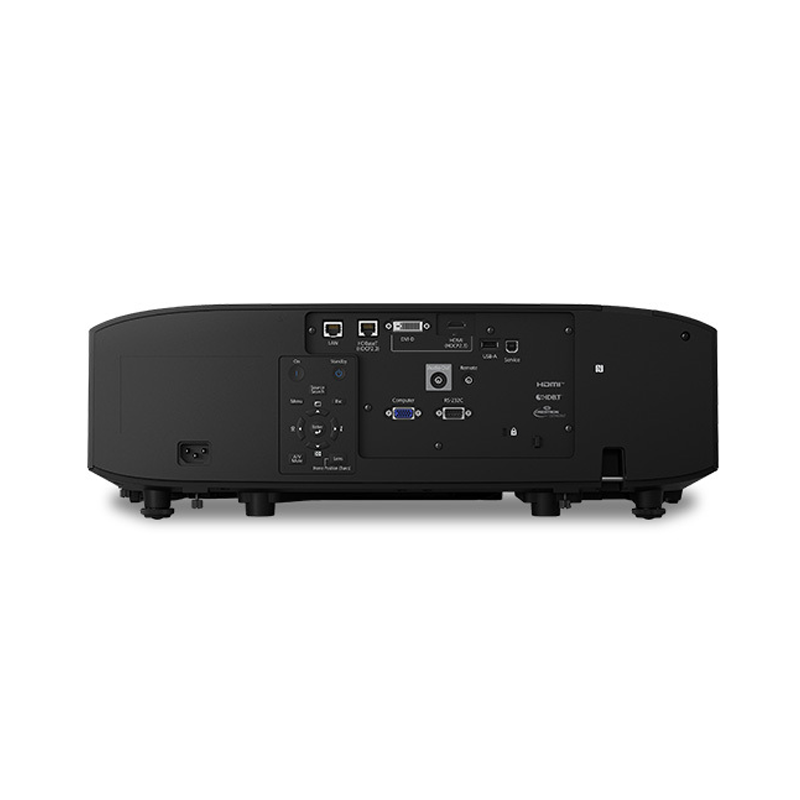

DVI-D x 1 HDMI (HDCP 2.3) x 1 HDBaseT x 1 RGB D-sub 15pin Variable audio out: Mini Stereo x 1 USB connector Type-B x 1 USB connector Type-A x 2 Serial: RS-232c x 1 Remote Stereo Mini Network: RJ-45 |
|
Dimensions (W x D x H) |
Excluding Feet, Lens 21.5" x 17.2" x 6.5" Weight 37 lb |
|
Remote Control |
Features Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions Operating Angle Angle Front: Right/Left: 60 to +60 Upper/Lower +30 to 20 degrees Angle Rear: Right/Left 30 to +30 Upper/Lower +50 to +10 degrees Operating Distance 98 ft |
