A4 Auto Feed Document Scanner

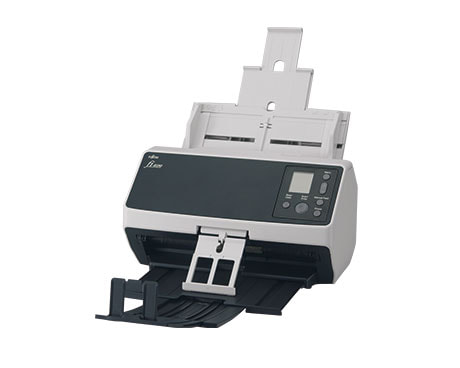

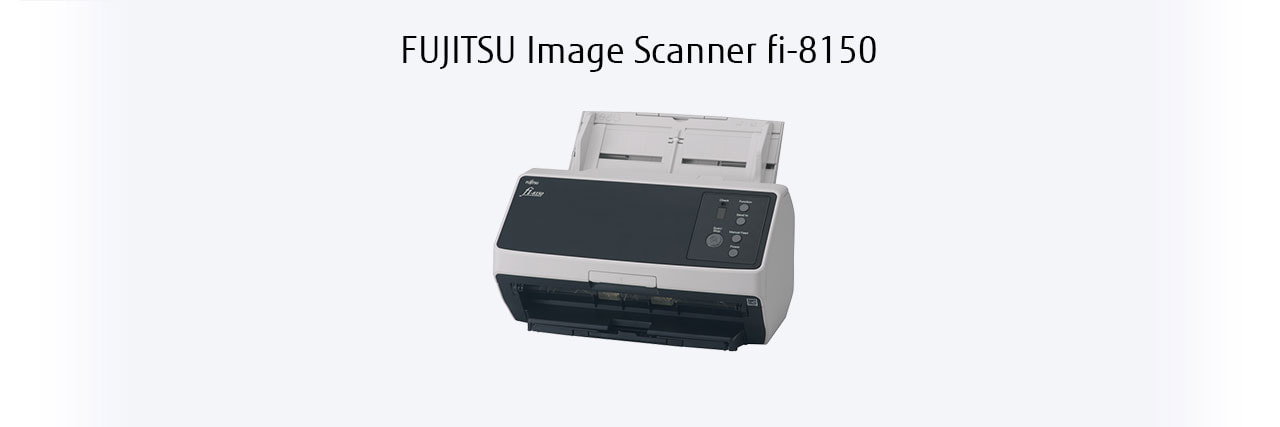

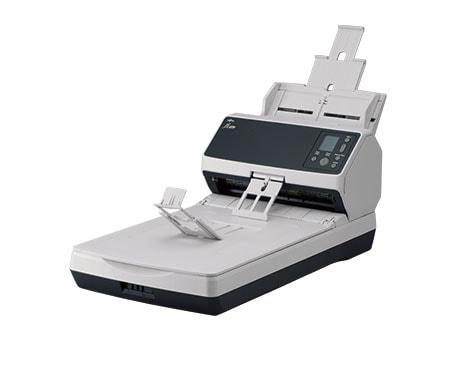

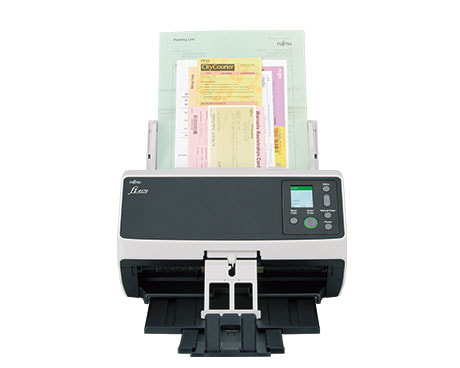

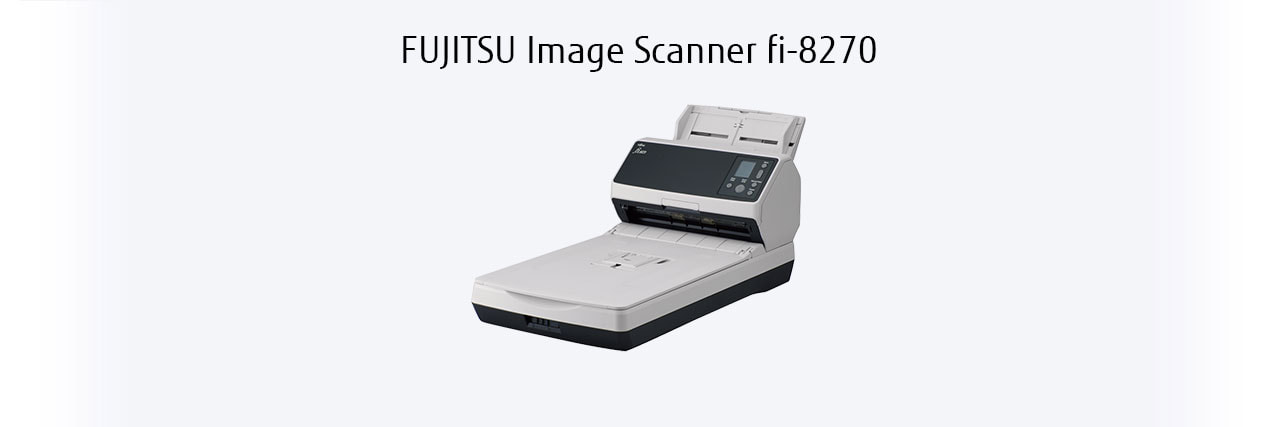

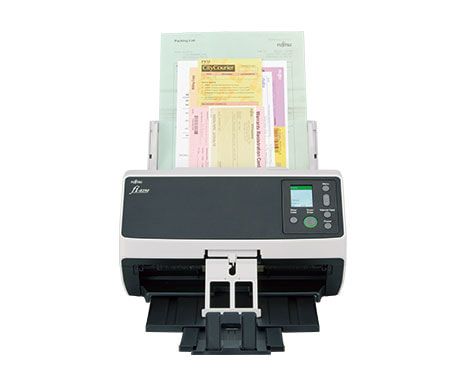

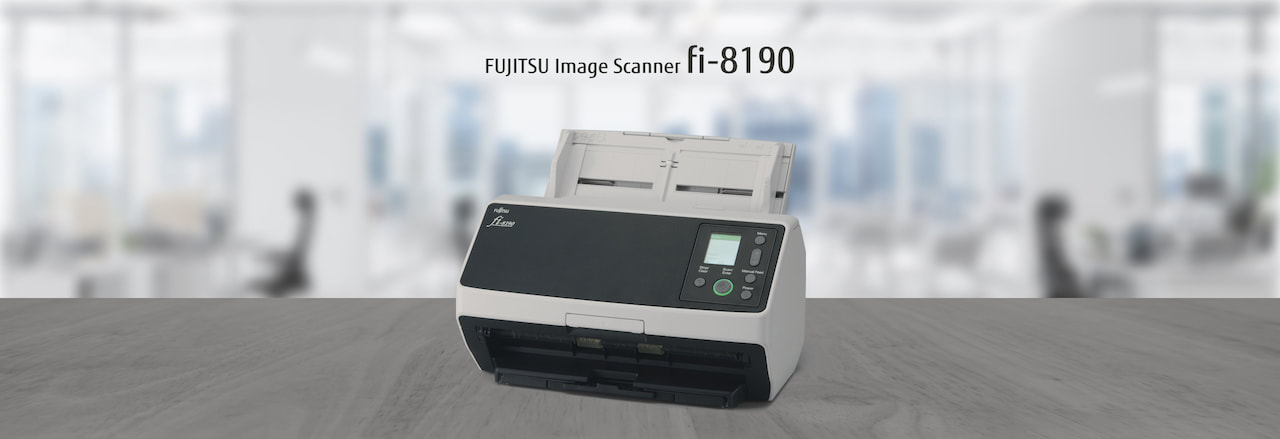

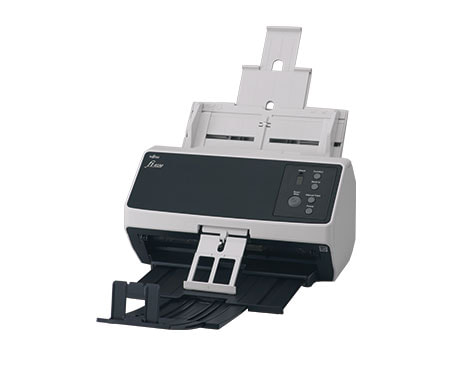

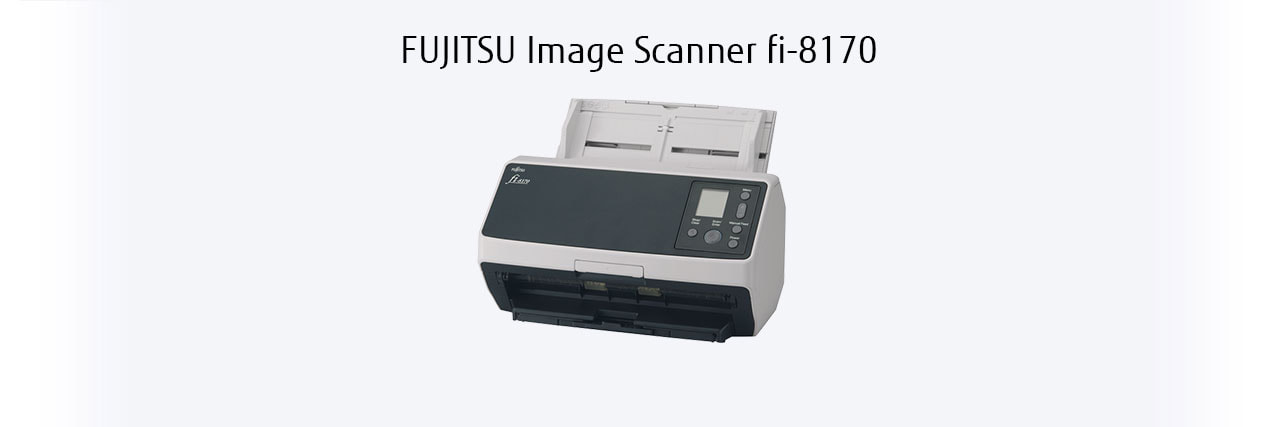

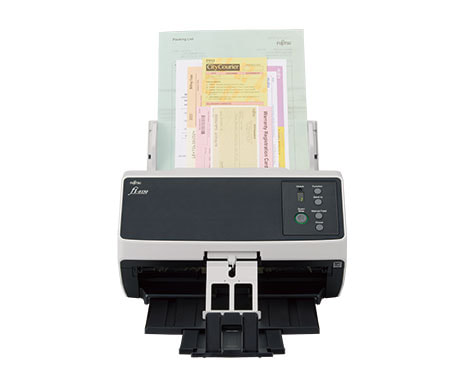

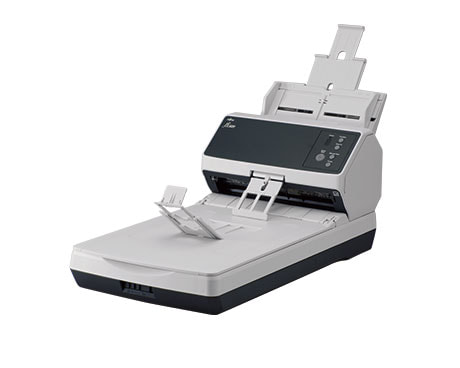

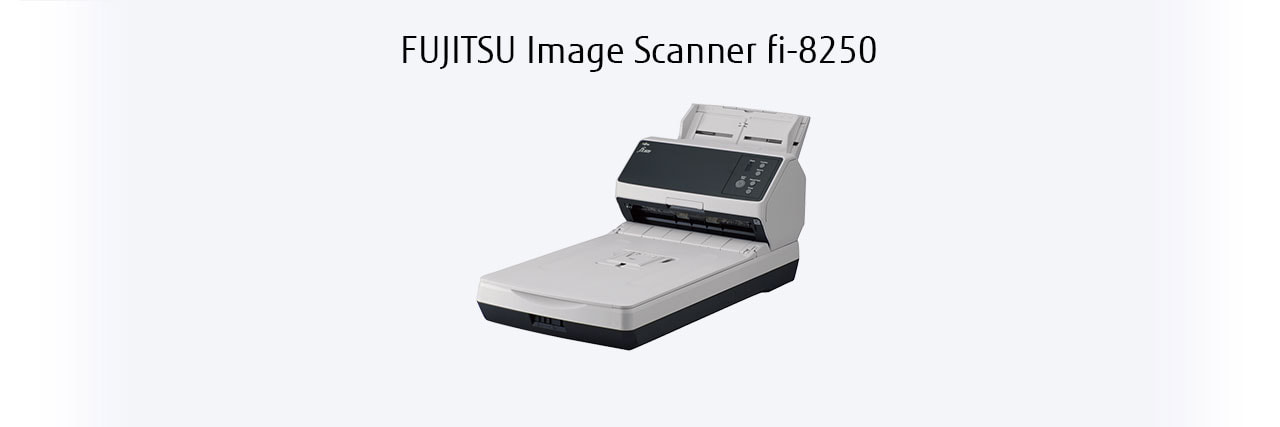

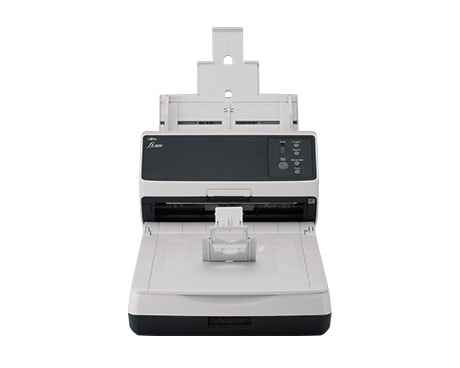

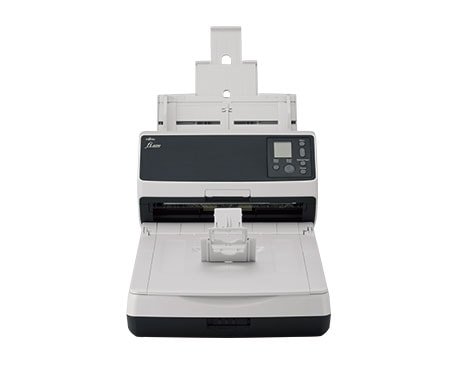

Fujitsu Ricoh Image Scanner fi-8190 / fi-8290 / fi-8170 / fi-8270 / fi-8150 / fi-8250
Features and Benefits
It provides a superior scanning experience with industry-leading paper handling, image quality and reliability. Compact and sturdy, the scanner achieves duplex scan speeds of 90 ppm/180 ipm, and loads up to 100 sheets at a time, with a capability of scanning up to as many as 13,000 sheets a day. The scanner includes software options, with automated features like blank page removal, image cleanup, autorotation, optical character recognition (OCR), and PDF creation.
- New Automatic Separation Control feature minimizes multi-feeds
- Clear Image Capture ensures color accuracy in documents
- Advanced feeding technology supports scanning thick documents without a carrier sheet, including passports and booklets
- Paper Stream Click Scan software allows for scanning in 3 simple steps
- Dual interface connections, supporting USB 3.2 and Ethernet wired network
- Color LCD Panel for easy operation from the front of the scanner
- PaperStream IP TWAIN and ISIS Driver cleans up images and reduces file size
- Included PaperStream Capture software provides powerful document separation and batch control
- PaperStream Capture Pro software available as an option, allows for meta data extraction, distributed scan stations, and database connectivity
Specification
- General
- Brochure
- Video
|
Product Name |
fi-8190 / fi-8290 / fi-8170 / fi-8270 / fi-8150 / fi-8250 |
|
Scanner Type |
ADF (Automatic Document Feeder) / Manual Feed, Duplex |
|
Scanning Speed*1 (A4 Landscape) (Color*2/Grayscale*2/Monochrome*3) |
fi-8190 Simplex: 90 ppm (200/300 dpi) Duplex: 180 ipm (200/300 dpi) fi-8290 ADF Simplex: 90 ppm (200/300 dpi) Duplex: 180 ipm (200/300 dpi) Flatbed 1.7 seconds (200/300 dpi) fi-8170 Simplex 70 ppm (200/300 dpi) Duplex 140 ipm (200/300 dpi) fi-8270 ADF Simplex: 70 ppm (200/300 dpi) Duplex: 140 ipm (200/300 dpi) Flatbed 1.7 seconds (200/300 dpi) fi-8150 Simplex 50 ppm (200/300 dpi) Duplex 100 ipm (200/300 dpi) fi-8250 ADF Simplex: 50 ppm (200/300 dpi) Duplex: 100 ipm (200/300 dpi) Flatbed 1.7 seconds (200/300 dpi) |
|
Image Sensor Type |
fi-8190 CIS x 2 (front x 1, back x 1) fi-8290 ADF: CIS x 2 (front x 1, back x 1) Flatbed: Color CCD X 1 fi-8170 CIS x 2 (front x 1, back x 1) fi-8270 ADF: CIS x 2 (front x 1, back x 1) Flatbed: Color CCD X 1 fi-8150 CIS x 2 (front x 1, back x 1) fi-8250 ADF: CIS x 2 (front x 1, back x 1) Flatbed: Color CCD X 1 |
|
Light Source |
fi-8190 RGB LED x 2 (front x 1, back x 1) fi-8290 ADF: RGB LED x 2 (front x 1, back x 1) Flatbed: White LED fi-8170 RGB LED x 2 (front x 1, back x 1) fi-8270 ADF: RGB LED x 2 (front x 1, back x 1) Flatbed: White LED fi-8150 RGB LED x 2 (front x 1, back x 1) fi-8250 ADF: RGB LED x 2 (front x 1, back x 1) Flatbed: White LED |
|
Light Source |
fi-8190 RGB LED x 2 (front x 1, back x 1) fi-8290 ADF: RGB LED x 2 (front x 1, back x 1) Flatbed: White LED fi-8170 RGB LED x 2 (front x 1, back x 1) fi-8270 ADF: RGB LED x 2 (front x 1, back x 1) Flatbed: White LED fi-8150 RGB LED x 2 (front x 1, back x 1) fi-8250 ADF: RGB LED x 2 (front x 1, back x 1) Flatbed: White LED |
|
Optical Resolution |
600 dpi |
|
Output Resolution*4 (Color / Grayscale / Monochrome) |
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5 |
|
Output Format |
Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit |
|
Background Colors |
fi-8190 White / Black (selectable) fi-8290 ADF: White / Black (selectable) Flatbed: White (or optional black) fi-8170 White / Black (selectable) fi-8270 ADF: White / Black (selectable) Flatbed: White (or optional black) fi-8150 White / Black (selectable) fi-8250 ADF: White / Black (selectable) Flatbed: White (or optional black) |
|
Document Size |
Maximum 215.9 x 355.6 mm (8.5 x 14 in.) Minimum 48 x 50 mm (1.9 x 2 in.) Long Page Scanning 6,096 mm (240 in.) |
|
Paper Weight (Thickness) |
Paper 20 to 465 g/m² (5.3 to 124 lb) Booklet Less than 7 mm (0.276 in.) Plastic Card 1.4 mm (0.055 in.) or less |
|
ADF Capacity |
100 sheets (A4 80 g/m2 or Letter 20 lb) |
|
Expected Daily Volume |
13,000 sheets | 13,000 sheets | 10,000 sheets | 10,000 sheets | 8,000 sheets | 8,000 sheets |
|
Multifeed Detection |
Overlap detection (Ultrasonic sensor), Length detection |
|
Paper Protection |
Image monitoring, Sound detection (iSOP) | Image monitoring, Sound detection (iSOP) | Image monitoring, Sound detection (iSOP) | Image monitoring, Sound detection (iSOP) | Image monitoring | Image monitoring |
|
Interface |
fi-8190 USB USB3.2 Gen1x1 / USB 2.0 / USB 1.1 Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T |
|
Power Requirements |
AC 100V - 240V 50/60 Hz |
|
Power Consumption |
fi-8190 Operating Mode 30 W or less / 17 W (Eco mode) Sleep Mode LAN: 2.0 W or less USB: 1.4 W or less Auto Standby (Off) Mode 0.2 W or less fi-8290 Operating Mode 30 W or less / 17 W (Eco mode) Sleep Mode LAN: 2.0 W or less USB: 1.4 W or less Auto Standby (Off) Mode 0.2 W or less fi-8170 Operating Mode 28 W or less / 17 W (Eco mode) Sleep Mode LAN: 2.0 W or less USB: 1.4 W or less Auto Standby (Off) Mode 0.2 W or less fi-8270 Operating Mode 28 W or less / 17 W (Eco mode) Sleep Mode LAN: 2.0 W or less USB: 1.4 W or less Auto Standby (Off) Mode 0.2 W or less fi-8150 Operating Mode 21 W or less / 17 W (Eco mode) Sleep Mode LAN: 2.0 W or less USB: 1.4 W or less Auto Standby (Off) Mode 0.2 W or less fi-8250 Operating Mode 21 W or less / 17 W (Eco mode) Sleep Mode LAN: 2.0 W or less USB: 1.4 W or less Auto Standby (Off) Mode 0.2 W or less |
|
Operating Environment |
Temperature : 5 to 35 °C (41 to 95 °F) Relative Humidity : 15 to 80% (non-condensing) |
|
Environmental Compliance |
ENERGY STAR®, RoHS |
|
Dimensions*11 (W x D x H) |
300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.) | 300 x 577 x 234 mm (11.8 x 22.7 x 9.2 in.) | 300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.) | 300 x 577 x 234 mm (11.8 x 22.7 x 9.2 in.) | 300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.) | 300 x 577 x 234 mm (11.8 x 22.7 x 9.2 in.) |
|
Weight |
4 kg (8.8 lb) | 8.8 kg (19.4 lb) | 4 kg (8.8 lb) | 8.8 kg (19.4 lb) | 4 kg (8.8 lb) | 8.8 kg (19.4 lb) |
|
Supported Operating System |
Windows® 11*16, Windows® 10*16, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, macOS, Linux (Ubuntu) |
|
Included Software / Drivers |
PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*17, Image Scanner Driver for macOS (ICA)*17*18, Image Scanner Driver for Linux (SANE)*17*18, PaperStream Capture, PaperStream ClickScan*18, PaperStream NX Manager, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™*18, Scanner Central Admin, 2D Barcode for PaperStream*18 |
|
Image Processing Functions |
Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold |
|
Included Items |
ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM |
