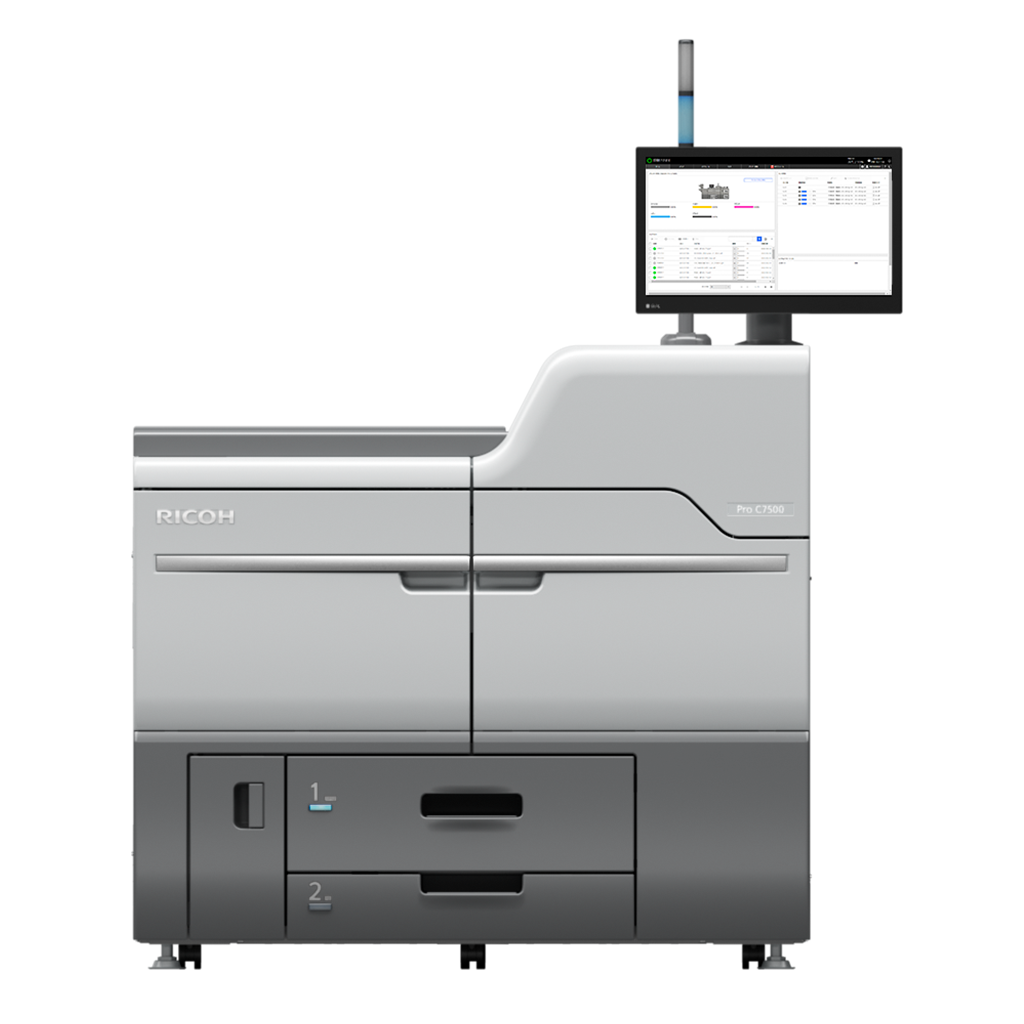

Ricoh Pro C7500 Colour Production Printer – Buy or Rent in PJ, KL & Malaysia

• The Pro C7500 is a medium volume digital color production printer.
• 21.5" operation panel
• RICOH GC OS controller
• 40–470 g/m2 paper support
• 960 mm continuous duplex printing
• Upgradeable to 5-station configuration
• It comes with a base print speed of 85 ppm that can be upgraded to 95 ppm by purchasing an optional productivity upgrade unit.
• Additionally, its standard 4-station toner configuration can be upgraded to include a 5th station for special color printing. A choice of clear, white, neon yellow, neon pink, invisible red, silver, or gold toner is available for the 5-station configuration.

​A3/11"x17" Tray Unit TK5010

• Converts the standard paper input tray from a tandem A4 tray to an A3 tray.
• Capacity: 1,000 sheets
• Paper size: B4, A3, A4 SEF
• Paper weight: 52–216 g/m2
• Dimensions (W x D x H): 495 x 530 x 175 mm
• Weight: 10 kg

​Multi-Bypass Tray BY5020

• Feeds up to 500 sheets of uncoated paper stocks for expanded system capacity and document output types.
• Capacity: 500 sheets
• Paper size: A5–13" x 19.2"
• Custom size: 100 x 330.2 x 139.7 x 487.7 mm
• Paper weight: 52–216 g/m²
• Power source: From mainframe
• Paper volume sensors: In 4 steps, near end 0%, 50%, 100%
• Dimensions (W x D x H): 690 x 561 x 210 mm
• Weight: 20 kg or less

​Extension Vacuum Feed Banner Sheet Tray Type S14

• Enables feeding of up to 960 mm banner sheet pages for a wider variety of applications. This option is attached to the Vacuum-Feed LCIT RT5150.
• Capacity: 500 sheets—0.1 mm paper thickness
• Paper size: 210–330.2 mm x 420–960 mm
• Paper weight: 52.3 g/m2–470 g/m2—420–487.7 mm; 52.3 g/m2–400 g/m2—487.8–700 mm; 63.1 g/m2–310 g/m2—700.1–960 mm
• Dimensions (W x D x H): 1,519 x 730 x 1,000 mm—when attached to Vacuum-Feed LCIT RT5150
• Weight: 23 kg or less

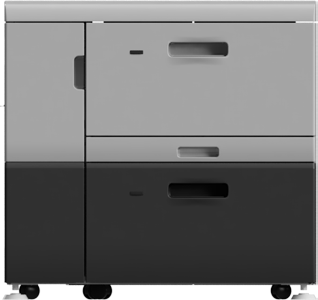

​Vacuum-Feed LCIT RT5150

• Optional Large Capacity Tray significantly increasing the capacity of the device.
• Capacity: 4,400 sheets—0.11 mm paper thickness
• 4,840 sheets—0.1 mm paper thickness
• Paper size: A5–13" x 19.2"
• Custom size: 100–330.2 mm x 139.7–487.7 mm
• Paper weight: 40–470 g/m²
• ​Weight: 230 kg
• Power source: 220–240 V
• Power consumption: 1,000 W

​Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9

• Required to configure the Multi-Bypass Tray BY5020 with the Vacuum-Feed LCT RT5120.

​Vacuum-Feed Banner Sheet Tray Type S9​

• Enables feeding of up to 700 mm banner sheet pages for a wider variety of applications. This option is attached to the upper tray of the Vacuum-Feed LCT RT5120.
• Capacity: 730 sheets
• Paper size: 210–330.2 mm x 420–700 mm
• Paper weight: 52–300 g/m²
• Note: Supported paper weight depends on mainframe.
• Power source: From LCT RT5120
• Dimensions (W x D x H): 1,290 x 730 x 1,000 mm—when attached to LCT RT5120; 1,290 x 730 x 1,302 mm—with cover open
• Weight: 7 kg or less

Multi-Bypass Banner Sheet Tray Type S9

• Extender for Multi-Bypass Tray BY5020 to accommodate oversize prints up to 700 mm in size and up to 216 g/m2 in weight.
• Paper weight: 52.3–216 g/m²
• Dimensions (W x D x H): 1,090 x 561 x 210 mm
• Weight: 9.5 kg or less

​Buffer Pass Unit Type S9

• Cools down printed paper to prevent toner adhesion or sticking before the paper is stacked or sent to the finishers. Recommended for printing on coated stocks, or with high toner coverage.
• Paper weight: 52.3–360 g/m²
• Power source: 220–240 V, 50–60 Hz, 1.5 A
• Power consumption: Less than 200 W
• Dimensions (W x D x H): 330 x 730 x 1,010 mm
• Weight: Less than 90 kg

​Multi-Folding Unit FD5030

• Provides automatic inline document folding with the ability to deliver folded output in several different patterns. Ideal for finished documents such as newsletters, brochures, menus, and marketing materials.
• Folding types:

          Single sheet mode

          Half-fold, Z-fold,

          Letter fold-in, Letter fold              out

         Multiple sheet mode (up             to 3 sheets)

• Letter fold-in, Letter fold out
• Paper size: A4—13" x 19.2"
• Paper weight:
• 64–105 g/m2—single sheet mode
• 64–80 g/m2—multiple sheet mode
• Power source: 220–240 V
• Power consumption: 60 W or less
• Dimensions (W x D x H): 209 x 730 x 1,000 mm
• Weight: 45 kg or les

​Finisher SR5110

• Provides 100-sheet stapling and optional hole punching.
• Paper size:
• Max. 330.2 x 487.7 mm (13" x 19.2"); min. 139.7 x 139.7 mm—without Z-fold
• 330.2 x 1,260 mm—with banner sheet output tray
• Max. 304 x 457 mm; min. 139.7 x 139.7 mm—with Z-fold
• Paper weight:
• 40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray)—without Z-fold
• 64–105 g/m2 —with Z-fold
• Note: Supported paper weight is dependent on the mainframe.
• Staple capacity: 100 sheets (A4); 50 sheets (A3)
• Staple positions: top, bottom, 2 staple, top slant
• Staple paper weight: 64–80 g/m2 (without Z-fold); 64–105 g/m2 (with Z-fold)
• Optional punch unit PU5030 available
• Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
• Weight: 135 kg
• Power source: 220–240 V ±10%, 50/60 Hz
• Power consumption: 150 W

​SR5000 Series Output Tray for Banner Sheet

​Type S6

• Required for banner sheet output for selected Ricoh finishers and booklet finishers.
• Capacity: 200 sheets (0.11mm/sheet)
• Paper size: width 210–330.2 mm, length 420–700 mm
• Paper weight: 52.3–300.0 g/m2

Punch Unit PU5030 SC

• Installed in a finisher of a printing device to enable automatic 4-hole punching of pages.
• Number of punch: 4 holes
• Punch registration: Supported; resist roller and side registration sensor
• Paper weight: 52–300 g/m2
• Performance: Same as engine speed

​Cover Interposer Tray CI5040

• Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.
• Capacity: 400 sheets (200 sheets x 2 trays)
• Paper height: 22 mm
• Paper size: A5–13" x 19.2"
• Custom size: 139.7–330.2 mm x 139.7–487.7 mm
• Available size: 139.7–1,260 mm (length), 100–330.2 mm (width)
• Paper weight: 52.3–350 g/m2 with plain paper; 105.1—350 g/m2 with coated paper
• Dimensions (W x D x H): 740 x 730 x 1,350 mm; width for connecting part is 330 mm
• Weight: 60 kg
• Power source: From mainframe
• Power consumption: 110 W, excluding peak consumption

​High Capacity Stacker SK5040

• Allows to handle large volume of output and move it with a roll-away cart that is included as standard. Up to 2 stackers can be configured in one system. An additional roll-away cart is available.
• Proof tray:
• Stack capacity: 250 sheets
• Paper size:

          A6–13" x 19.2"

• Paper weight:52–470 g/m2
• Note: 487–700 mm banner sheet supported when finisher is not attached.
• Shift tray:
• Stack capacity: 5,000 sheets—A4–13" x 19.2"; 2,500 sheets—B5
• Paper size: 139.7 x 139.7 mm–331 x 488 mm (13" x 19.2")
• Paper weight: 52–470 g/m2
• Note: Actual supported paper weight is dependent on the mainframe.
• Output jogger: Standard
• Roll-away cart: Includes 1 cart. Additional cart is optional.
• Door lock: Optional; includes a bracket for the lock
• Dimensions (W x D x H): 900 x 730 x 1,010 mm
• Weight: 131 kg or less: 135 kg or less with roll-away cart
• Power source: 220–240 V, 50–60 Hz, 0.8 Amps
• Power consumption: Less than 120 W

​Booklet Finisher SR5120

• Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Comes with dual shift trays for ‘non-stop delivery.’ Punch option is available.
• Capacity: 3,500 sheets (dual shift tray)
• Paper size:
• Without Z-fold
• Max. 330.2 x 487.7 mm (13" x 19.2"), min. 139.7 x 139.7 mm
• 330.2 x 1,260 mm—with banner sheet output tray
• With Z-fold
• Max. 304 x 457 mm, min. 139.7 x 139.7 mm
• Paper weight:
• Without Z-fold
• 40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray)
• With Z-fold
• 64–105 g/m2
• Staple capacity: 100 sheets (A4); 50 sheets (A3)
• Staple positions: top, bottom, 2 staple, top slant
• Staple paper weight: without Z-fold: 64–80 g/m2; with Z-fold: 64–105 g/m2
• Saddle stitch staple: 30 sheets (120-page booklet) with 80 g/m2 paper
• Optional punch unit PU5030 available
• Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
• Weight: 160 kg
• Power consumption:

           150 W

​Cover Interposer Tray Double-Feed Detection Kit Type S11

• When attached to the cover interposer, detects double feeds from the interposer.
• Dimensions (W x D x H): 126 x 317 x 56 mm
• Weight: 0.4 kg

Roll-Away Cart Type 5010

• An additional roll-away cart for the High-Capacity Stacker SK5040.
• Weight: 15 kg

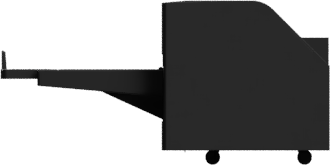

​Trimmer Unit TR5050

• Cuts the front edge of the book block after the book block is saddle stitched. Booklet Finisher SR5120 is required in order to attach this option.
• Stacker full detection: Supported
• Limitless stack: Supported
• Note: This setting is not user configurable; it needs to be configured by a Ricoh service engineer.
• Power source: External, universal power supply, 100–240 V, 50 Hz
• Power consumption: 75 W—average; 250 W—maximum
• Dimensions (W x D x H): 1,115 x 591 x 555 mm
• Weight: 75 kg

​Punch Unit PU5030 NA

• Punch Unit PU5030 NA
• Installed in a finisher of a printing device to enable automatic 2-hole or 3-hole punching of pages.
• Number of punch: 2 or 3 holes interchangeable
• Punch registration: Supported; resist roller and side registration sensor
• Paper weight: 52–300 g/m2
• Performance: Same as engine speed

​RPIP Interface Box Type S3

• Enables the inline connectivity of a Ricoh mainframe with a selected third party finishing option.
• Dimensions (W x D x H): 265 x 253 x 136 mm
• Weight: 0.55 kg

Extension Output Banner Sheet Tray Type S14

• Required for banner sheet output for selected Ricoh finishers and booklet finishers. Can be installed on an upper tray or lower tray. Note: A maximum of two units can be installed (upper tray and lower tray).
• Paper capacity (0.1 mm paper thickness):    When installed on upper tray                                230 sheets—488–762 mm                                100 sheets—up to 1,030 mm                                  50 sheets—up to 1,230 mm
• When installed on lower tray                                300 sheets—488–762 mm                                100 sheets—up to 1,030 mm                                  50 sheets—up to 1,230 mm
• Paper size:                Width: 100 x 330.2 mm Length: 139.7 x 1,260 mm
• Paper weight:               When installed on upper tray
• 40–350 g/m2—487.7 mm or less
• 105.1–350 g/m2—487.8–700 mm
• 105.1–310 g/m2—up to 960 mm
• 163.1–310 g/m2—up to 1,260 mm
• When installed on lower tray
• 40–470 g/m2—487.7 mm or less
• 52.3–470 g/m2—487.8–700 mm
• 105.1–310 g/m2—up to 960 mm
• 163.1–310 g/m2—up to 1,260 mm
• Note: Only limited media support is available for 300 g/m2 and above.

​Punch Unit PU5030 EU

• Punch Unit PU5030 EU
• Installed in a finisher of a printing device to enable automatic 2-hole or 4-hole punching of pages.
• Number of punch: 2 or 4 holes interchangeable
• Punch registration: Supported; resist roller and side registration sensor
• Paper weight: 52–300 g/m2
• Performance: Same as engine speed

​Color Controller N-50A

• An external color controller that is targeted at mid-volume production environments.
• System version: Fiery FS500 Pro
• Configuration: Optional
• CPU: Intel i5-8500
• Memory: 8 GB
• HDD: 256 GB SSD SATA—OS; 1 TB HD SATA—data
• Base operating system: Windows 10 IoT Enterprise 2019 LTSC
• Network protocol: Windows—TCP/IP; Mac—TCP/IP, EtherTalk, Bonjour
• Interfaces: 10Base-T/100Base-Tx (Ethernet), 1000Base-T (Gigabit Ethernet), USB 2.0 x 4—rear, USB 3.0 x 5—2 ports on the rear, 3 ports on the Fiery Quick Touch operation panel

​Color Controller N-70A

• An external color controller that is targeted at mid-volume production environments.
• System version: Fiery FS500 Pro
• Configuration: Optional
• CPU: Intel Xeon 4214 (Silver)
• Memory: 32 GB
• HDD: 480 GB SSD SATA—OS; 2 TB HD x 2 SATA—data
• Base operating system: Windows 10 IoT Enterprise 2019 LTSC
• Network protocol: Windows—TCP/IP; Mac—TCP/IP, EtherTalk, Bonjour
• Interfaces: 10Base-T/100Base-Tx (Ethernet), 1000Base-T (Gigabit Ethernet), USB 3.0 x 7—rear USB 3.0 x 4 ports, x 3 ports on the Fiery Quick Touch operation panel

​Productivity Upgrade Unit Type S14

• USB dongle to upgrade Pro C7500 base model print speed from 85 ppm to 95 ppm.

5th Station Upgrade Kit Type S14

• Upgrade kit to add a 5th toner station for special color printing.

​EFI 5th Station Hardware Upgrade Kit Type S9

• Mandatory option to enable 5th station printing on the Color Controller N-50A or Color Controller E-70A.
