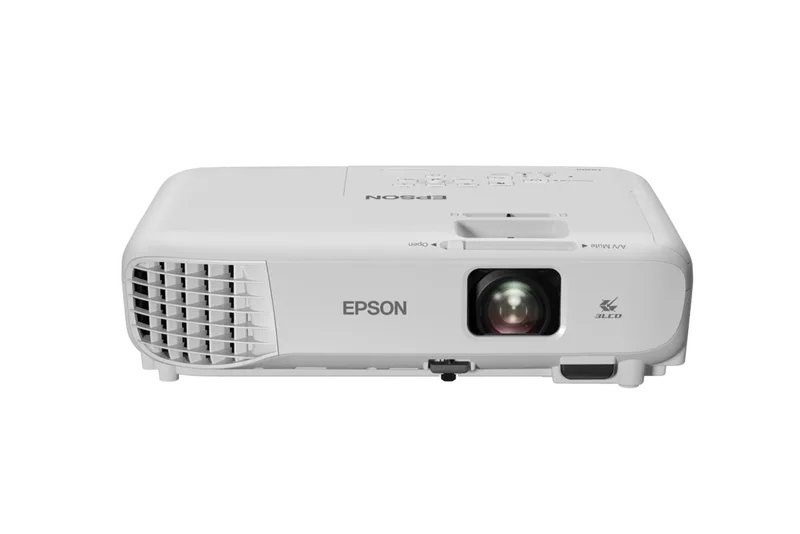

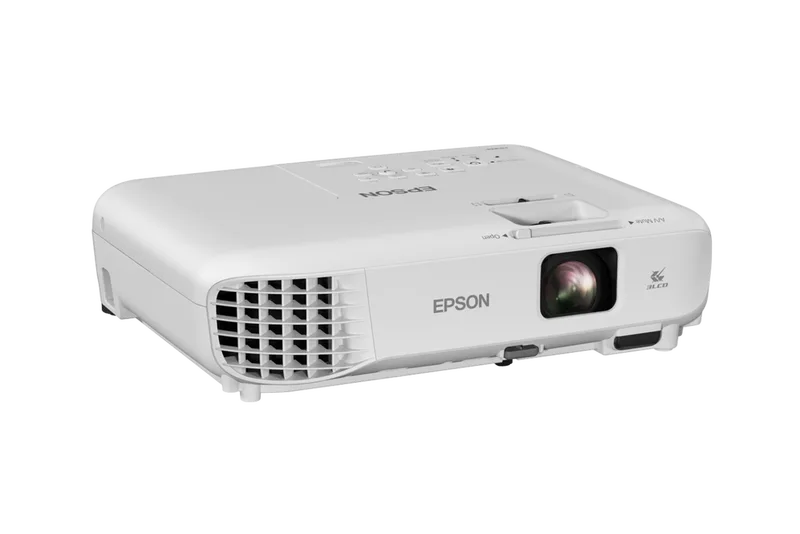

Epson EB-X06 XGA Projector
Use expressive projections to improve the learning environment.
Feature and Benefit
The EB-E10 classroom projector offers remarkable color accuracy, Epson projectors deliver high Color Brightness1. Reliable and easy to use, the EB-E10 features 3,600 lumens of color/white brightness, plus XGA resolution. Its long-lasting lamp, which delivers up to 12,000 hours in ECO Mode3, lowers maintenance costs.
- Projection System: 3LCD, 3-chip technology
- Native Resolution: 1024 x 768 (XGA)
- Color Brightness: V11H972052
- White Brightness: 3600 lumens
- Specifications
- Brochure
- Video
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Brightness2: |
White Light Output (Normal/Eco): 3,600 lm Colour Light Output: 3,600 lm |
|
Connectivity: |

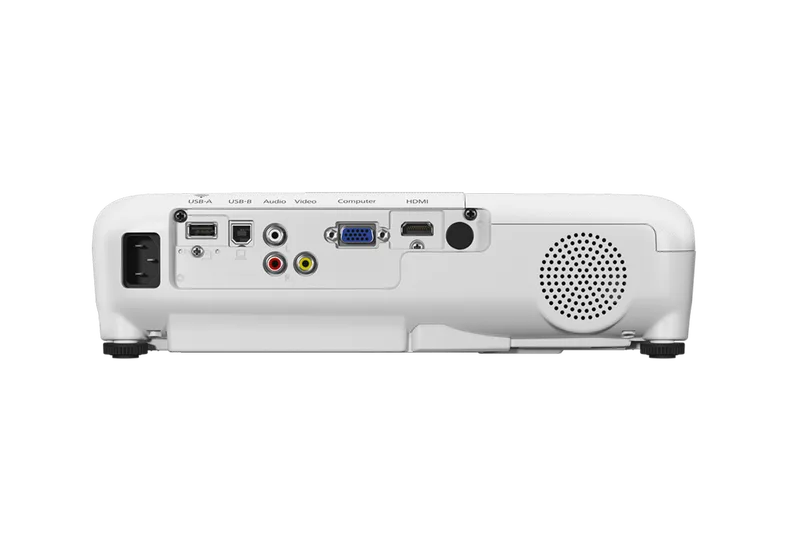

USB Interface: USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings) USB Type B: 1 (For Firmware Update, Copy OSD Settings) Network: Wireless: Optional (ELPAP11) Analog Input: Composite: 1 RCA D-Sub 15pin: 1 Digital Input: HDMI: 1 (MHL not supported) Audio Input: 2 RCA: 1 |
|
Screen Size (Projected Distance): |
Standard Size: Tele: 30” to 300” [1.07 to 10.95 m] Wide: 30” to 300” [0.89 to 9.12 m] |
|
Operating Temperature: |
Operating Temperature: Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F> (20% – 80% Humidity, No Condensation) |
|
Operating Altitude: |
Operating Altitude: 0– 3,048 m <0 – 10,000 ft> |
|
Start-Up Period: |
Start-Up Period: Up to 6 seconds, Warm-up Period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Direct Power On/Off: |
Direct Power On/Off: Yes |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 302 x 77 x 234 mm |
|
Weight: |
Weight: Approx. 2.5 kg |
|
Air Filter: |
Type: High Efficiency Filter Maintenance Cycle :6,000 / 12,000 hours*3 |
|
Fan Noise: |
Fan Noise (Normal / Eco): 37dB / 28dB |
|
Power: |
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz |
|
Projectors Facets: |
Resolution, Projectors Facets: XGA Contrast Ratio, Projectors Facets: 16,000:1 Brightness Range Lumens, Projectors Facets: 2000 Features, Projectors Facets: Quick Corner Laser / Lamp, Projectors Facets: Lamp |
|
Contrast Ratio: |
Contrast Ratio: 16,000:1 |
|
Geometric Correction: |
Vertical/Horizontal Keystone: ±30° / ±30° (Auto Vertical Keystone only) Quick Corner: Yes |
|
Optional Wireless & Built In Lan Specifications: |
Supported Speed for each Mode: IEEE 802.11a (5GHz): 54Mbps* 2Wireless LAN Security: Access Point: OPEN, WPA2-PSK (AES) |
|
Optional Wireless Specifications: |
Supported Speed for Each Mode: IEEE 802.11b (2.4GHz): 11 Mbps*2 IEEE 802.11a (5GHz): 54Mbps*2 IEEE 802.11g (2.4GHz): 54 Mbps*2 IEEE 802.11n (2.4GHz): 72.2 Mbps*2 IEEE 802.11n (5GHz): 150 Mbps*2 Wireless LAN Security: Infrastructure: OPEN, WPA2/WPA3-PSK Access Point: OPEN, WPA2-PSK (AES) |
|
Specifications of Main Parts: |
LCD: Native Resolution: XGA (1024 x 768) Size: 0.55” (C2fine) Lightsource:Type: 210W UHE Life (Normal / Eco): 6,000 / 12,000 hours Aspect Ratio:4:3 Projection Lens: F-Number: 1.49 – 1.72 Type: Optical Zoom (Manual) / Focus (Manual) Zoom Ratio: 1 – 1.2 Throw Ratio1.48 – 1.77 (Wide to Tele) |
