Digital Press Printing Machine

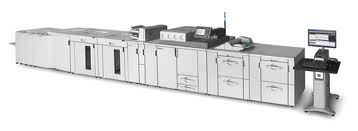

Ricoh ProC901s Fast Color Production Printer

Main Features

Digital Press Printing Machine Ricoh ProC901 / ProC901S Graphic Arts Edition is an advanced best-in-class digital colour production system that takes print quality and printer reliability to another level in the professional production print environment. Equipped to produce an incredible variety of printed materials, the Pro™C901/C901S provides impressive levels of versatility, scalability and performance. Its flexible workflow, feeding and inline finishing suits any print volume, low or high, while paper path technology enhancements significantly improve productivity, front to back registration and colour accuracy, impressively marrying offset-like quality with the added value of digital. The latest version of a proven Ricoh platform, the Pro™C901/C901S Graphic Arts Edition’s powerful features include:

• The market’s fastest press in its class, printing at rated speeds of 90 A4 pages per minute on media up to 300gsm in duplex mode

• Chemical PxP™ toner and oil less technology for improved accuracy, reliability, flexibility and ease-of-use delivering offset-like results

• Operator Replaceable Units (ORUs) for easy on-site maintenance and maximum uptime

• Extensive Ricoh built Media Library that automates media settings for high quality output and fast production workflow

• A choice of powerful print servers to suit any print production environment:

- EFI Fiery E-41 print server

- Creo C-81 Color Server

Specification

GENERAL

Technology : 4-drum dry electrostatic transfer system with internal transfer belt

Fusing : Oil less belt-fusing method

Toner Type: PxP™ polymerised chemical toner

Print speed: Full colour / mono: 90 / 90 prints per minute

Resolution : 1,200 x 1,200 dpi

Warm-up time : Less than 420 seconds

Dimensions (W x D x H) :

                Pro™ C901: 1,280 x 990 x 1,640mm

                Pro™ C901S: 2,555 x 990 x 1,640mm

Weight :

                Pro™ C901: Less than 630 kg

                Pro™ C901S: Less than 860 kg

Power source :  220/230/240V, 25 Amps, 50/60 Hz

Power consumption :

Printing: Less than 5,500W

                Stand-by:  Less than 3,200W

Duty cycle : 580,000 pages per month

SCANNER FEATURE

Resolution :

                Default dpi: 100/150/200/300/400/600

                Twain B/W: 100-1,200 dpi

                Twain Colour: 100-1,200 dpi

Scan Speed

                 (A4, 200 dpi) BW: 75 spm, FC 75 spm,

                 *scan speed (A4 LEF, 200 dpi)

Max Scan Area  :297 x 432mm

MEDIA HANDLING

Paper Input Capacity :

                Standard: 2 x 1,000 sheets, 1 x 500

                SRA3 Large Capacity Tray (LCT): 2 x 2,000

Max. Input Capacity  : 11,000 sheets (when 2 SRA3 LCTs and 500 Bypass Paper Tray connected)

Max. Output Capacity : 13,250 sheets (when 2 stackers and standard finisher connected)

Paper Size  Maximum: 330 x 487.7mm

Printable Area  Maximum: 320 x 480mm

Paper Weight  :

                Standard Trays: 60-220gsm

                SRA3 LCT RT5020: 60-300gsm

                Multi Bypass Tray: 52-216gsm

OTHER OPTIONS

Ricoh Professional booklet maker with optional fore-edge trimmer, Plockmatic Booklet maker with square fold option, cover insert and fore-edge or 3 side trimming option, GBC StreamPunch™ Pro, VM card, Bridge unit, 500-sheet multi bypass tray, Punch unit (2/4 switchable hole punch, Scandinavian 4 hole punch), DLT/A3 tray, Tab sheet unit, Z-folder, Dual station cover interposer, 3,000-sheet finisher with 100-sheet stapler and jogger unit, Saddle stitch unit, Ring Binder unit, Ring Binder unit, 2 x 2,000-sheet SRA3 large capacity trays, Cooling fan unit, Counter Interface Unit Type A, Cooling buffer pass, EFI Server FACI Furniture Bundle (for E-41), EFI Server HDD Security (for E-41), Creo Server Stand (for C-81), Spectrophotometer ES-1000 UV Filter, Spectrophotometer ES-1000 Non-UV Filter, Stacker with single or double connections, Roll away cart for stacker, Air paper separator unit, Operator Replaceable Units

WORKFLOW SOLUTIONS

EFI MicroPress®, EFI™ Digital StoreFront®, EFI™ Digital Color Profiler Suite, EFI™ Fiery® Graphic Arts Package Premium Edition Upgrade (option for EFI E-41), EFI™ SeeQuence Compose, Creo Process Power Pack, Creo Color Pack, Creo Imposition Pack, DirectSmile®, EFI™ Fiery® Central, Ready4Print, ATI, Objectif Lune PlanetPress, Objectif Lune PrintShop Mail

ENVIRONMENTAL INFORMATION

Engery Star 1.1 Pro™ C901/C901S with EFI Fiery E-41 print server

                        Pro™ C901/C901S with Creo C-81 Color Server

For availability of models, optional apparatus and software,

please contact your local Ricoh representative.

All brand and/or product names are trademarks of their respective owners.

Specifications are subject to change without prior notice.
