ID Card Scanner and A4 Scanner

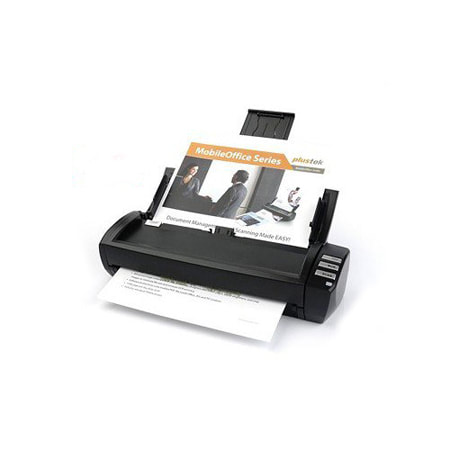

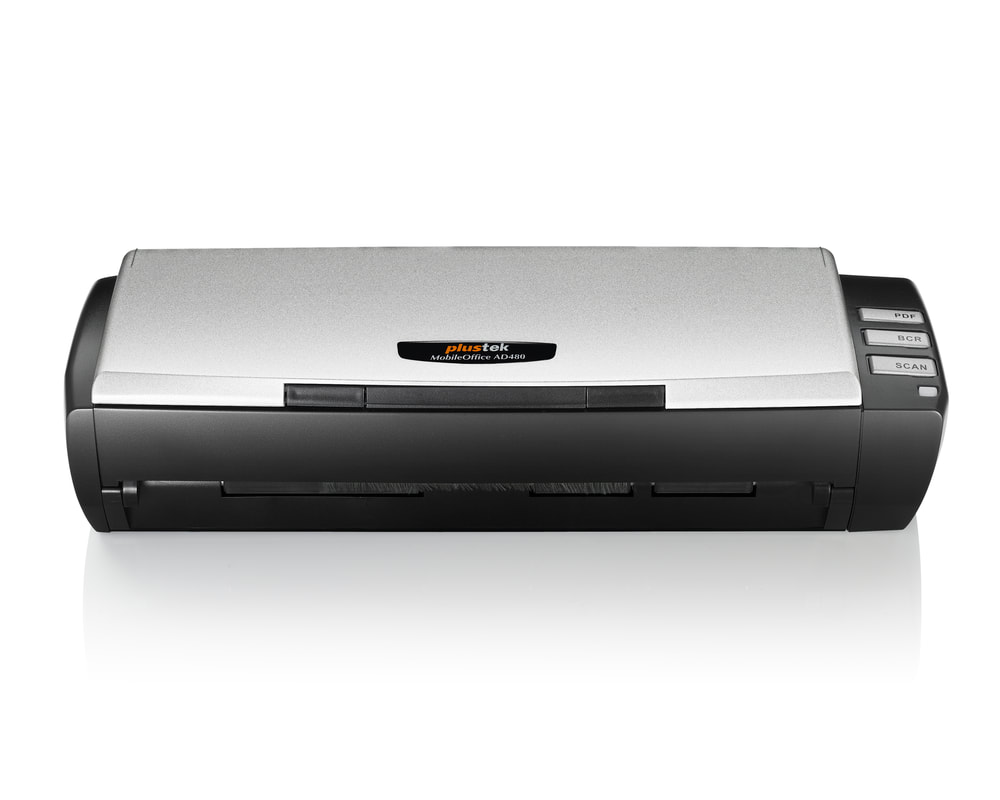

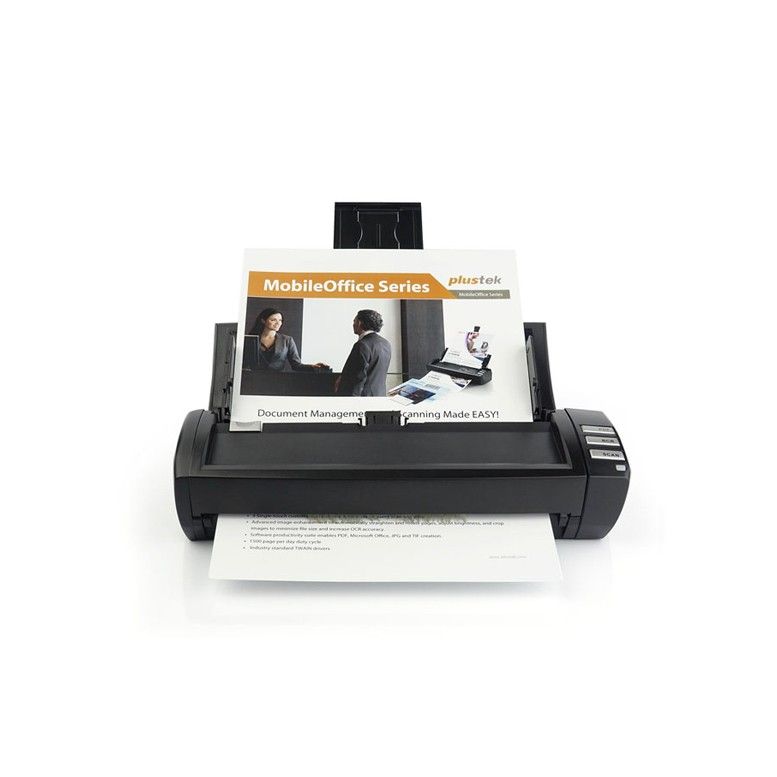

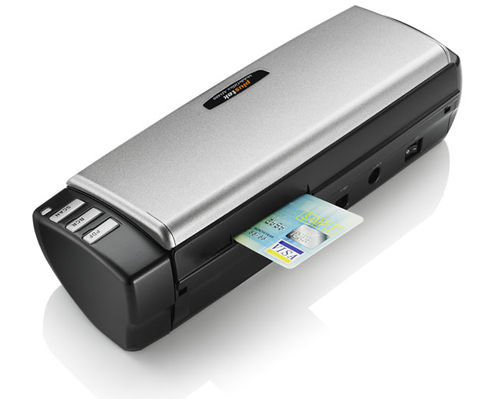

Plustek MobileOffice AD480​
Features and Benefits
ID Card Scanner and A4 Scanner Plustek AD480 scanner is versatile and robust mobile scanner in its class, designed for home and small offices. With double-sided scanning up to 20ppm and a 20-page ADF capacity users can scan efficiently, in the office or at home. It has a strong robust design for handling up to 1500 documents a day. It delivers speed, image quality, and great paper handling, along with easy integration and compatibility with document imaging applications.
- Compact Design
- User-friendly
- Features
- Bundled Softwares
Specification
- General
|
Image Sensor |
CIS x 2 |
|
Light Source |
LED |
|
Optical Resolution |
600 dpi |
|
Hardware Resolution |
600 x 600 dpi |
|
Scan Modes |
Color: 48-bit Input; 24-bit Output Grayscale: 16-bit Input; 8-bit Output B/W: 1-bit |
|
ADF Capacity |
20 Sheets (A4/ Letter, 70 g/㎡ or 18 Lbs) 6 Sheets (Business Card) |
|
Scanning Speed |
20 ppm / 40 ipm (Grayscale, 200 dpi, A4) 20 ppm / 40 ipm (B&W, 200 dpi, A4) 20 ppm / 40 ipm (Color, 200 dpi, A4 |
|
Scanning Area (W x L) |
ADF: Maximum: 216 x 914.4 mm (8.5" x 36") Minimum: 12.7 x 12.7 mm (0.5" x 0.5") Cardslot: Maximum: 90.9 x 105 mm (3.58" x 4.13") Minimum: 12.7 x 12.7 mm (0.5" x 0.5") |
|
Acceptable Paper Sizes (W x L) |
ADF: Maximum: 216 x 914.4 mm (8.5" x 36") Minimum: 50.8 x 50.8 mm (2" x 2") Cardslot: Maximum: 90.9 x 105 mm (3.58" x 4.13") Minimum: 50.8 x 50.8 mm (2" x 2") |
|
Acceptable Paper Weight (Thickness) |
Paper: 50 g/㎡ to 120 g/㎡ Plastic card: Non-Embossed up to 0.76 mm & Embossed up to 1.24 mm (ISO 7810) |
|
Daily Duty Scan |
1500 |
|
Roller Lifetime (Scans) |
100000 |
|
Pad Lifetime (Scans) |
20000 |
|
Action Butoon |
PDF, BCR, Scan |
|
Power Supply |
AC adapter: 24 Vdc/ 0.75 A |
|
Interface |
USB 2.0 |
|
Net Weight |
1.3 Kgs (2.87 Lbs) |
|
Dimensions (W x D x H) |
288.5 x 98 x 75 mm (11.36" x 3.8" x 2.96") |
|
Protocol |
TWAIN compliant |
|
OS |
Window XP / Vista / 7 / 8 / 10 |
|
|
|
