A4 Paper Book Document Scanner with Free OCR Software
Plustek SmartOffice PL4080
Features and Benefits

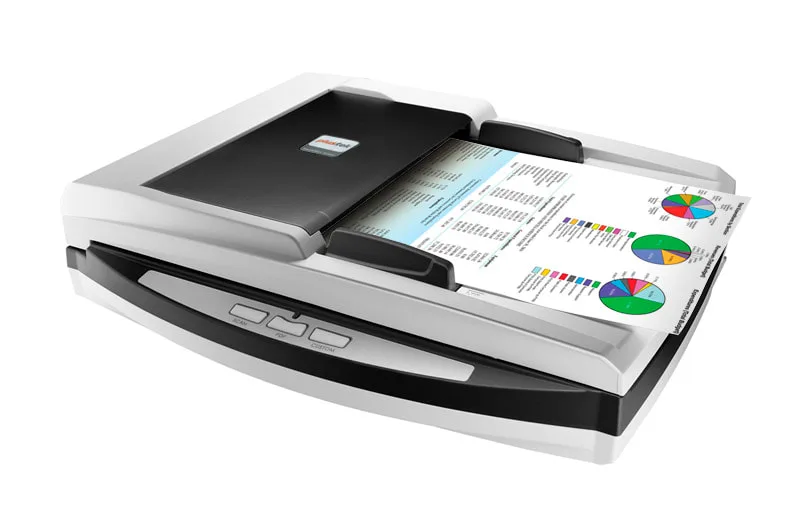

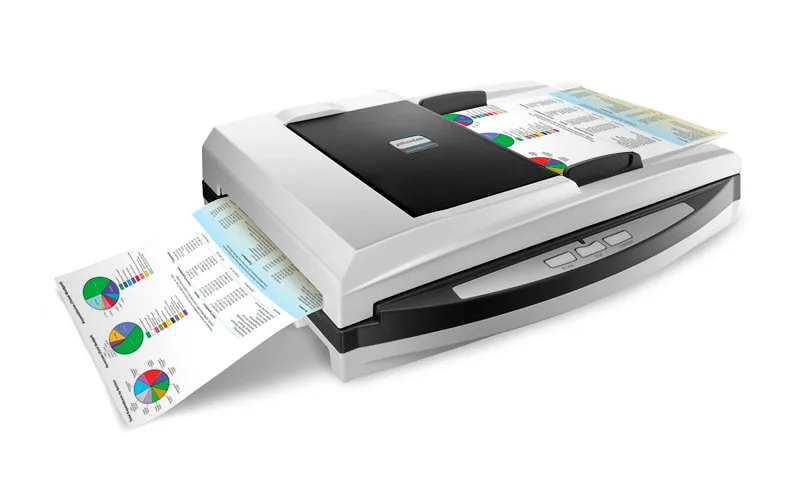

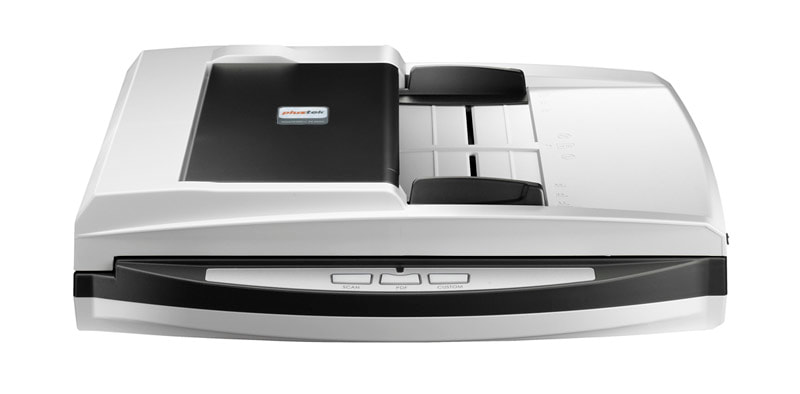

The Plustek SmartOffice PL4080 is a A4 Paper Book Document Scanner with Free OCR Software. It is a workgroup class document scanner is designed with the image quality, paper handling and reliability required by the most demanding business users.
- Auto-detection for ADF and Flatbed
- Complete Your Scanning with One Touch
- Compatible with most imaging applications
- Environmentally Responsible and Energy-Saving
Specification
- General
|
Image Sensor |
CIS x 2 |
|
Light Source |
LED |
|
Optical Resolution |
600 dpi |
|
Hardware Resolution |
Flatbed: 1200 x 1200 dpi ADF: 600 x 600 dpi |
|
Scan Modes |
Color: Input 48-bit, Output 24-bit Grayscale: Input 16-bit, Output 8-bit Black & White: 1-bit |
|
ADF Capacity |
1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2"). 2. 20 sheets (Business Cards). Note: Maximum ADF capacity varies, depending upon paper weight. |
|
Scanning Speed (ADF) |
40 ppm/ 80 ipm (Color mode, 200 dpi, A4 Portrait) 40 ppm/ 80 ipm (Grayscale mode, 200 dpi, A4 Portrait) 40 ppm/ 80 ipm (B&W mode, 200 dpi, A4 Portrait) Note: Results may vary depending upon your scanning application, computer processor and system memory. |
|
Scanning Area ( W x L) |
Flatbed: Max. 216 x 297 mm (8.5” x 11.69”) Min. 12.7 x 12.7 mm (0.5” x 0.5”) ADF: Max. 216 x 356 mm (8.5” x 14”) Min. 12.7 x 12.7 mm (0.5” x 0.5”) |
|
Acceptable Paper Size (W x L) |
Flatbed: Max. 216 x 297 mm (8.5” x 11.69”) Min. 12.7 x 12.7 mm (0.5” x 0.5”) ADF: Max. 220 x 1270 mm (8.66” x 50”) Min. 90 x 50.8 mm (3.55” x 2”) |
|
Acceptable Paper Weight (Thickness) |
50 to 120 g/㎡ (14 to 32 Lbs) |
|
Daily Duty Scan (Sheets) |
3,000 |
|
Roller Lifetime (Scans) |
100,000 |
|
Pad Lifetime (Scans) |
25,000 |
|
Action Button |
Scan、PDF、Custom |
|
Power Supply |
24 Vdc/ 0.75 A |
|
Interface |
USB 2.0 |
|
Net Weight |
3.98 Kgs (8.77 Lbs) |
|
Dimensions (W x D x H) |
418 x 326 x 101 mm (16.45" x 12.83" x 4") |
|
Protocol |
TWAIN Compliant |
|
OS |
Windows XP / Vista / 7 / 8 / 10 LINUX SANE for Systems Integrator. Please contact local sales. |
|
Hardware Requirements |
Pentium® IV 3.2 GHz processor or faster CPU DVD-ROM Drive One available USB Port (USB 2.0 recommended) 2 GB RAM (4 GB or higher recommended) 2 GB free HDD space (2 GB or larger recommended) |
