Epson A1 Printer, A1 Scanner, A1 Photocopy Machine

Epson SureColor SC-T3130M 24 inch Printer

Epson SureColor SC-T3130M 24”
Large Format Plotter

Epson A1 Printer, A1 Scanner, A1 Photocopy Machine
Impressive accuracy and sharpness at outstanding speeds
Compact and user-friendly design
Multi-function capabilities with in-built scanner
High productivity with seamless scan-to-print function
Print width of up to 24 inch

Precicioncore Printhead Technology
Impressive Print Speeds
A1 printouts in 34 seconds.
Nozzle Verification Technology
Print without interruptions with the advanced built-in Nozzle Verification Technology (NVT).

Compact, User-friendly Design
Control at Your Fingertips
A 4.3 inch touch panel on T-series.
Small Footprint
Sleek and minimally designed, with a comfortable size that fits into tight workspaces effortlessly.

Trusted Productivity
Wireless Connectivity
T-series is integrated with Wi-Fi and Wi-Fi Direct.
Epson Cloud Solution PORT
A cloud-based solution for Epson end users.
Seamless Scan to Print
Scan and enlarge printouts in four steps.

Specifications
Brochure
Video

Printing	Print Head: PrecisionCore TFP Printhead Nozzle Configuration: 3,200 nozzles (800 nozzles x 4 channels x 1 head) Maximum Print Resolution: 2,400 x 1,200 dpi Minimum Ink Droplet Size: 4.0 pl Print Speed: CAD (A1): 34 seconds Line Accuracy: ±0.1% or ±0.26 mm Minimum Line Width: 0.07mm (PDF available only for files scanned by integrated scanner) (0.02mm (No stand included for SC-T3130M model.))
Paper Handling	Media Thickness: Roll: 0.05 mm to 0.21 mm, ASF/Cutsheet: 0.12 mm to 0.27 mm Side Margin: 3mm Auto-Sheet Feeder: A4 to A3 Maximum Roll Diameter / Weight: 2" core, Max 110 mm/3kg Paper Width: Roll: 329 mm - 610 mm Cutsheet: 210 mm - 610 mm Paper Capacity for ASF: 50 sheets plain paper / 5 sheets special media
Consumables	Black Ink Cartridge: 50ml: C13T40A100 80ml: C13T40B100 Cyan Ink Cartridge: 26ml: C13T40A200 50ml: C13T40B200 Magenta Ink Cartridge: 26ml: C13T40A300 50ml: C13T40B300 Yellow Ink Cartridge: 26ml: C13T40A400 50ml: C13T40B400 Maintenance Box: C13S210057 Auto Cutter Spare Blade: C13S210055
Printer Width	Printer Width: 24"
Electrical Specifications	Rated Voltage, Frequency and Current: AC 100 to 240V, 50/60Hz, 1.4AElectric Power Consumption:Operating: Approx. 24W Ready: Approx. 11W Sleep: Approx. 2.0W Power Off (Stand by): Approx. 0.2W
Warranty	Warranty: 3-years Warranty
Ink System	Ink Type: UltraChrome XD2 Pigment Ink Colours: Cyan, Magenta, Yellow, Black
Scanning	Sensor: CIS Light Source: RGB LED Optical Resolution: 600 dpi Scan Speed (200dpi): 1.5 ips (Colour) / 4.5 ips (Mono) Minimum Document Size: 148 mm x 148 mm Maximum Document Size: 609.6 mm x 2,720 mm Scan Formats: JPEG, PDF (Single Page), PDF (Multi Page), PDF/A (Single/Multi), TIFF Scan to Destination: Scan to Network Folder, Scan to FTP Server, Scan to Email, Scan to Memory Device
Copy	Copy Speed: 77 sec (Colour) / 60 sec (Mono) Scaling: 25 to 400% Maximum Copies: 99
Environmental Conditions	Temperature: Operating: 10°C to 35°C, Storage: -20°C to 40°C Humidity: Operating: 20 - 80% (No Condensation), Storage: 5 - 85% (No Condensation) Sound Pressure: Operating: Approx. 47dB(A) Sound Power: Operating: Approx. 6.6B(A)

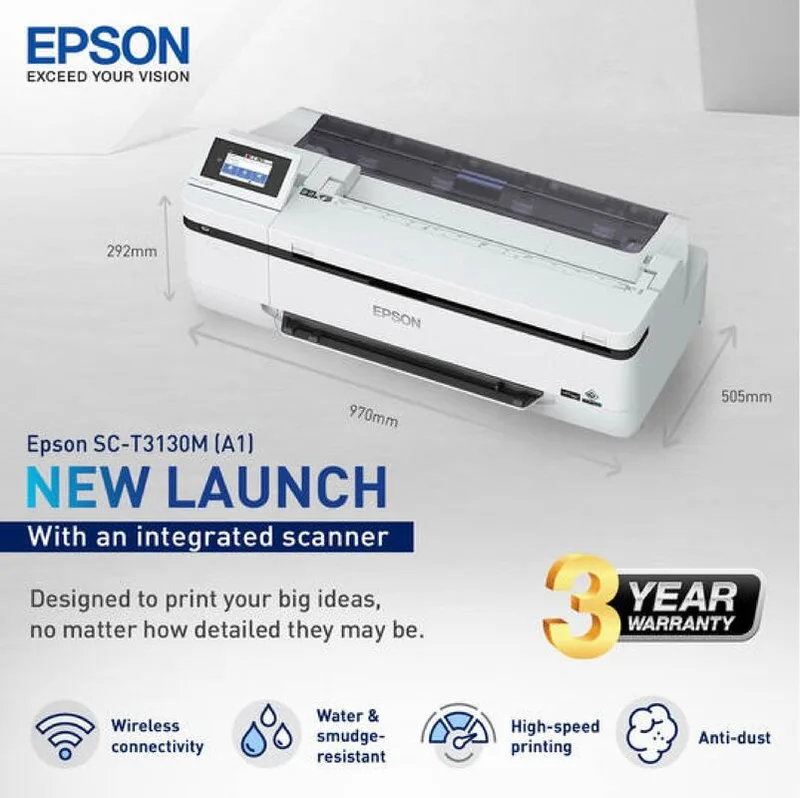

Printer Dimensions	Dimension with Stand (W x H x D): 970 x 974 x 696 mm Dimension without Stand (W x H x D): 970 x 292 x 505 mm Weight Without Stand: 33.4 kg
Options	Roll Feed Spindle (24"): C12C935701 Printer Stand (24"): C12C933151 Document Carrier Sheet (A1): C12C936101
Connectivity	Memory: 1GB + 8GB (For scanner data processing) Interface: USB 3.0, Ethernet (100BASE-TX/1000BASE-T), Wi-Fi (IEEE802.11b/g/n) USB Direct: PDF 1, TIFF, JPEG Printer Languages:* ESC/P raster, HP-GL/2HP RTL Wi-Fi Direct: Wi-Fi Direct (Simple AP) Control Panel: 4.3” Touch Screen
Operating Systems Requirements	Operating System: Windows XP SP3 or later / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 Mac OS X 10.6.8 or later
