Smart Whiteboard for Education & Business

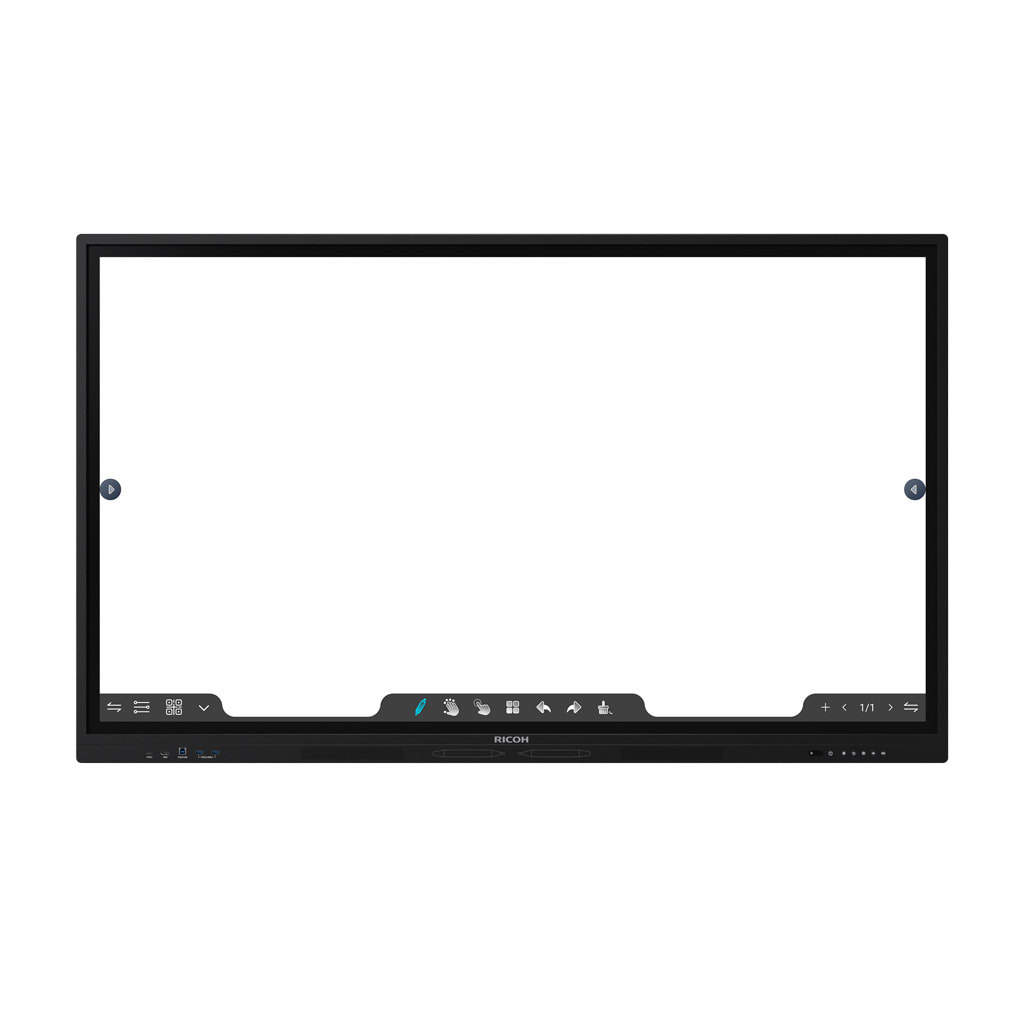

RICOH Interactive Whiteboard A8600

Features and Benefits

Interactive whiteboard

86" touchscreen
3,840 x 2,160 pixels
400 cd/m2 brightness
Plug and Play Android apps
Embedded with Android OS, you can use all your favourite apps. Many apps are preloaded and ready for use to save you time, such as the whiteboard and wireless presentation apps
Simple connectivity and usability
It’s easy to sync your device to the screen, simply choose how you connect – HDMI, USB or USB Type-C.
Useful picture-in-picture function
A picture can speak a thousand words – so add an image to your whiteboard with the picture-in-picture function. This could be data, charts or stock shots that help get your point across.
Effective split-screen presentation
Using two screens is a standard most expect in work and presentations. Run two different apps or images side by side with the interactive whiteboard and get more from your meetings.

Specification
Brochure
Video

Configuration	Touch pen 2 pcs Read this first and Quick Guide In English, French, German, Spanish, Brazilian Portuguese Remote controller Yes Batteries for remote controller 2 x AAA batteries Power cord Yes USB-C cable Yes—2 m USB A-B cable Yes—3 m HDMI 2.0 cable Yes—3 m Plastic clamp 2 pcs
Physical Dimension	Physical dimensions (WxDxH)—mainframe 1,968 x 88 x 1,173 mm Weight—mainframe 73 kg
Optical and audio systems	Panel size 86 inches Backlight D-LED Effective display area 1,895.04 x 1,065.96 mm Resolution 3,840 x 2,160 pixels Colour reproduction 1.07 billion colours (10-bit) Brightness 400 cd/m2—typical Contrast 1200:1 Pixel pitch 0.4935 mm Response speed 8 ms Viewing angle HV 178 degrees Audio Rear 1 x 3.5 mm mic and other audio source in 1 x 3.5 mm audio out 1 x SPDIF Video *Rear* 2 x HDMI 2.0 in 1 x DisplayPort in 1 x VGA in 1 x USB 2.0 Type A 2 x USB 3.0 Type A 1 x HDMI 2.0 out *Front* 1 x HDMI 2.0 in
Touch Systems	Touch technology Infrared touch frame Touch points 20 Touch resolution 32,768 x 32,768—interpolated Touch output HID Standard, USB 2.0 full speed Touch panel cover glass 3.2 mm toughened glass
Connectivity	Interfaces - standard Rear 2 x HDMI 2.0 in 1 x DisplayPort in 1 x VGA in 1 x Audio in 2 x LAN—10/1000 Base-T, 100 Base-TX (to OPS), 10/1000 Base-T (to Android) 1 x USB 2.0 Type A 2 x USB 3.0 Type A 1 x USB 3.0 Type B—touch interface 1 x Mic in 1 x SPDIF in 1 x HDMI 2.0 out 1 x Audio out 1 x RS-232 in *Front* 1 x USB Type C 2 x USB 3.0 Type A 1 x USB 3.0 Type B—touch interface for HDMI 1 x HDMI 2.0 in—HDCP compliant Interfaces - optional With Ricoh IWB Controller OP-5 Type 2 10Base-T/100Base-Tx/1000Base-T Bluetooth—embedded IEEE 802.11 ac/a/b/g/n/ax 1 x HDMI output 2 x USB 3.0 Type A 2 x USB 2.0 Type A 1 x USB Type C 1 x 3.5 mm mic jack 1 x 3.5 mm headphone jack
Supported operating environments	Windows *System* Windows 10 Professional, 64-bit This device meets the system requirements to install Windows 11. Multi-touch* Windows 7, 8, 10 *Single-touch* Windows XP Macintosh Single-touch Mac OS X Supported languages On-screen display Japanese, English, French, German, Italian, Spanish, Dutch, Danish, Russian, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese, Czech, Romanian, Greek, Turkish, Simplified Chinese
Environmental features	Power source 100–240 V, 50–60 Hz Power consumption Without optional controller 460 W—max brightness 340 W—typical 0.5 W or less—standby Environmental standards REACH ErP Lot 5 EU battery (2006/66/EC) EU packaging (94/62/EC) WEEE RoHS EN63000 (CE marking) Safety standards EN62368-1 (CE marking) EN62368-1 (TUV) IEC60950-1 / IEC62368-1 (CB attestation) TH-A (Thailand) Electromagnetic Compatibility (EMC) standards EN55035,EN55032,EN61000-3-2,EN61000-3-3 (CE marking) AS / NZS CISPR32 (C-Tick) (Australia / NZ) HK EMC (Hong Kong) EN62311 (CE marking) Wireless LAN standards EN300328 / EN301893 (CE marking) EN301489-1 / EN301489-17 (CE marking) EN300328 / EN301893 (RCM) (Australia / NZ) EN301489-1 / EN301489-17 (RCM) (Australia / NZ) Operating environment Temperature 0–32ºC—operating -10–50ºC—storage Humidity 20–80%—operating 15–80%—storage
