Document Scanner Flatbed and Multi Feed Paper

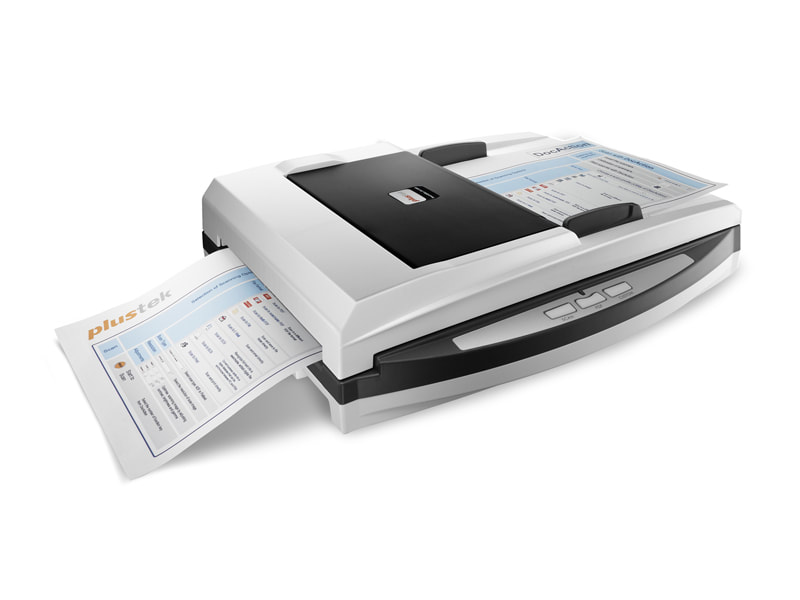

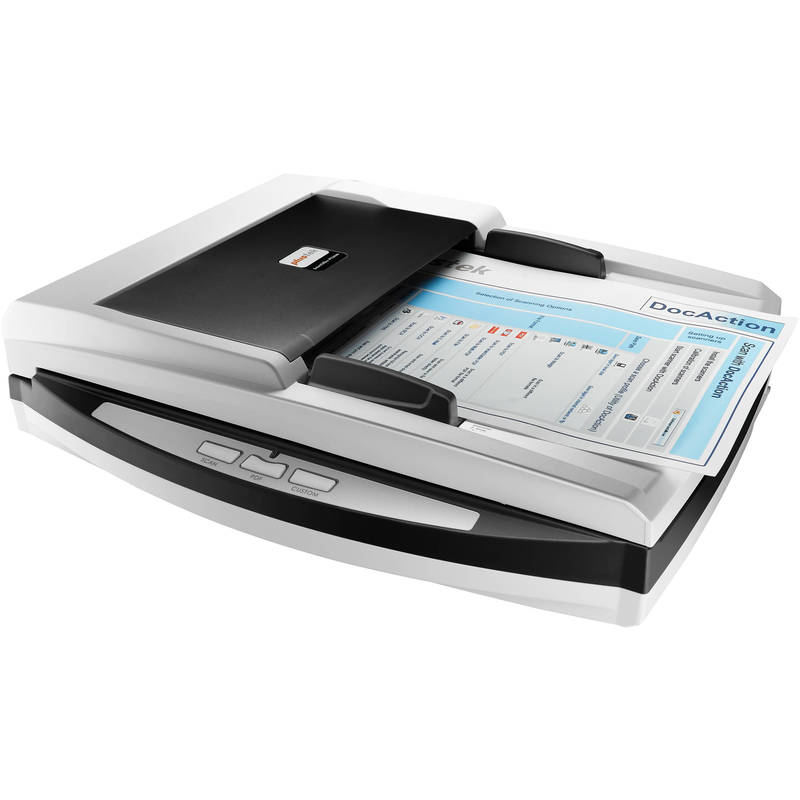

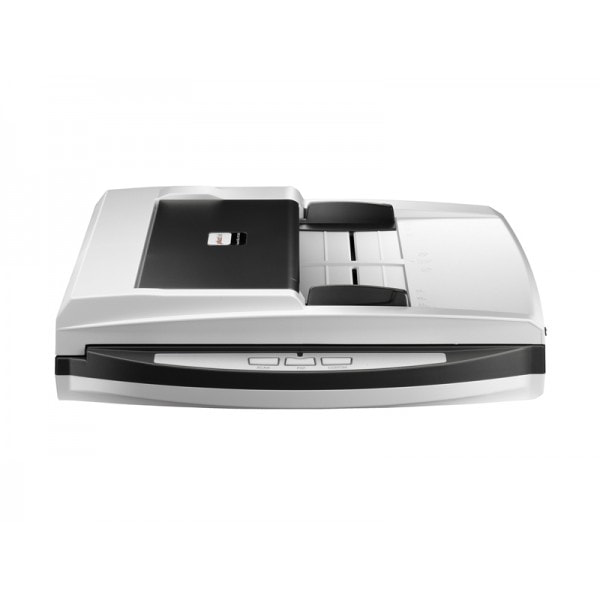

Plustek SmartOffice PN2040
Features and Benefits
Document Scanner Flatbed and Multi Feed Paper Plustek SmartOffice PN2040 is a duplex ADF and flatbed scanner, which ADF speed is 20ppm/40ipm with 200dpi in grayscale. The PN2040 makes document scanning easy and efficient, in addition, it is an easy to use network-based scanning solution for sharing documents in today's multi-location and global environment. Furthermore, you can use the network to connect when you install our driver package on your PC.
- Scan to any pc to your network
- Automatic document detection for ADF/Flatbed
- Scan and save documents into popular digital formats
- Environmentally Responsible and Energy-Saving
- Auto Threshold
- Auto Rotate
- Auto Crop & Deskew
- Color Dropout
- Blank Page Removal
Specification
- General
|
Image Sensor |
CIS x 2 |
|
Optical Resolution |
600 dpi |
|
Hardware Resolution |
Flatbed: 600 x 1200 dpi ADF: 600 x 600 dpi |
|
Scan Modes |
Color: Input 48-bit, Output 24-bit Grayscale: Input 16-bit, Output 8-bit Black & White: 1-bit |
|
ADF Capacity |
50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2"). Note: Maximum ADF capacity varies, depending upon paper weight. |
|
Scanning Speed (ADF) |
9 ppm/ 10 ipm (Color mode, 200 dpi, A4 Portrait) 20 ppm/ 40 ipm (Grayscale mode, 200 dpi, A4 Portrait) 20 ppm/ 40 ipm (B&W mode, 200 dpi, A4 Portrait) Note: Results may vary depending upon your scanning application, computer processor and system memory. |
|
Scanning Area (W x L) |
Flatbed: Max. 216 x 297 mm (8.5" x 11.69") Min. 12.7 x 12.7 mm (0.5" x 0.5") ADF: Max. 216 x 356 mm (8.5" x 14") Min. 13.2 x 13.2 mm (0.52" x 0.52") |
|
Acceptable Paper Sizes (W x L) |
Flatbed: Max. 216 x 297 mm (8.5” x 11.69”) Min. 12.7 x 12.7 mm (0.5” x 0.5”) ADF: Max. 220 x 356 mm (8.66” x 14”) Min. 90 x 50.8 mm (3.55” x 2”) |
|
Acceptable Paper Weight (Thickness) |
50 to 120 g/㎡ (14 to 32 Lbs) |
|
Daily Duty Scan (Sheets) |
1,500 |
|
Roller Lifetime (Scans) |
100,000 |
|
Pad Lifetime (Scans) |
25,000 |
|
Action Button |
Scan, PDF, Custom |
|
Power Supply |
24 Vdc/ 0.75 A |
|
Interface |
USB 2.0 / RJ45 LAN |
|
Net Weight |
3.78 Kgs (8.33 Lbs) |
|
Dimensions (W x D x H) |
418 x 326 x 101 mm (16.45" x 12.83" x 4") |
|
Protocol |
TWAIN Compliant |
|
OS |
Windows XP / Vista / 7 / 8 / 10 LINUX SANE for Systems Integrator. Please contact local sales. |
|
Hardware Requirements |
Pentium® IV 2.4 GHz processor (Pentium IV 3.0 GHz processor recommended) DVD-ROM Drive One available USB Port (USB 2.0 recommended) 1GB RAM (2 GB or higher recommended) 2GB free HDD space (3GB or larger recommended) |
