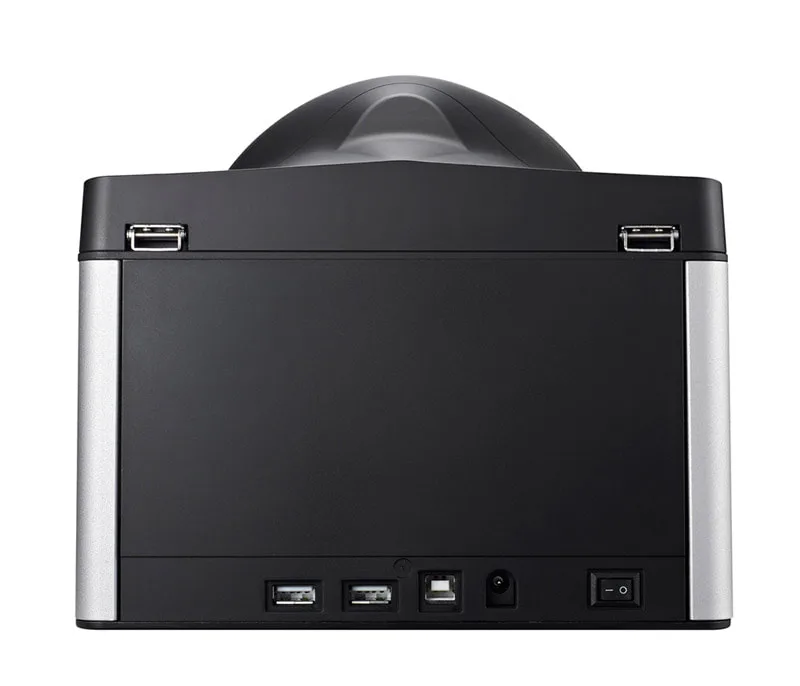

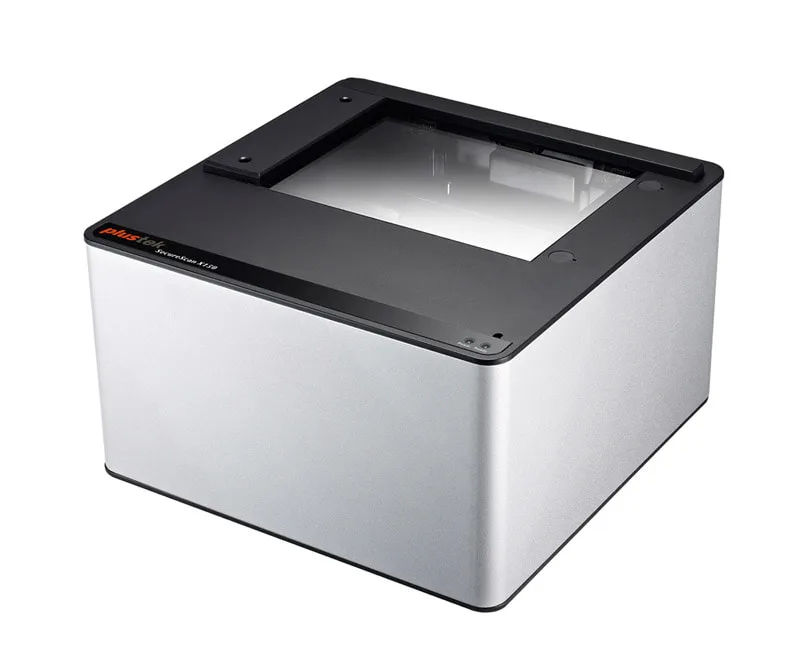

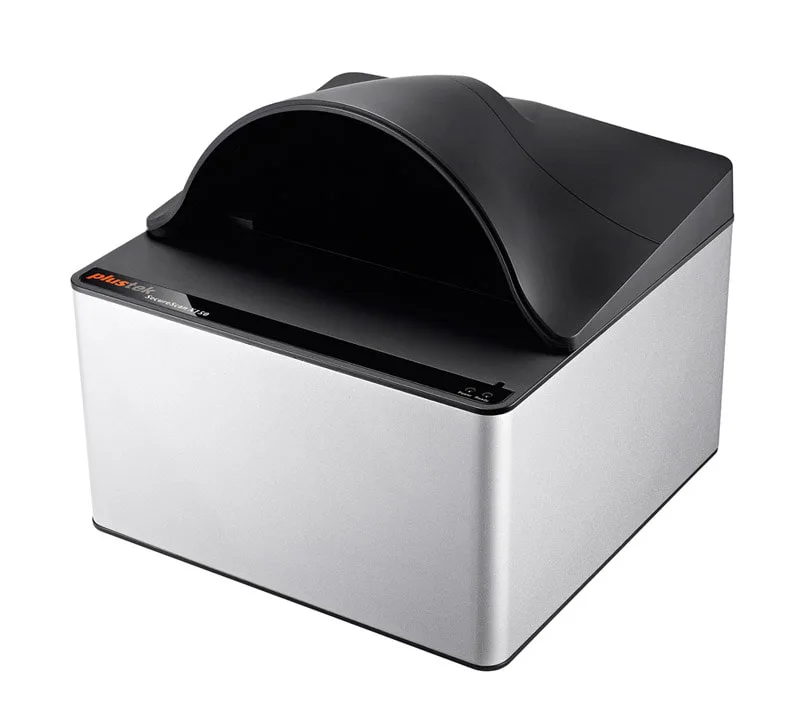

Passport Reader UV Scanner
Plustek SecureScan X150
Features and Benefits
Passport Reader UV Scanner Plustek SecureScan X150 utilizes an image sensor with Visible, UV and IR illuminations, for quick image capturing, OCR text reading, and visual security features authentication, of passports, ID cards, such as drivers licenses, health insurance cards.
- Completely compliant with ICAO Doc 9303 standard
- Capable of reading Machine Readable Zone, and Visual Zone data
- 3 light sources: Visible, Infrared (IR) and Ultraviolet (UV)
- Auto-Detect of document type, document size, and 2 seconds Quick-Scan with OCR
- Easy to integrate Identity Management Systems
- Scalability of extra devices like AFIS & facial recognition via USB hub
Specification
- General
|
Image Sensor |
CMOS |
|
Light Source |
White LED / IR LED / UV LED |
|
Optical Resolution |
5 Megapixels |
|
Focus |
Fixed |
|
Scan Modes |
Color: 24-bit Input; 24-bit Output IR: 24-bit Input; 8-bit Output UV: 24-bit Input; 24-bit Output |
|
Scanning Speed |
Approx. 2 sec (Color Mode, Full Page passport image capture) |
|
Scanning Area (W x L) |
Maximum: 127 x 95 mm (5" x 3.74") |
|
Acceptable Paper Sizes (W x L) |
Maximum: 125 x 88 mm (4.92" x 3.46") |
|
Action Button |
Dual Auto Detect Sensors |
|
Power Supply |
AC Power: 24V / 0.75A |
|
Interface |
USB 2.0 USB 2.0 Port x 2 (Extension) |
|
Net Weight |
1.7 Kgs (3.78 Lbs) |
|
Dimensions (W x D x H) |
Without Cover: 200 x 200 x 119 mm (7.87" x 7.87" x 4.69") With Cover: 200 x 200 x 190 mm (7.87" x 7.87" x 7.48") |
|
OS |
Windows 7 / 8 / 8.1 / 10 |
|
Hardware Requirements |
Pentium® IV 2.4 GHz processor DVD-ROM Drive One available USB 2.0 Port 1GB RAM (2GB or higher recommended) 1GB free HDD space (2GB or larger recommended) |
