Projector type: Handy
What's included:

• Cables: RGB cable
• AC adaptor: Included
• Lens cap: Included
• Carrier bag: Included
• Remote control: Standard
• Battery for remote control: CR2025 x 1
• Quick start guide: Included
• CD ROM: User guide

​Physical dimensions (WxDxH)—mainframe: 112.5 x 50.5 x 105 mm
Weight—mainframe: 0.45 kg

Projection system: DLP
Contrast:

• 600:1—Native
• 40,000:1—High Contrast Mode

Aspect ratio: 16:10
Brightness: 600 lumens
Resolution: 1,280 x 800 pixels (WXGA)
Light source: RGB LED
Light source life: 20,000h/30,000h (Eco)
Focus method: Manual
Colour reproduction: 24-bit, 16,700,000 colours
Projection size: 50–100 inches
Projection distance: 0.43–3.44 m
Projection ratio: 0.8
Keystone correction: Automatic—vertical +/- 40 degrees
Projector modes: Standard, Rear
Input signals:
Input signal

• NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43, 50 Hz, 60 Hz

Analogue RGB frequency

• 15–91 kHz—horizontal
• 24–120 Hz, 120 Hz for 3D—vertical

Analogue RGB signal
Real

• WXGA (1,280 x 800 pixels), XGA (1,024 x 768 pixels), SVGA (800 x 600), VGA (640 x 480)

Compression

• UXGA (1,600 x 1,200 pixels), SXGA (1,280 x 1,024 pixels)

3D support: DLP Link
Speaker: 1.5 W, mono
Other supported features: AV mute (blank), Resize (magnify), Wall Colour Mode, Signage Mode, 360 degree projection, User logo application through firmware upgrade

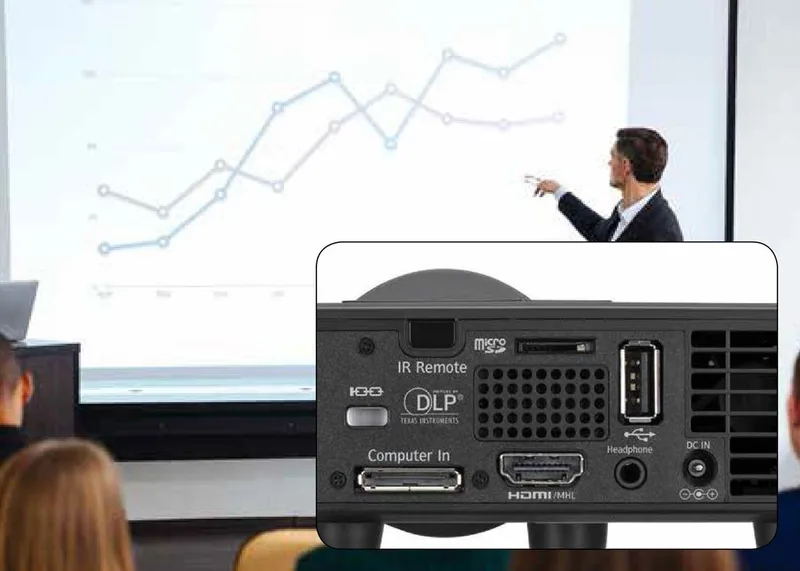

Interfaces - standard:

• Computer IN: Mini D-SUB 15 pin via adapter cable
• Phone OUT: Mini jack 3.5 mm x 1
• SD card port: Micro SD x 1—read only
• USB port: USB-A x 1
• Digital terminal: HDMI x 1
• Wireless LAN connectivity: Available with HDMI Wi-Fi

Network capable: Yes

Kensington lock: Yes
Password protection of device: Yes

Supported languages:

• Menu languages : Japanese, English, German, French, Italian, Spanish, Polish, Swedish, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Dutch, Greek
• Quick start guide: English, French, Spanish, Portuguese, German, Traditional Chinese, Simplified Chinese
• User guide: English—on CD ROM

Power source: 100—240 V, 50/60 Hz
Power consumption:

• 76 W or less—Full Mode
• 0.5 W or less—Standby Mode
• 65 W, 19 V, 3.42 Amps—DC output

Sound power level:

• 34 dB or less—Full Mode
• 24 dB or less—Eco Mode

Environmental standards:

• Restriction of Hazardous Substances (RoHS)
• REACH
• EuP (Lot 6)
• Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators
• Directive 2005/20/EC of the European Parliament and of the Council of 9 March 2005
• Directive 94/62/EC on packaging and packaging waste of 20 December 1994
• WEEE
• Taiwan Battery Regulation

Green labels: Taiwan Green Mark
Safety standards:

• EN60950-1 (TUV Mark)
• IEC60950-1 (PSB, CB attestation)
• BIS (India)

Electromagnetic Compatibility (EMC) standards:

• EN55022
• EN55024 (CE Marking)
• EN61000-3-2
• EN61000-3-3
• AS/NZS CISPR22 (RCM)
• HKG (EMC)

Operating environment:

• 5–40ºC temperature
• 80% relative humidity

Other environmental features: Eco Mode

Projection Calculator:

• Use this convenient tool to estimate the throw distance for selected Ricoh projectors. It is not intended to provide exact measurements.
• Please click the link to visit the Projection Calculator.
